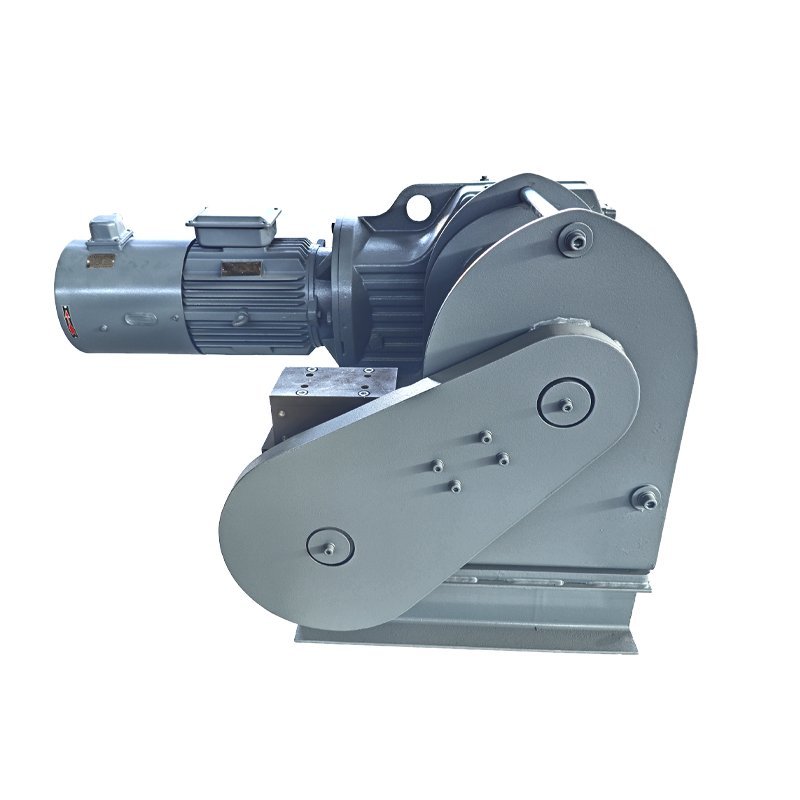

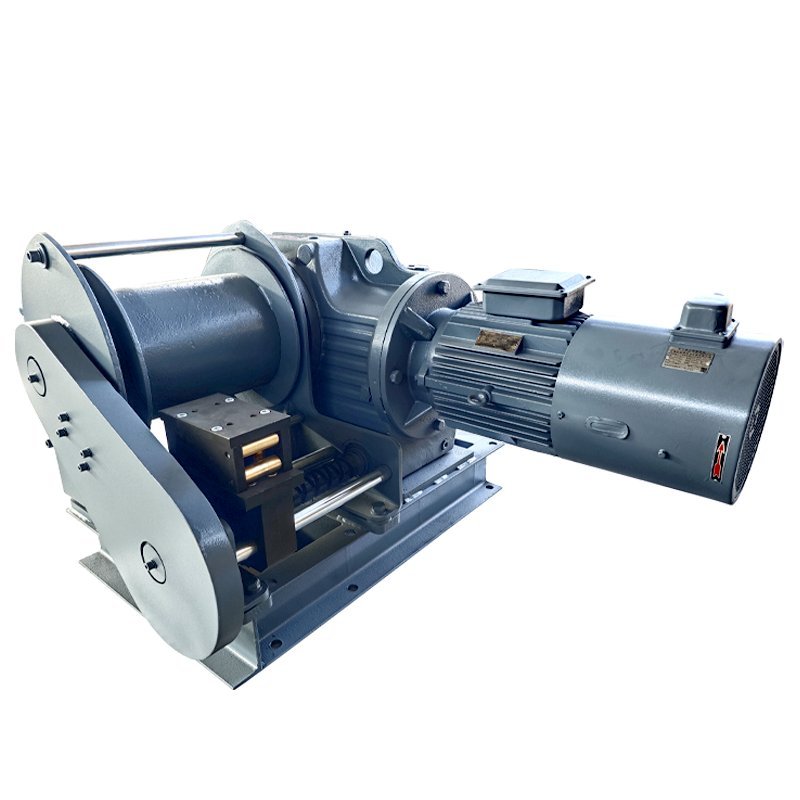

This 3-ton industrial winch is a high-performance, high-efficiency device suitable for material handling and lifting operations in various industrial scenarios. It is equipped with a 380V 6-speed motor and utilizes a variable frequency braking motor for smooth and efficient operation.

  1. Equipped with a variable frequency braking motor, the device improves operational efficiency and stability, reduces failure rates, extends service life, and lowers maintenance costs.
  2. Equipped with an independent cooling fan, the device ensures smooth and efficient operation, reduces energy consumption, and enhances work efficiency.
  3. Equipped with a turbine-type height limiter, this device enhances operational safety and convenience, reduces the likelihood of operational errors, and ensures the safety of personnel.
  4. Equipped with a reciprocating screw rope guide, this device organizes the rope neatly, effectively improving work efficiency and reducing confusion and errors during operation.
  5. Equipped with a hardened gear reducer in the gearbox, this device operates quietly and efficiently, providing a more comfortable working environment and reducing noise interference for operators.

Industrial Winch

  - 1
Model:3000 KGMotor power:5.5KWOutput speed:7.1-8m/minMotor reducer Rated output Torque:5700N.m
Reduction gear ratio:83:1Reducer output speed:8.7rp/minLifting weight:3000kgSelf-weight:600kg
Wire rope diameter:16mmDrum rope capacity:34m

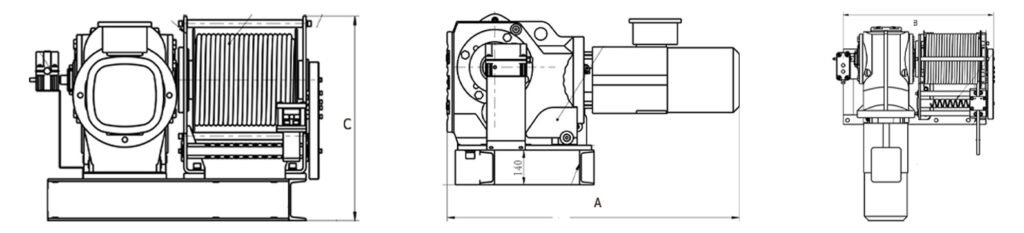

Model:3000 KGA(Length):1180mmB(Width):914mmC(Height):690mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
