Automatic pulling machine winch, 15 ton ropeway traction cable winch can be customised industrial winches

The traction hoist uses a reciprocating screw rod rope arranger, enabling fixed-position rope payout. It is equipped with frequency conversion control, allowing two hoists to work synchronously, suitable for pulling operations of steel wire ropes. Additionally, it features a knob-type variable speed remote controller for synchronized operation of the two hoists. Furthermore, the product includes overload limit function.

  1. Utilizing a reciprocating screw rod rope arranger design and fixed rope payout position design ensures precise and stable traction.
  2. By employing a variable frequency motor, precise speed adjustment and control are achieved, enhancing work efficiency and operational convenience.
  3. Equipped with a knob-type wireless remote controller, the operation is simple and convenient, enabling synchronized operation of two hoists and improving work efficiency.
  4. The product also features an overload limiter function, which automatically stops operation in case of overload, ensuring the safety of equipment and personnel.
Automatic pulling machine winch, 15 ton ropeway traction cable winch can be customised industrial winches - 1
Model:3500KGMotor power:7.5KWRated tension:3500KGRope diameter:12mmDrum speed:18.75 rpmAverage rope speed:15m/min(Variable frequency speed control)
Self-weight:507.3kg
Model:120KGA(Length)540mmB(Width)550mmC(Height)350mm

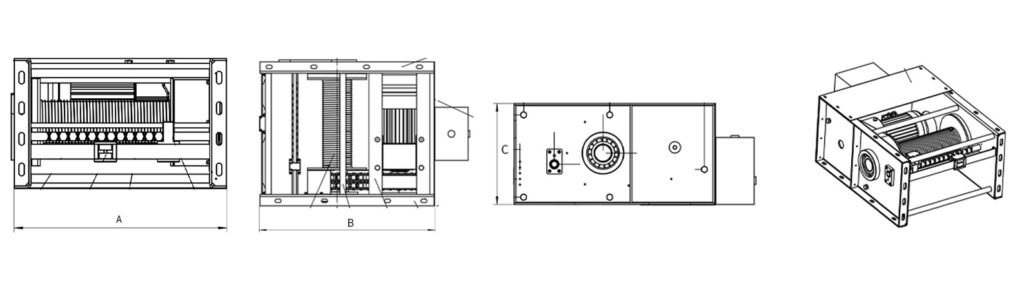

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
