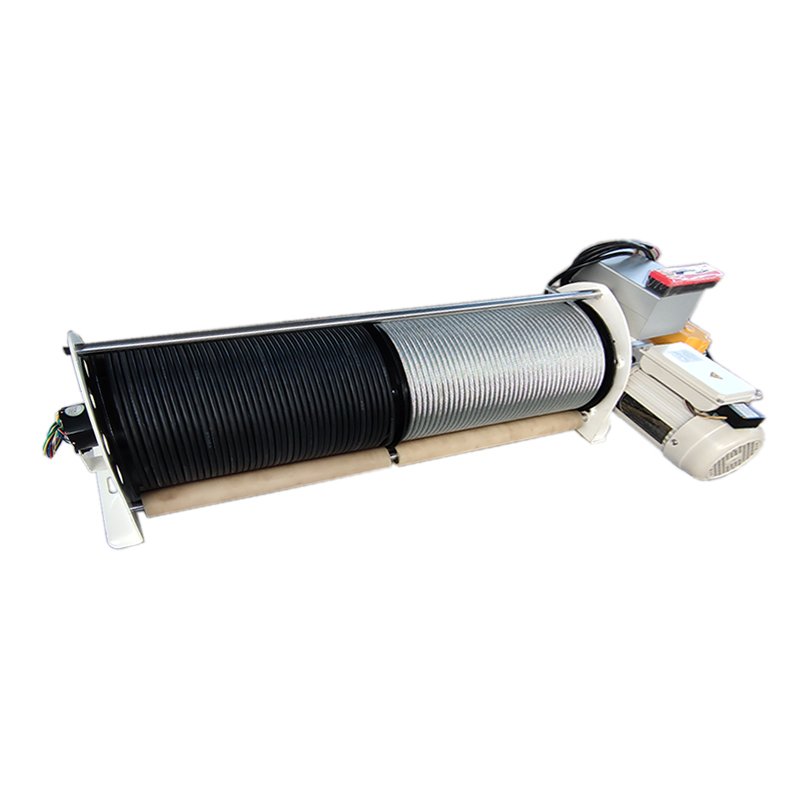

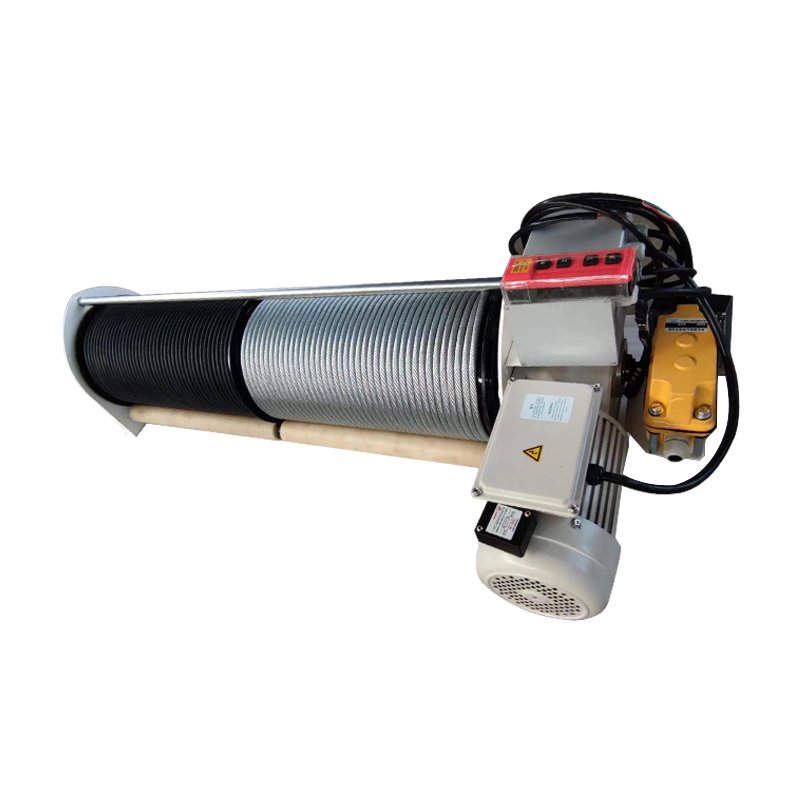

Cable winch 1T mall atrium traction lifting overhead light suspension custom load rope long speed multi-function winch

The integrated cable winch for shopping mall atriums is a highly efficient, convenient, and practical hanging device designed for decorative hanging in malls, supermarkets, exhibition halls, and other public spaces. It can be customized according to the cable diameter and length to suit different application scenarios.

  1. It adopts an integrated design of steel wire rope and cable, integrating multiple functions such as power management, cable storage, and safety protection, and can provide power to the lifted object while hanging and lifting.
  2. It is one of the essential equipment in public places such as shopping malls and supermarkets.
  3. Provided efficient and convenient solutions for the transportation of personnel and goods.
Cable winch 1T mall atrium traction lifting overhead light suspension custom load rope long speed multi-function winch - 1
Model: 500 KGMotor power: 0.75kwGearbox transmission ratio: 240:1Gearbox output speed: 6rp/minRope output speed: 4.5m/minRated output torque of motor reducer: 950N m
Weight increase: 500kgSelf-weight: 115kgRoll diameter: 245mmSteel wire rope and cable diameter: 10mmRoll rope capacity: 30m
Model: 500KGA(Length) 1369mmB(Width) 508mmC(Height) 373mm
ModelMotor powerRated PullCable diameterWire rope lengthDrum speedAverage rope speedVoltage (single item)
600KG0.75kw600kg8mm60m7rpm4.22m/min220v50Hz

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
