10T Dual-Drum Electric Cable Winch

Heavy Duty Electric Cable Winch – Dual-Drum Design (500-10,000kg Capacity)

Our Heavy Duty Electric Cable Winch sets a new standard in cable management efficiency. Featuring a specialized dual-drum structure, this electrical cable pulling winch enables the simultaneous reeling of coaxial variable-diameter cables, solving the challenges of multi-cable operations in mining, ports, and automation sectors.

Whether you require a robust electric cable laying winch for underground operations or a precision system for shore power, this unit delivers consistent performance under loads ranging from 500kg to 10,000kg.

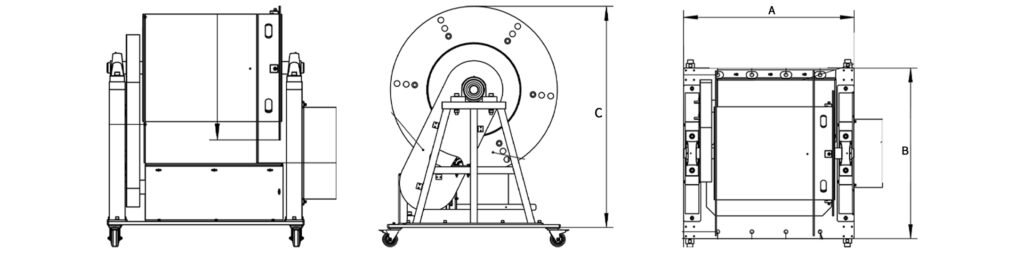

2D diagrams clearly illustrate the equipment’s layout and core structure.

Heavy Duty Electric Cable Winch – Dual-Drum Design (500-10,000kg Capacity) - 1

Key Features & Advantages

Innovative Dual-Drum System: Unlike a standard electric cable winch, our unique dual-drum design allows for the synchronous winding of coaxial cables with different diameters, significantly improving operational efficiency in complex environments. This makes it the ideal dual cable electric winch solution for specialized logistics.
High-Efficiency K-Series Drive: Powered by a premium K-Series gear motor, the winch operates quietly with low energy consumption, ensuring suitability for long-term continuous use in AC electric cable winches applications (compatible with single-phase or three-phase systems).
IP56 Superior Protection: Built to withstand harsh elements, the electrical system is housed in an IP56-rated stainless steel control box, providing excellent dust and water resistance.
Enhanced Safety & Durability: A robust stainless steel protective cover shields the gear motor, extending the equipment's lifespan and ensuring safety during heavy-duty operation.

Technical Specifications

Feature	Specification
Product Type	Electric Cable Winch / Hoist
Load Capacity	500kg - 10,000kg (Customizable)
Drum Configuration	Dual-drum (Coaxial variable-diameter)
Power Source	Single-phase / Three-phase AC Power
Protection Class	IP56 (Stainless Steel Control Box)
Applications	Mining, Underground Ops, Port Shore Power, Industrial Automation

The specifications allow users to quickly understand the performance range and configuration features of the device.

Model: 10KN	Rated Pull: 10KN	Pipe Diameter: 21 mm	Pipe Length: 410 m + 176 mm (Outer Diameter: 48 mm)	Motor Power: 7.5 kW	Drum Speed: 6.3 rpm
Average Rope Speed: 8–16 m/min (Adjustable)	Equipment Weight: 1400 kg

Model	A(Length)	B(Width)	C(Height)
10KN	1500mm	1500mm	1922mm

Customization & Service

As a professional electric cable winch manufacturer, we understand that every project has unique requirements. We offer full customization on cable reeling speed, rope length, and operating modes to fit your specific site conditions. If you are looking for a reliable electric cable winch supplier that guarantees quality and durability, contact our engineering team today.
