Direct axis servo winches servo system winches with screw rope guide meter encoder can be customised.

product category:Products

Share

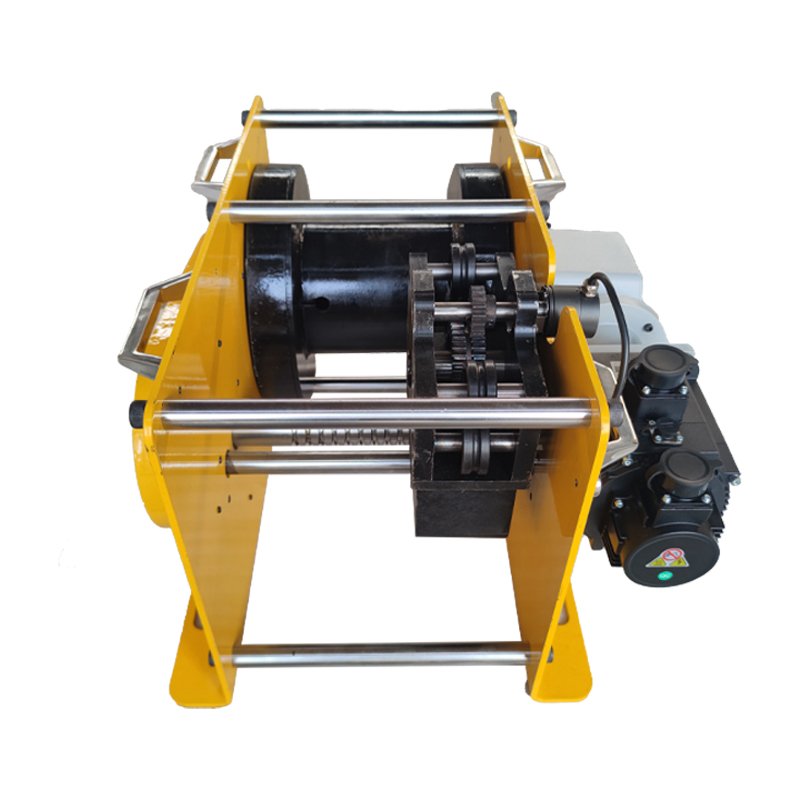

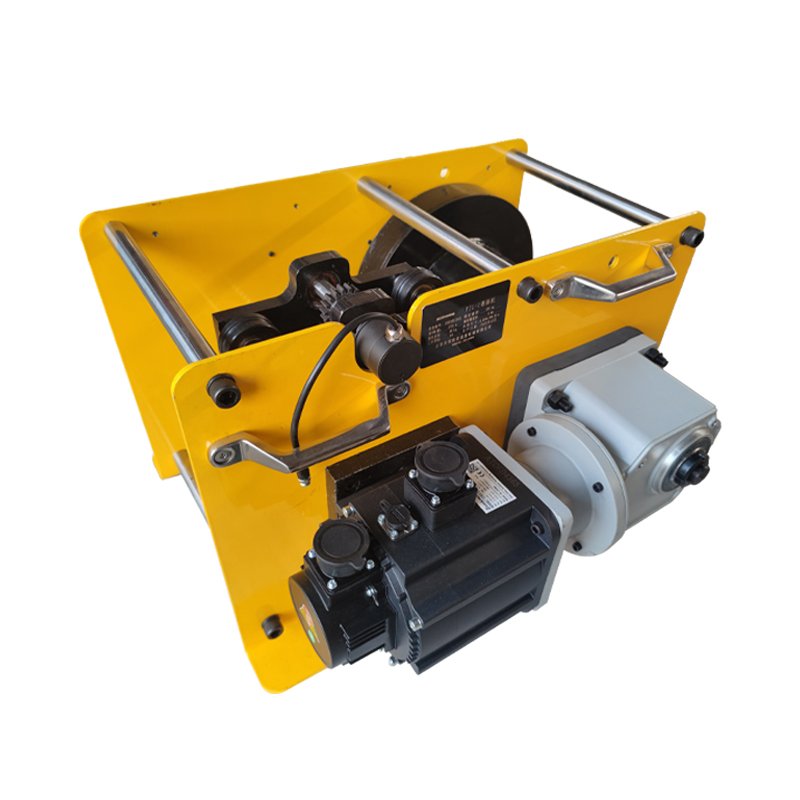

This servo winch is equipped with a meter counter encoder, enabling precise control of motor speed and position, thereby significantly enhancing the operating accuracy and stability of the equipment.

Design advantages:

  1. Right-angle shaft motor drive for efficient and quiet operation.

  2. Integrated meter counter encoder supporting automated control for easier operation.

  3. Equipped with a screw-type rope guider to ensure neat and orderly wire rope arrangement.

Inquire Now contact us

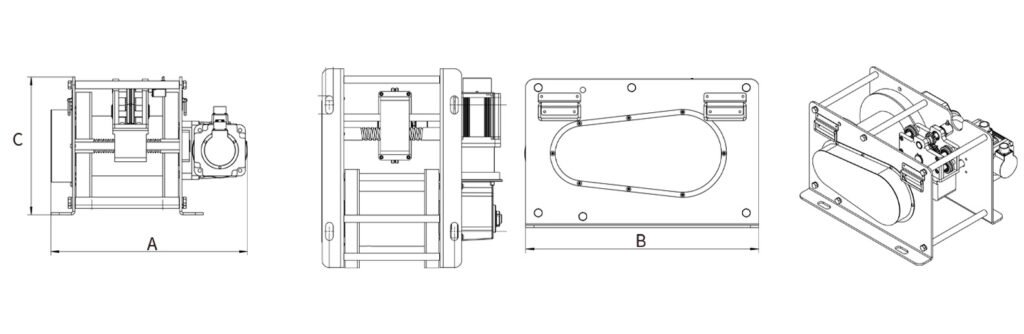

A two-dimensional drawing clearly presents the equipment’s layout and core structure.

Direct axis servo winches servo system winches with screw rope guide meter encoder can be customised. - 1

The parameters provide a quick understanding of the equipment’s performance range and configuration features.

Model：120KGMotor power：0.85KWRated tension：120KGRope Diameter：4mmReel speed：37.5 rpmAverage rope speed：22.15m/min
length of rope：230m
Model：120KGA（Length）500mmB（Width）550mmC（Height）350mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
