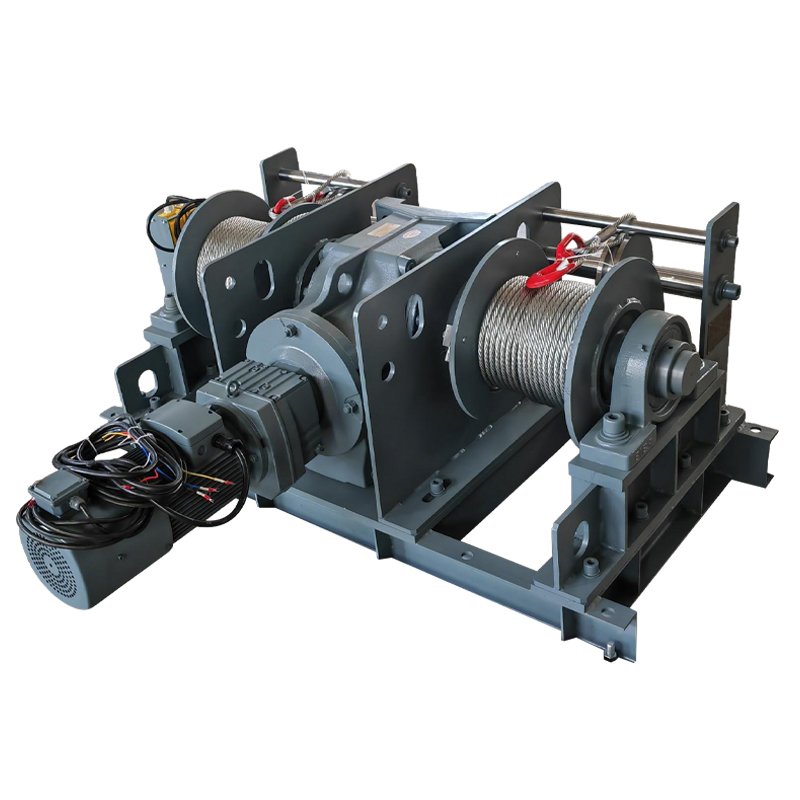

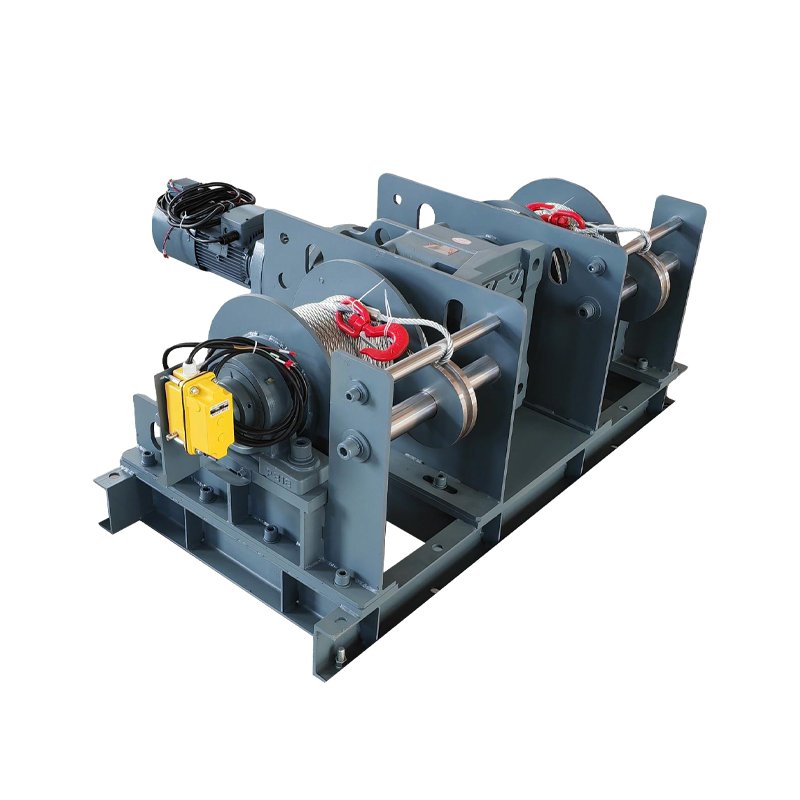

Built for the toughest industrial environments, our dual-drum industrial electric winch delivers exceptional heavy duty electric winch performance with high efficiency electric winch operation. Powered by a single robust geared motor driving both drums synchronously, this high quality double drum electric winch ensures perfectly balanced rope payout and retrieval—eliminating tension differences and guaranteeing smooth, stable lifting even under extreme loads from 500kg to 20,000kg.
Compatible with 220–380V single-phase or three-phase power systems, the 3 phase electric winch design features precision grooved drums and intelligent rope-guide rollers for neat, layered electric cable winch spooling that minimizes wear and maintenance. A mechanical limiter provides flexible upper and lower limit settings, while the compact, reliable structure makes installation and service straightforward in confined mining shafts, construction sites, or rescue operations.

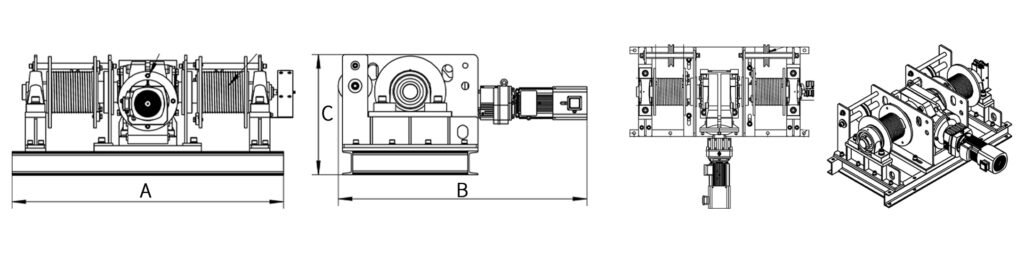

A two-dimensional drawing clearly presents the equipment’s layout and core structure.
Key Features & Benefits
Synchronous Dual-Drum Drive Single-motor reduction system powers both drums simultaneously for true multi purpose electric winch capability in double-rope applications—no slippage, no imbalance.
Intelligent Rope Management Grooved drum design plus rope-guide rollers deliver automatic, orderly winding and smooth layer transitions on this electric cable winch, reducing downtime and extending rope life.
Enhanced Safety & Control Mechanical limiter with adjustable upper/lower stops works seamlessly with electric winch with brake functionality for reliable overload and position protection.
High Capacity & Efficiency Built as a true heavy duty large capacity electric winch with proven performance up to 20 tons, optimized for high efficiency electric winch energy use and minimal heat generation.
Compact Industrial Design Organized layout and robust construction make this industrial electric winch ideal for space-constrained underground mining, construction cranes, and electric recovery winch rescue systems.
Extensive Customization Fully configurable reeling speed, rope length, drum diameter, and operation mode to meet exact project requirements.
Technical Specifications
Parameter
Specification
Load Capacity
500kg – 20,000kg (customizable up to 20 tons)
Rated Voltage
220–380V AC, single-phase or three-phase
Drive System
Single geared motor with synchronous dual-drum drive
Drum Type
Dual grooved drums with rope-guide rollers
Rope Spooling
Automatic orderly arrangement, layered winding
Safety Features
Mechanical limiter with adjustable upper/lower limits, integrated brake
Power Compatibility
Single-phase or three-phase 220–380V
Control Options
Pendant, remote, or centralized control panel
Noise Level
Low operational noise suitable for underground work
Environmental adaptations for harsh mining or outdoor construction conditions
Control system integration for fleet synchronization
Our technical team works directly with mining engineers, construction project managers, and rescue equipment specifiers to deliver fully validated, turnkey solutions.
Why Choose Our Industrial Winches?
Proven durability in extreme mining, construction, and rescue environments worldwide
Superior high efficiency electric winch design reduces operating costs and downtime
Rapid engineering support with detailed drawings and fast prototyping
Comprehensive documentation, spare parts availability, and global after-sales service
Ready to upgrade your heavy lifting operations? Contact our industrial specialists today for technical consultation, customized quotations, and site-specific recommendations. We respond within 24 hours with engineered solutions tailored to your load, environment, and synchronization needs.
Frequently Asked Questions (FAQ)
1. How does the synchronous dual-drum design benefit mining and underground operations? The single-motor drive ensures both drums operate at identical speeds, preventing rope tension differences and enabling safe, balanced double-rope lifting—critical for stable performance in confined shafts and tunnels with this high quality double drum electric winch.
2. Can this heavy duty electric winch handle 20-ton loads in harsh construction environments? Yes, our heavy duty large capacity electric winch is rated up to 20,000kg and built with robust components and IP55+ protection to withstand dust, moisture, and shock common on construction sites while maintaining high efficiency electric winch operation.
3. What safety features protect operators during rescue and recovery operations? The mechanical limiter provides fully adjustable upper and lower limits, combined with reliable electric winch with brake functionality for instant load holding—making this electric recovery winch exceptionally safe for emergency extractions and controlled lowering.
4. Is the winch compatible with three-phase industrial power and easy to install in tight spaces? Absolutely—it supports 220–380V three-phase power for maximum efficiency and features a compact electric winch layout that simplifies installation in underground workings, crane systems, or mobile rescue units.
5. How customizable is this multi-purpose industrial winch for specific project requirements? Extensively—reeling speed, rope length and diameter, drum configuration, mounting style, and control method can all be tailored, turning this multi purpose electric winch into a perfect fit for unique mining, construction, or rescue applications. Contact us for rapid customization support.
