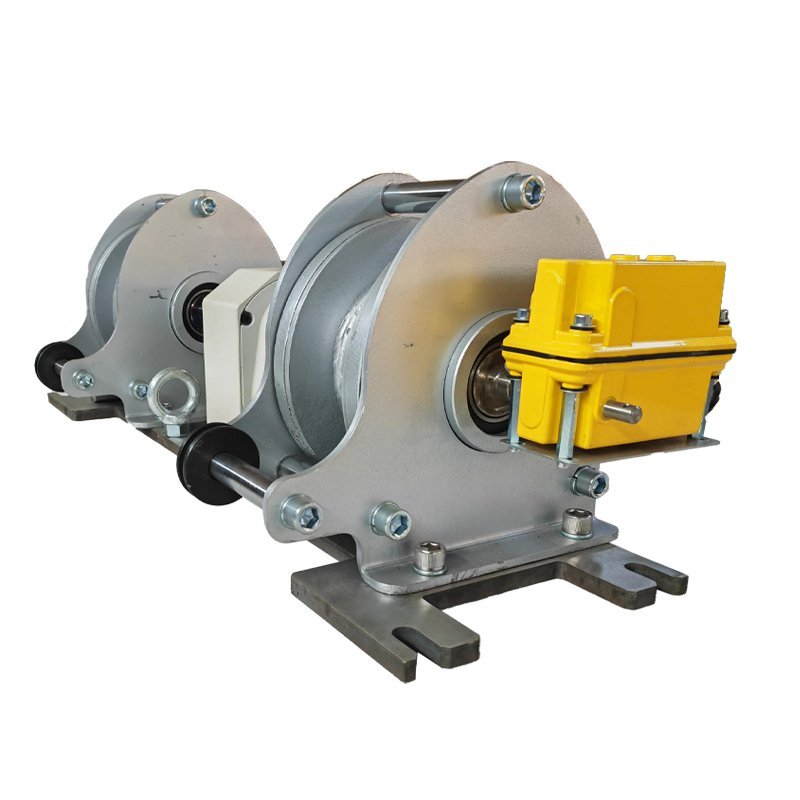

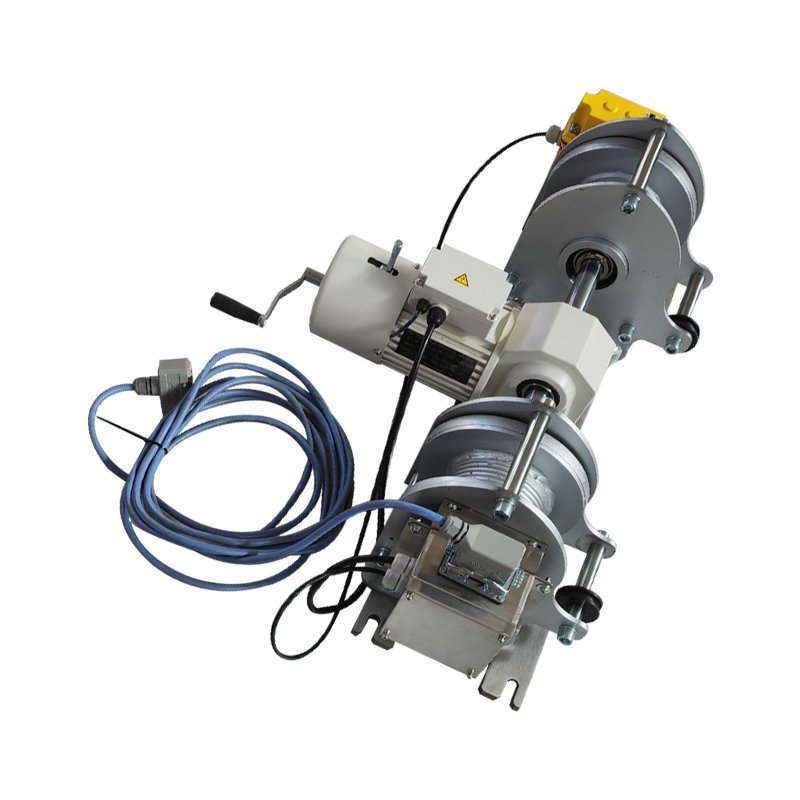

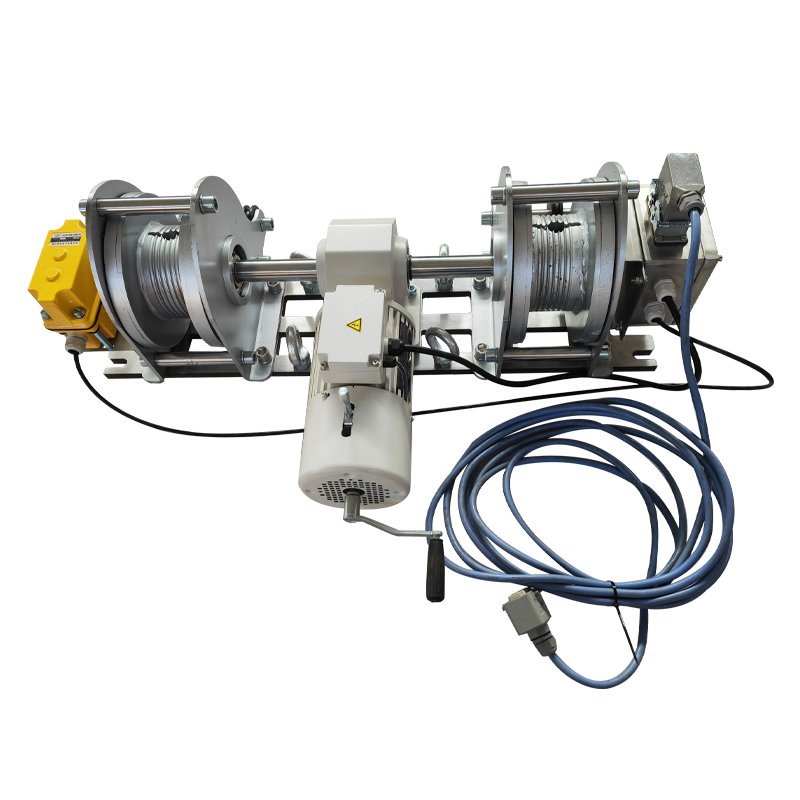

This dual-drum winch features a left-and-right distributed dual-drum design connected by an extended shaft, effectively increasing the distance between the drums. The base is constructed from stainless steel plates, providing stability and durability. Each drum is equipped with a guide pulley at the front and features a grooved design, with each drum accommodating approximately 8 meters of rope. The equipment includes a four-position travel limiter, with two positions in each direction, enabling precise control of winding/unwinding and height adjustment.

Design advantages:

1. Dual-drum design: The Kailude PLW1500kg winch is equipped with dual drums, allowing simultaneous winding/unwinding of two ropes, improving work efficiency.

2. Extended shaft connection: Effectively separates the spacing between the two drums, ensuring vertical alignment between the lifting point and the load, enhancing operational stability.

3. Stainless steel base: Corrosion-resistant and durable, extending equipment service life.

4. Guide pulley design: Each drum is equipped with a front guide pulley, ensuring smooth rope winding/unwinding and reducing wear.

5. Grooved drum design: Each drum can hold 8 meters of rope, facilitating operation.

6. Travel limiter: Four-position limiter design, with two positions in each direction, for precise control and height adjustment.

7. Manual release function: The motor is equipped with manual release, allowing lifting/lowering via hand crank in emergencies, enhancing operational flexibility.

8. Stainless steel control box: Waterproof and dustproof design, equipped with aviation connectors for quick power cable connection.

9. Aviation-grade protective connectors: All power and control lines use aviation-grade connectors for easy operation, high reliability, and enhanced equipment durability.
