Explosion-Proof Servo Electric Winch Manufacturer China

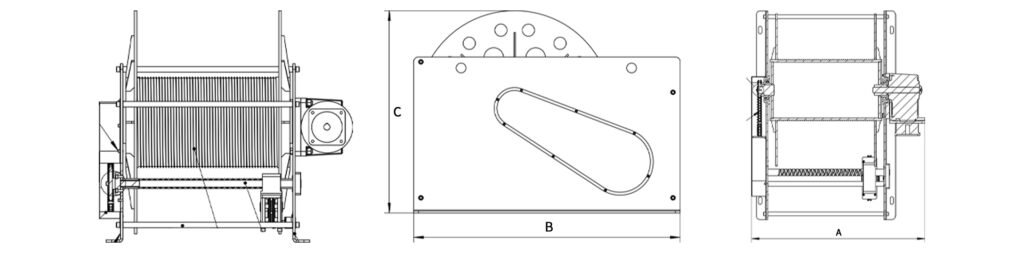

2D diagrams clearly illustrate the equipment’s layout and core structure.

500-9000kg Explosion-Proof Servo Electric Winch - 1

The specifications allow users to quickly understand the performance range and configuration features of the device.

Model: 200 kg	Rated Pulling Force: 200 kg	Cable Diameter: 9 mm	Cable Diameter: 9 mm	Motor Power: 2.4 kW	Speed: 3000 rpm
Average Rope Speed: 61 m/min

Model	A(Length)	B(Width)	C(Height)
200 kg	911mm	1095mm	830mm

Key Features & Advantages

Explosion-Proof Servo Drive
Driven by certified explosion-proof servo motors, ensuring intrinsically safe operation in Zone 1 & Zone 2 hazardous areas. Compatible with single-phase or three-phase AC power supply for flexible integration.
Extra-Long Cable Capacity
Supports composite cables up to 5000 meters in length with lifting capacities from 500kg to 9000kg, perfectly suited for long-distance retrieval and deployment in deep mining shafts, port cable management, and large-scale industrial logistics.
Automatic Orderly Winding System
Equipped with a precision reciprocating lead screw rope arranger that ensures neat, tangle-free spooling — preventing cable jamming and extending cable lifespan even under heavy-duty continuous operation.
Real-Time Precise Monitoring
Built-in metering encoder delivers accurate real-time feedback on cable length, payout/retrieval speed, and operational parameters, enabling operators to maintain full control and optimize efficiency.
Optical Slip Ring Technology
High-reliability optical slip ring configuration guarantees uninterrupted power and signal transmission for composite cables (power + data/fiber), meeting the most demanding industrial automation and smart system requirements.
Fully Customizable Design
Tailored options for retrieval speed, cable length, drum capacity, control mode (remote/manual/PLC), and mounting style to match your specific project needs.

Versatile Applications

Our intelligent composite cable winches excel in:

Mining & Underground Operations: Deep shaft cable deployment, equipment positioning, and rescue systems in explosive dust/gas environments.
Port Shore Power Systems: Reliable high-voltage shore-to-ship cable management with safe, automated spooling.
Industrial Automation & Logistics: Heavy-duty cable handling in factories, warehouses, and automated conveyor systems.

Why Choose Us – Professional Chinese Explosion-Proof Winch Manufacturer

With years of expertise as a dedicated explosion-proof electric winch factory in China, we manage the complete production process in our state-of-the-art facilities. This enables us to deliver:

Superior quality with full ATEX/IECEx explosion-proof certification
Competitive explosion-proof servo winch pricing and fast lead times
Comprehensive customization and OEM/ODM services
Reliable global logistics, technical support, and spare parts supply
Proven track record supplying mining contractors, port authorities, and industrial automation integrators worldwide

For bulk orders or customized explosion-proof servo electric winches, contact our engineering team today for a detailed quotation and technical consultation.
