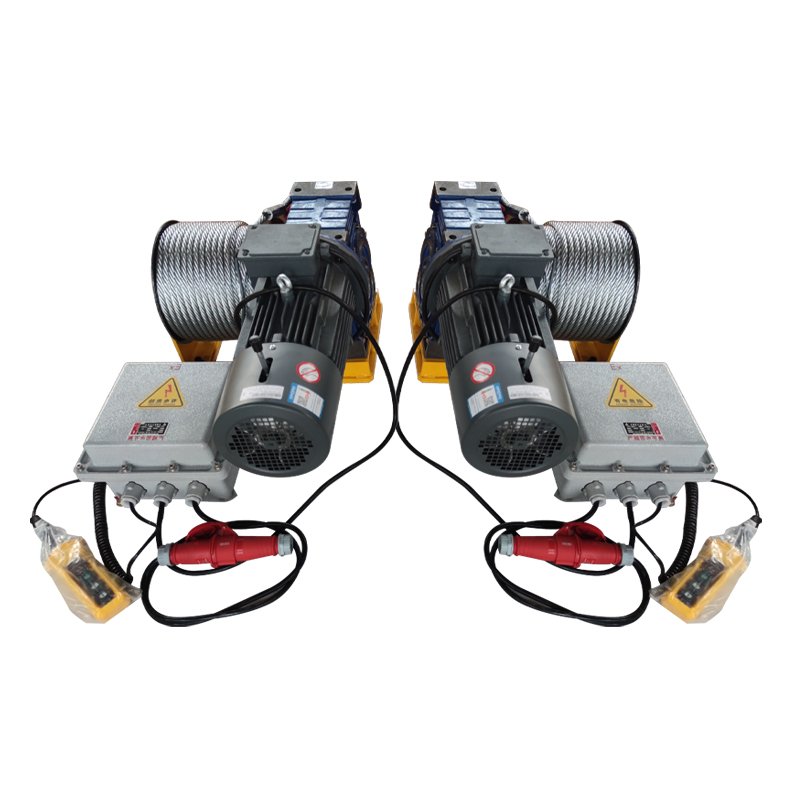

Gangway winch turbo reduction marine winch electromagnetic brake double brake both sides of the ship gangway Ladder winch

product category:Products

Share

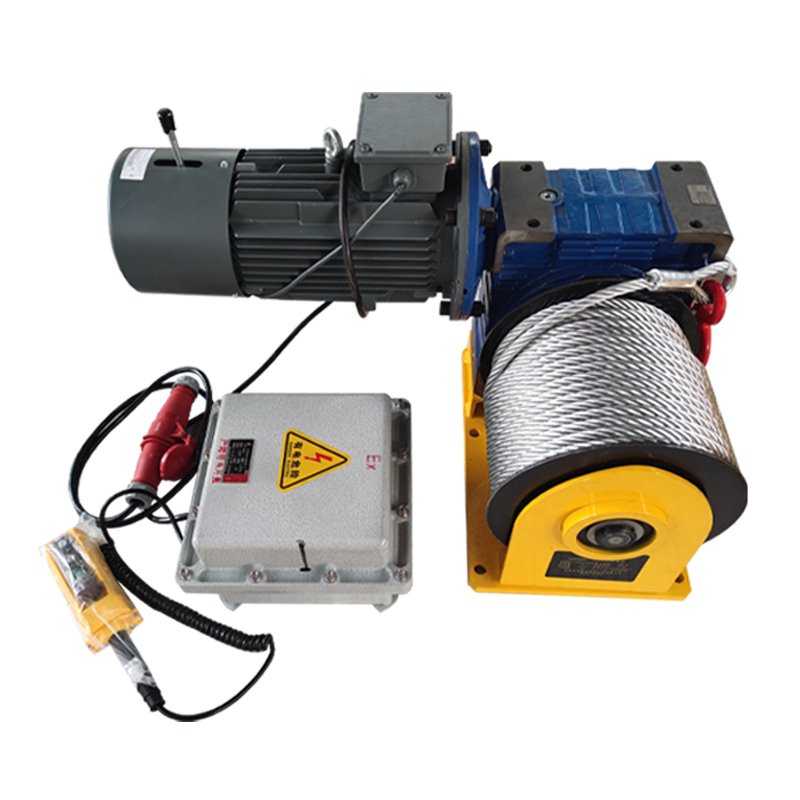

This winch is a specially designed for ship gangway lifting and lowering, providing a crucial safety, reliability and durability for marine vessels.

The winch adopts electromagnetic braking brake and turbo reduction gearbox, featuring high winching force, smooth operation and high reliability.
Turbine reducer with mechanical self-locking device ensures safety by ensuring that no accidental sliding occurs under any circumstances.
It is suitable for all kinds of ships, such as cargo ships, passenger ships, oil tankers, etc. It is a marine winch with excellent performance and wide range of application.

Model Motor power Reduction gear ratio Reducer output speed Motor reducer Rated output Torque Output speed Winding engine Constant load Reel capacity Rope diameter Lifting weight 1200kg 1.2kw 100:1 10rp/min 100N.m 6m/min 190kg 54m 12mm 1200kg Model A（Length） B（Width） C（Height） 1200kg 532mm 663mm 522mm The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.

get a quote

Related products

Model	Motor power	Reduction gear ratio	Reducer output speed	Motor reducer Rated output Torque	Output speed	Winding engine Constant load	Reel capacity	Rope diameter	Lifting weight
1200kg	1.2kw	100:1	10rp/min	100N.m	6m/min	190kg	54m	12mm	1200kg

Model	A（Length）	B（Width）	C（Height）
1200kg	532mm	663mm	522mm
