Hand-cranked Dual-speed Winch

The ultimate hand-operated dual-speed winch, compatible with electric and pneumatic tools, facilitates rapid rope retrieval under no load and effortlessly handles heavy-duty tasks with reduced manual effort.

  1. This product is designed to be compact, aesthetically pleasing, and lightweight. It can be installed in two ways: vertically or horizontally.
  2. The product features fast speed under no-load conditions and slow speed under load. It is suitable for applications such as lifting, pulling, and securing, offering advantages such as ease of use and high efficiency.

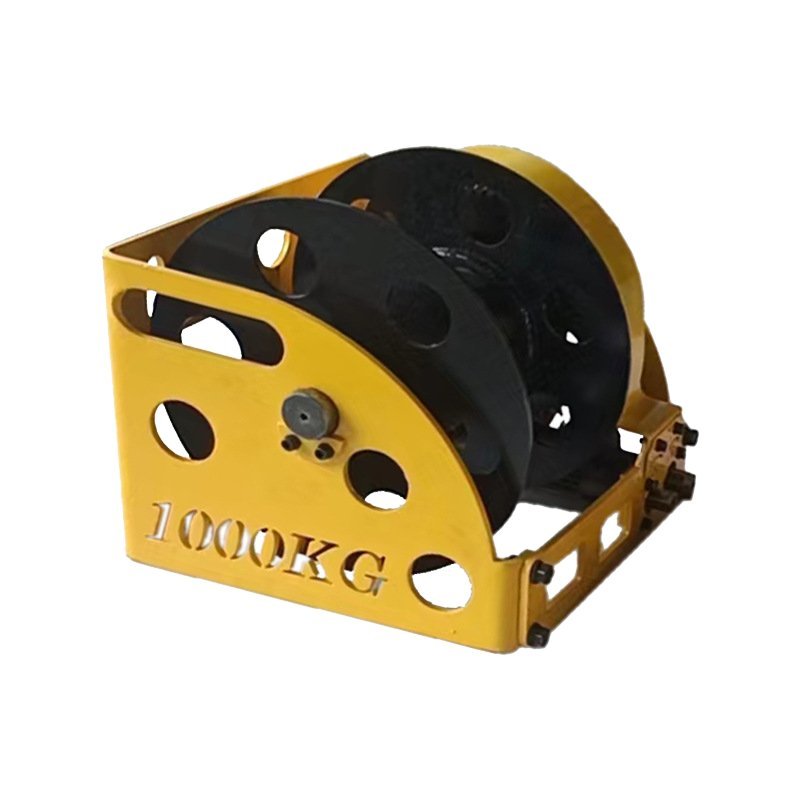

Hand-cranked Dual-speed Winch - 1
ModelGear ratioMaximum lifting capacityWeight of the winchDiameter of the steel cableDrum capacity
500 KG61:1 / 30.5:1500 KG13kg6mm100m
1000 KG61:1 / 124:11000 KG22kg10mm50m
2000 KG82:1 / 164:12000 KG65kg12mm60m
3000 KG100:1 / 200:13000 KG100kg14mm70m
5000 KG240:1 / 480:15000 KG240kg18mm70m

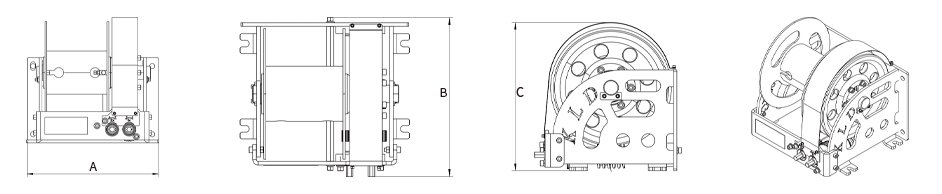

ModelA(Length)B(Width)C(Height)
500 KG310mm240mm205mm
1000 KG332mm281mm257mm
2000 KG426mm418mm432mm
3000 KG438mm492mm525mm
5000 KG620mm714mm765mm

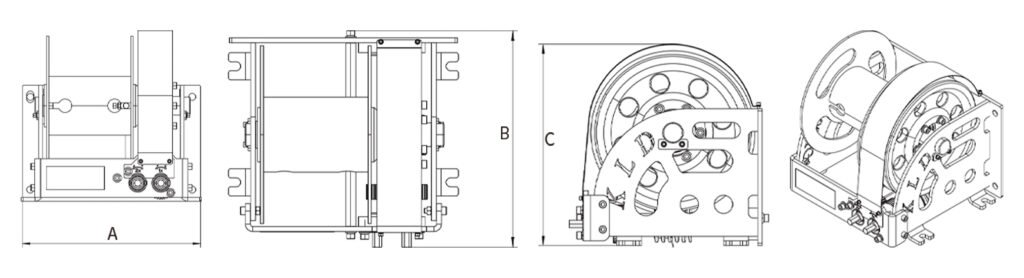

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
