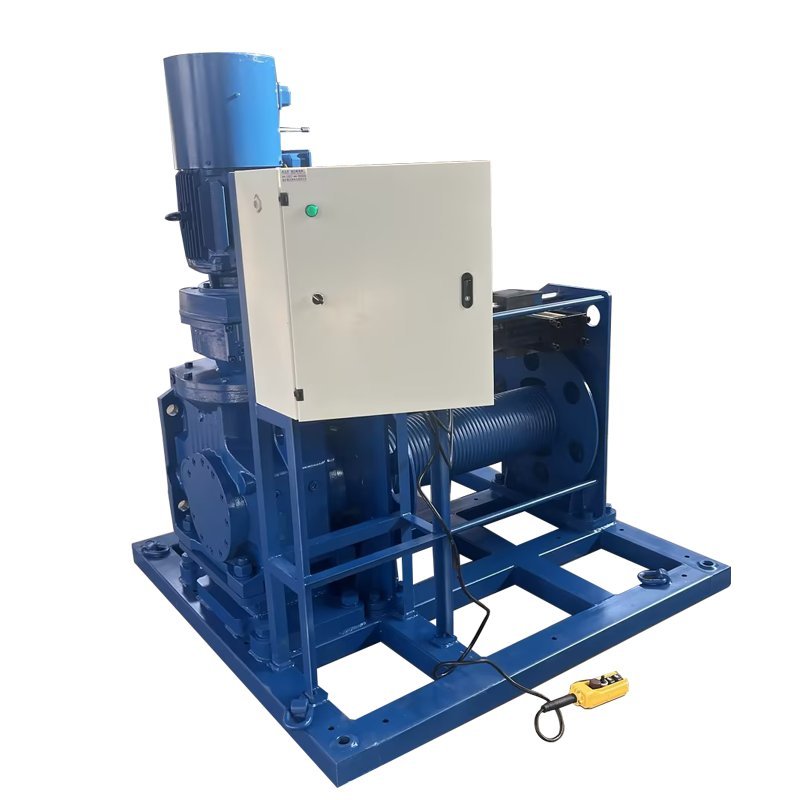

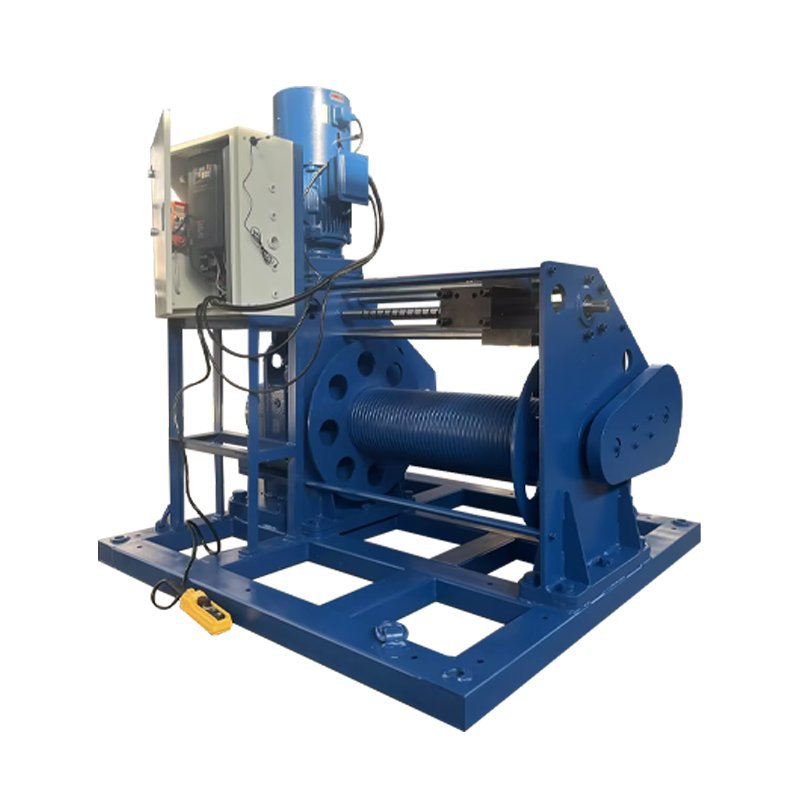

8 Ton Heavy Duty Electric Winch

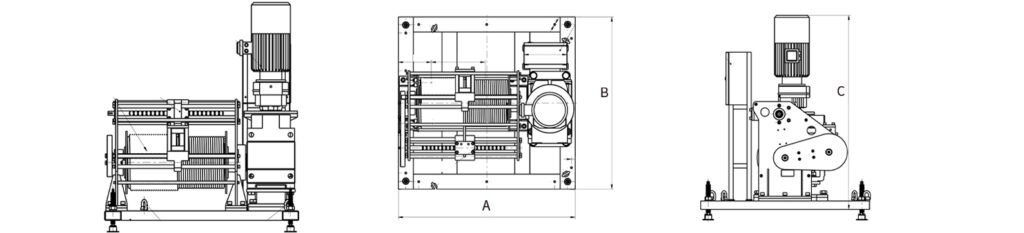

A two-dimensional drawing clearly presents the equipment’s layout and core structure.

Key Features & Advantages

Impressive 8-Ton Capacity: Rated for heavy lifting and pulling tasks, with customizable load support from 1000-50000kg – a true 8 ton electric winch for serious industrial use.
Extended 500m Rope Length: Extra-long steel wire rope enables long-distance operations, dramatically improving reach and efficiency on large-scale projects.
Dual-Row Rope Guider: Flexible switching between horizontal and upward payout adapts to diverse site conditions, similar to advanced double drum electric winch configurations for maximum versatility.
SEW Industrial Gear Motor: Delivers stable, powerful output with quiet operation and superior durability – the hallmark of a high efficiency electric winch.
Electromagnetic Braking System: Instant, reliable braking response ensures safety and precision during heavy-duty operations.
Variable Frequency Speed Control: Smooth, real-time speed adjustment via built-in frequency converter and tuning knob for optimal performance in any scenario.
Dual Control Options: Full electric winch with remote capability – choose wireless remote or wired pendant for convenient, safe operation from a distance.

Technical Specifications

Parameter	Specification
Rated Capacity	8 Ton (8000kg)
Customizable Load Range	1000–50000kg
Maximum Rope Length	500 meters
Rope Guider	Dual-row (horizontal & upward payout)
Motor	SEW industrial gear motor
Braking System	Electromagnetic
Speed Control	Variable frequency with adjustment knob
Control Options	Wireless remote + wired pendant
Voltage	220-380V (3-phase)
Protection Rating	IP55 standard (higher ratings available)
Operating Temperature	-20°C to +60°C
Noise Level	Low (SEW motor design)

Model：8000 KG	Motor power：11 KW	Output speed：5.6-9.3m/min	Motor reducer Rated output Torque：13768N.m
Reduction gear ratio：226：1	Reducer output speed：6.5rp/min	Lifting weight：8000 kg	Self-weight：1950kg
Wire rope diameter：18mm	Total length of the wire rope：300m

Model：8000 KG

A（Length）：1640mm

B（Width）：1600mm

C（Height）：1845mm

Applications

Mining & Underground Operations: Reliable long-distance heavy traction and lifting of equipment, materials, and personnel in confined spaces.
Construction & Engineering: Powerful pulling for structural components, scaffolding, and large-scale site work requiring extended reach.
Special & Rescue Equipment: Critical support for emergency heavy-load recovery and specialized deployment scenarios.
General Heavy Industrial Use: Perfect for any environment demanding a robust heavy duty electric winch with high capacity and flexible control.

Why Choose Our 8 Ton Heavy Duty Electric Winch?

Unmatched Load & Reach: The combination of 8-ton rating and 500m rope makes this high capacity electric winch ideal for the most challenging long-distance tasks.
Superior Versatility: Dual payout directions and double drum electric winch-style guider adapt effortlessly to varying job requirements.
Premium Efficiency & Quiet Operation: SEW motor technology creates a genuine high efficiency electric winch that reduces noise and energy costs.
Total Control & Safety: Variable frequency electric winch system plus electric winch with remote options and electromagnetic braking deliver precision, convenience, and peace of mind.

Frequently Asked Questions (FAQ)

Q: What is the maximum rope length and how does it benefit operations?
A: This long rope electric winch supports up to 500 meters of steel wire rope, enabling extended reach for deep mining shafts, large construction sites, or remote rescue operations – significantly improving efficiency over standard models.

Q: Can the winch be controlled remotely?
A: Yes – it features full electric winch with remote capability, including both wireless remote and wired pendant options for safe, flexible operation from a distance.

Q: Is speed adjustable on-site?
A: Absolutely. The variable frequency electric winch system includes a frequency adjustment knob for real-time speed tuning to match changing load or site conditions.

Q: What certifications are available?
A: See the Certifications section below for details.

Q: Can this winch be customized further?
A: Yes – load range (1000-50000kg), voltage adaptations, and additional safety features are fully customizable.

New Section: Certifications & Quality Assurance

Our heavy duty electric winch series meets international standards for reliability and safety:

CE Certification – Compliant with European safety, health, and environmental requirements.
ISO 9001:2015 – Quality management system certified for consistent manufacturing excellence.
IP55 Protection Rating – Dust and water resistant for harsh industrial environments.
Optional Certifications – SGS inspection, CCS (for marine-related use), or custom third-party verification available upon request.

These certifications ensure your high capacity electric winch performs safely and reliably worldwide.

Ready to tackle heavy loads over extreme distances with confidence? Contact us today for customization details, competitive pricing, and expert technical support!
Worldwide shipping and comprehensive after-sales service included.
Browse our full selection of heavy duty electric winch and high capacity electric winch solutions – reach out now.
