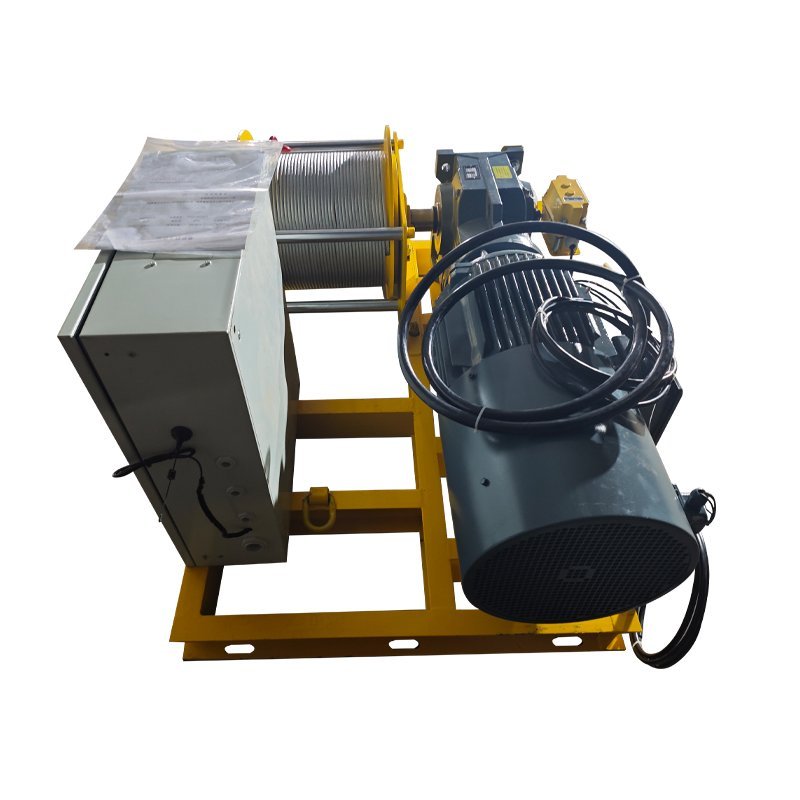

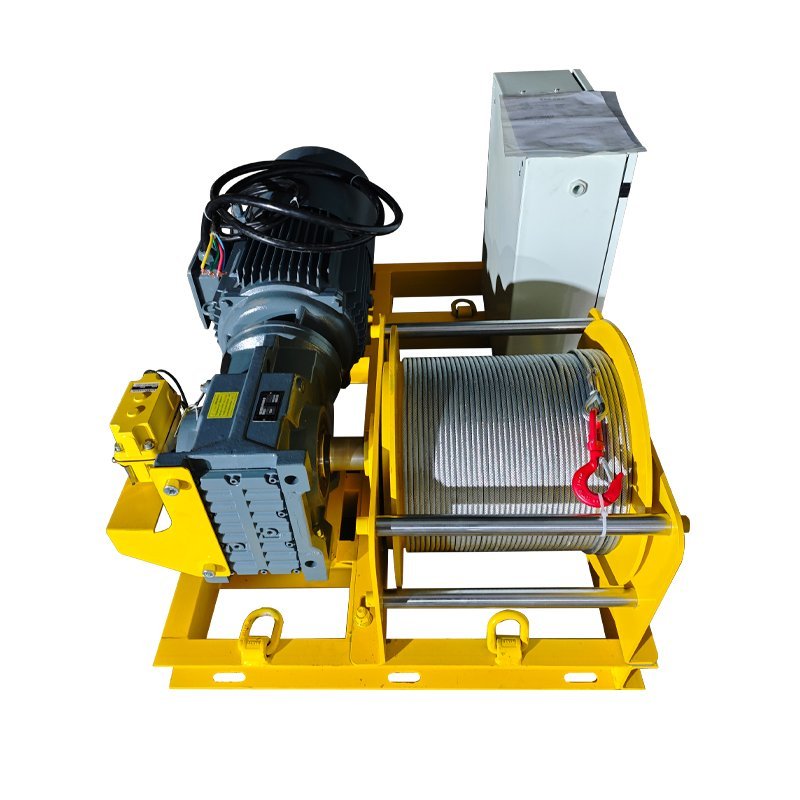

High Speed Electric Winch 120 m/min

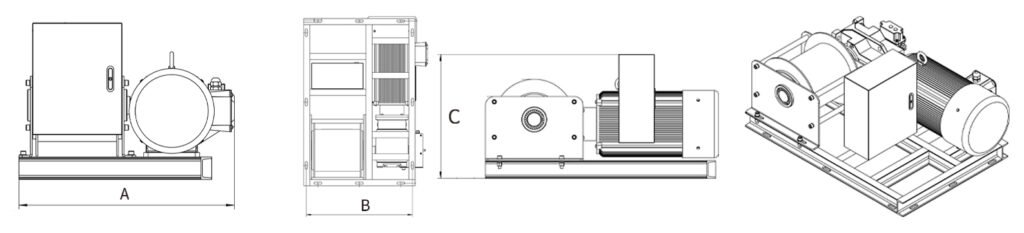

A two-dimensional drawing clearly presents the equipment’s layout and core structure.

Key Features & Advantages

Ultra-High Speed Performance: Achieves speeds up to 120 m/min with the 18.5 kW motor – making this high speed electric winch a top choice for time-sensitive traction tasks.
Variable Frequency Control: Built-in frequency converter with easy knob adjustment provides seamless, precise speed regulation for safe and flexible operation in any scenario.
High Power, Light Load Optimization: Delivers ample power for fast pulling while prioritizing speed over heavy capacity – ideal for rapid, repetitive operations.
High Efficiency & Productivity: The high efficiency electric winch design minimizes operation time, lowers energy consumption, and maximizes workflow in high-demand environments.
Robust Industrial Build: Reliable 220-380V power compatibility and durable construction ensure long-term performance under tough conditions.
Customizable Load Range: Supports 100-6000kg pulling capacity for adaptability across various traction needs.

Technical Specifications

Parameter	Specification
Pulling Capacity	500 kg (standard); customizable 100-6000 kg
Maximum Line Speed	Up to 120 m/min
Motor Power	18.5 kW variable-frequency motor
Voltage	220-380V (3-phase)
Speed Control	Built-in frequency converter with knob adjustment
Focus Design	High power + light load for maximum speed
Control Method	Manual knob for rope-in/out speed
Protection Rating	IP55 standard (higher ratings customizable)
Operating Temperature	-20°C to +60°C
Applications	Rapid traction in mining, construction, rescue

Model	Motor power	rated pull	Drum speed	Wire rope diameter	Average rope speed
500KG	18.5kw(1.5 times)	500kg	117rpm	8mm	120m/min(Variable frequency drive）

Model	A（Length）	B（Width）	C（Height）
500kg	963mm	822mm	700mm

Applications

Mining & Underground Operations: Fast traction of materials, equipment, and cables in high-speed underground transport.
Construction & Engineering: Rapid pulling and positioning of lightweight loads, tools, and components on job sites.
Special & Rescue Equipment: Quick deployment and recovery support in emergency situations requiring speed and precision.
General Industrial Traction: Perfect for any setting demanding a high speed electric winch for efficient, time-critical pulling tasks.

Why Choose Our High Speed Electric Winch?

Superior Speed Advantage: With 120 m/min capability, this high line speed electric winch dramatically shortens operation cycles compared to standard models.
Precise & Flexible Control: The variable frequency electric winch system offers effortless knob-based adjustments for optimal performance in varying conditions.
Efficiency-Focused Design: Combines high power with light-load optimization to deliver a true high efficiency electric winch that saves time and energy.
Reliable Industrial Performance: Built tough for continuous use in harsh mining, construction, and rescue environments – ensuring minimal downtime and maximum uptime.

Need fast, reliable traction that keeps your operations moving at top speed? Contact us today for customization options, detailed quotes, and expert advice!
Global shipping and full technical support available.
Explore our range of high speed electric winch and industrial electric winch solutions – get in touch now.
