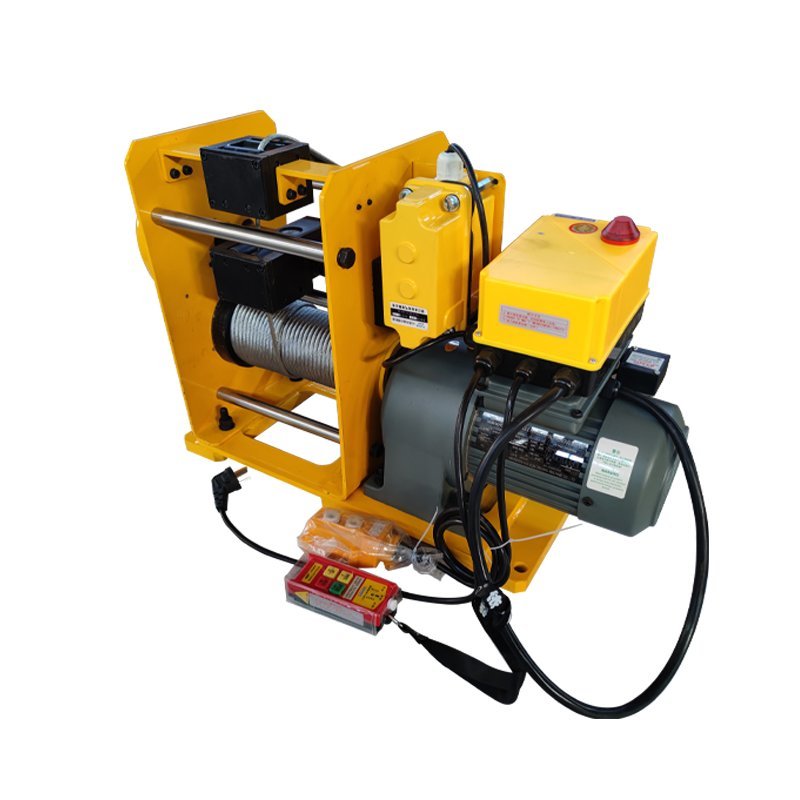

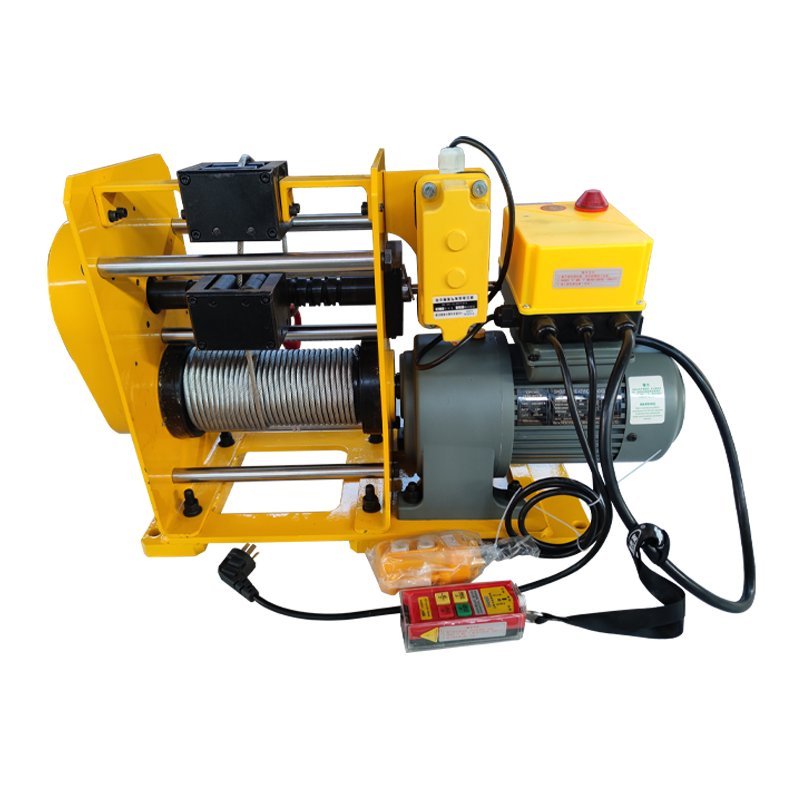

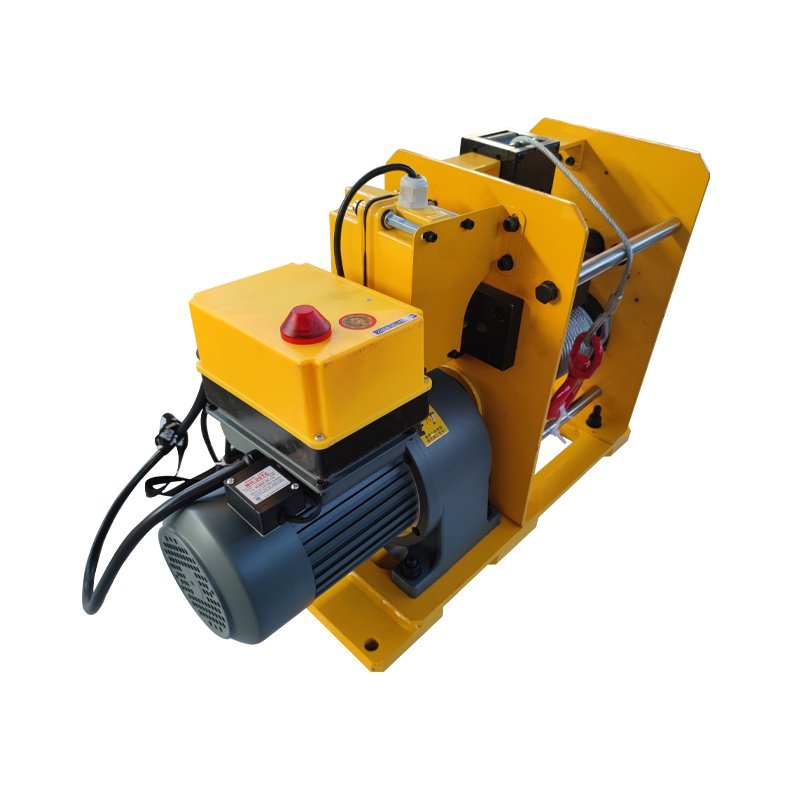

Inline Industrial Winch, Automatic Rope Spooling System, Fixed Rope Outlet, Multi-Unit Synchronous Operation

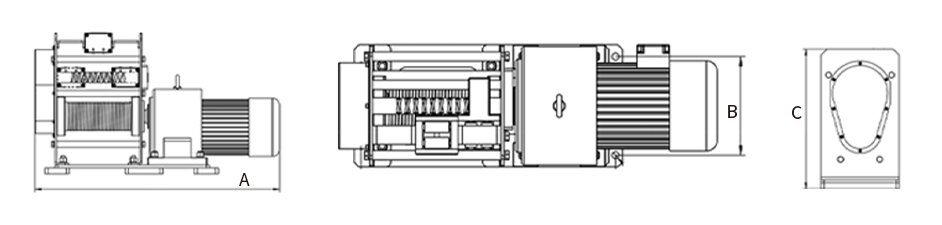

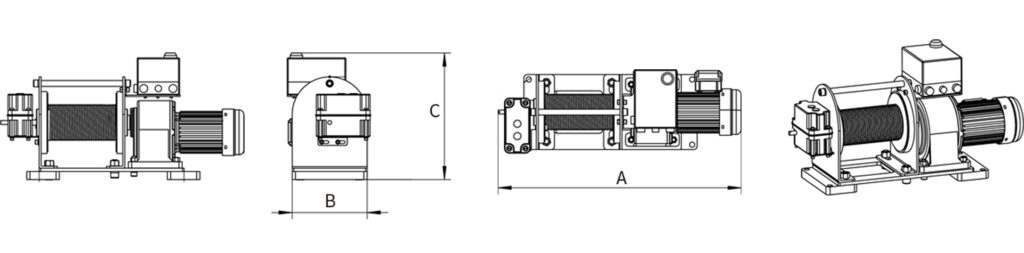

2D diagrams clearly illustrate the equipment’s layout and core structure.

Key Features & Benefits

1. Equipped with an automatic rope payout system, it enhances work efficiency, reduces labor intensity for workers, and minimizes the risk of operational errors.
2. The fixed rope payout position ensures the stability and accuracy of the rope, enhancing work efficiency and safety.
3. Using a mechanical height limiter effectively prevents exceeding the set height, thereby protecting equipment and goods from potential damage or hazards.
4. By employing a dual-control method with a remote control handle, operations become more flexible and convenient, thereby enhancing both work efficiency and safety.
5. An ultra-quiet industrial gear motor reduces noise pollution, providing a more comfortable working environment.
6. Multi-unit synchronous operation allows the winch to work simultaneously with multiple units, thereby increasing efficiency. It is suitable for scenarios where numerous items need to be simultaneously lifted or lowered.
7. Complete synchronous payout and retrieve functionality allows for simultaneous lifting and lowering operations, significantly enhancing work efficiency and reducing labor intensity for workers.

Technical Specifications

The specifications allow users to quickly understand the performance range and configuration features of the device.

Ideal Applications

Automated Production Lines / Automated Warehousing:
For precise lifting and long-distance traction of goods in automated production lines and automated storage systems. The automatic rope spooling system ensures orderly winding and unwinding of the wire rope. Multi-unit synchronous operation enables simultaneous lifting and lowering of batch goods, while dual control modes adapt seamlessly to automation system requirements.

Construction Engineering / Bridge Projects:
Suitable for vertical lifting of construction materials and precise positioning of components in high-rise buildings and bridge construction. The fixed rope outlet ensures stable traction, while the mechanical height limit switch prevents over-winding and top collision. Dual control modes enhance operational safety on site.

Ports / Dock Material Handling:
Designed for light to medium-duty cargo handling and mooring operations at ports and freight terminals. The fixed rope outlet meets standardized dock operation requirements, and multi-unit synchronous operation improves efficiency in batch material transfer. Optional anti-corrosion protection is available for high salt spray environments.

Mining / Underground Light-Duty Operations:
Applicable for light material lifting and equipment traction in mines and tunnel construction. The ultra-quiet motor is ideal for enclosed underground environments. Dual control modes ensure safe operation, while the automatic rope spooling system prevents rope disorder under complex working conditions.

Fully Customizable Solutions

This inline industrial winch is built on a modular industrial design concept, focusing on key requirements such as rope spooling precision, multi-unit synchronization, safety control, and environmental adaptability. It supports comprehensive customization to precisely match different load conditions, operational needs, and safety requirements—delivering a tailored, high-efficiency traction and lifting solution.

1. Load Capacity & Gear Ratio Customization
Rated pulling force / lifting capacity can be customized based on application requirements (covering a full range from 250 kg to 3200 kg). The gear ratio of the ultra-quiet industrial geared motor can be optimized accordingly to adjust traction/lifting speed, ensuring efficient operation while maintaining stable power output across different loads.

2. Rope Spooling & Rope Outlet Customization
In addition to the standard automatic rope spooling system, the screw-type rope guide can be customized to suit different wire rope diameters, ensuring precise guiding and enhanced stability of the fixed rope outlet. The spooling stroke and pressure parameters can also be optimized for extra-long rope capacity, maintaining orderly winding even during long-distance operation.

3. Control & Safety Customization
Beyond the standard dual control (remote control + wired pendant), control systems can be customized to include PLC integration and multi-unit synchronous control modules, enabling multiple machines to operate in complete synchronization. Safety configurations can be upgraded with high-precision mechanical height limiters, encoders, slack rope switches, and overload protection—forming a comprehensive multi-layer safety system.

4. Motor & Power Supply Customization
Motor power supply options can be customized to support 220V single-phase or 380V three-phase systems, meeting diverse power requirements. The ultra-quiet industrial geared motor can also be upgraded to a variable frequency version, allowing precise speed control for more refined and demanding operations.

Our engineering team works directly with laboratory directors, system integrators, and rescue equipment specifiers to deliver fully validated solutions that meet strict performance and safety standards.

Why Choose Our Inline Industrial Winch?

This inline industrial winch is specifically engineered for high-precision, high-safety, and multi-unit coordinated traction and lifting applications. It comprehensively addresses common industry pain points such as rope disorder, operational safety, and multi-unit synchronization. Compared to conventional industrial winches, it delivers clear advantages in spooling precision, safety level, coordination capability, and overall operating experience.

1. Automatic Rope Spooling + Fixed Rope Outlet for Zero Rope Disorder
The combination of an automatic rope spooling system and a fixed rope outlet ensures precise, orderly winding at all times—effectively eliminating rope tangling and improving operational reliability.

2. Dual Control + Mechanical Limit for Maximum Safety
Equipped with dual control modes (remote + wired pendant) and a mechanical limit system to prevent over-travel, providing a high level of safety protection throughout operation.

3. Multi-Unit Synchronous Operation for Higher Efficiency
Supports synchronized operation of multiple units, enabling simultaneous lifting and lowering for batch tasks—significantly boosting overall work efficiency.

4. Ultra-Quiet Industrial Motor for a Better Working Environment
Powered by an ultra-quiet industrial motor, ensuring smoother operation with reduced noise—creating a more comfortable and controlled working environment.

Frequently Asked Questions (FAQ)

1. Can the automatic rope spooling system adapt to different wire rope diameters?
Yes. The automatic rope spooling system (screw-type rope guide) can flexibly accommodate wire ropes ranging from 4 mm to 14 mm in diameter. The guide parameters can be customized according to the rope specifications, ensuring precise guiding and orderly spooling—effectively preventing tangling or jamming.

2. What is the synchronization accuracy for multi-unit operation? Can it ensure simultaneous lifting and lowering?
Multi-unit synchronization is controlled via a PLC system, with synchronization accuracy reaching the millimeter level. It fully supports simultaneous lifting and lowering, meeting the demands of batch material handling, stage equipment, and other synchronized operation scenarios with high efficiency and stability.

3. Is the mechanical height limiter difficult to adjust? Can the lifting height be set precisely?
No, it is easy to adjust. The mechanical height limiter can be precisely set via an adjustment knob on the machine, allowing accurate control of lifting height. It effectively prevents over-winding and top collision, ensuring equipment and load safety without complex operation.

4. What is the effective range of the dual control (remote + wired pendant)? Is it suitable for high-altitude operations?
The remote control has an effective range of up to 50 meters, with optional customization up to 100 meters. It is fully suitable for high-altitude and long-distance operations. The remote provides flexible control, while the wired pendant serves as a reliable backup—ensuring safe and convenient operation.
