Compact High-Load Industrial Electric Winch | Multi-Rope Output | Integrated Control

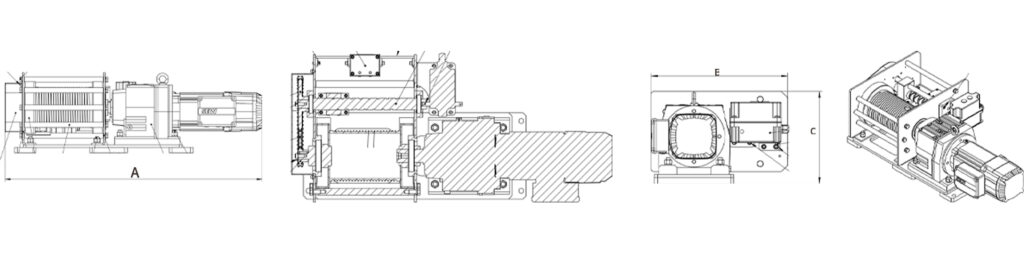

2D diagrams clearly illustrate the equipment’s layout and core structure.

Key Features & Benefits

1. Equipped with electrical equipment and control devices, it offers multiple rope output options.
2. A fixed-position rope payout device ensures the stability and accuracy of rope payout from the winch.
3. Equipped with an automatic rope payout system.
4. Utilizing a rope groove drum to effectively protect the rope.
5. Can be paired with SEW, Nord, Siemens, and other gear motors.

Technical Specifications

The specifications allow users to quickly understand the performance range and configuration features of the device.

Ideal Applications

Precision Industrial Equipment Integration:
Ideal for light to medium-duty traction and precise positioning in automated production lines, testing equipment, and precision machinery. Its compact structure allows easy integration into equipment systems, while the electrical control unit enables accurate start/stop and speed regulation.

Warehousing / Logistics Light-Duty Lifting:
Suitable for goods lifting in automated warehouses, mezzanine shelving, and small lifting platforms. Optional multi-rope output configurations adapt to various traction needs, while the automatic rope spooling system ensures orderly winding and unwinding of the wire rope.

Construction & Interior Fit-Out / Small Projects:
Designed for lifting building materials in indoor and outdoor renovation projects, as well as hoisting components in small-scale construction. The compact design fits confined job sites, and the electrical control system ensures easy operation, with reliable braking for stable and safe performance.

Stage & Venue Equipment Maintenance:
Applicable for lifting lighting, curtains, and display equipment in theaters and stadiums. The low-noise operation ensures no disruption to performances or events, while precise control allows smooth start/stop and accurate positioning.

Fully Customizable Solutions

This industrial electric winch is built on a modular, compact design, focusing on key factors such as space, load, control, and environmental adaptability. It supports full-dimensional customization to precisely match various traction and lifting requirements—delivering a tailored, high-efficiency industrial solution.

1. Load Capacity & Gear Ratio Customization
The rated load can be customized based on traction/lifting requirements, covering light-duty to medium-duty high-load applications. The gearbox ratio and motor power are optimized accordingly to adjust lifting/traction speed—balancing high load capacity with operational efficiency.

2. Rope Configuration & Spooling Customization
The drum rope capacity can be tailored according to working distance, with optimized groove design and automatic rope spooling parameters to suit different rope lengths and diameters. Multi-rope output options are available, including single-rope, double-rope, or multi-rope configurations to meet diverse traction scenarios.

3. Control & Electrical Customization
In addition to the standard electrical control system, control modes can be customized with wireless remote control, PLC integration, and variable frequency speed control for precise operation and automation. Control panel protection levels can be upgraded (IP55/IP65), making the system suitable for outdoor, humid, or harsh environments.

4. Structure & Installation Customization
The compact structure can be optimized based on installation space, with adjustable dimensions and mounting hole configurations for better integration into equipment or confined spaces. Multiple installation options are available—horizontal, vertical, wall-mounted, or base-mounted—along with dedicated mounting frames to enhance installation stability.

Our engineering team works directly with laboratory directors, system integrators, and rescue equipment specifiers to deliver fully validated solutions that meet strict performance and safety standards.

Why Choose Our Industrial Electric Winch?

This industrial electric winch is specifically engineered for compact, high-load traction and lifting applications. It addresses key challenges such as limited installation space, heavy-duty operation, and precise control. Compared to conventional electric winches, it delivers clear advantages in space efficiency, load capacity, control accuracy, and application versatility.

1. Compact High-Load Structure for Maximum Space Utilization
Designed with a compact footprint while maintaining strong load-bearing capability, making it ideal for installations in confined spaces without compromising performance.

2. Multi-Rope Output + Automatic Spooling for High Efficiency
Supports single, double, or multi-rope configurations to meet different traction needs. The automatic rope spooling system ensures neat and orderly winding, eliminating tangling and improving overall efficiency.

3. Integrated Electrical Control for Easy & Precise Operation
Equipped with a built-in electrical control system, enabling convenient operation with precise start/stop and speed regulation—reducing setup complexity and improving usability.

4. High Load Capacity with Stable Performance
Engineered for heavy-duty industrial use, offering strong load capacity, smooth operation, and long-term durability—ensuring reliable performance even under demanding conditions.
