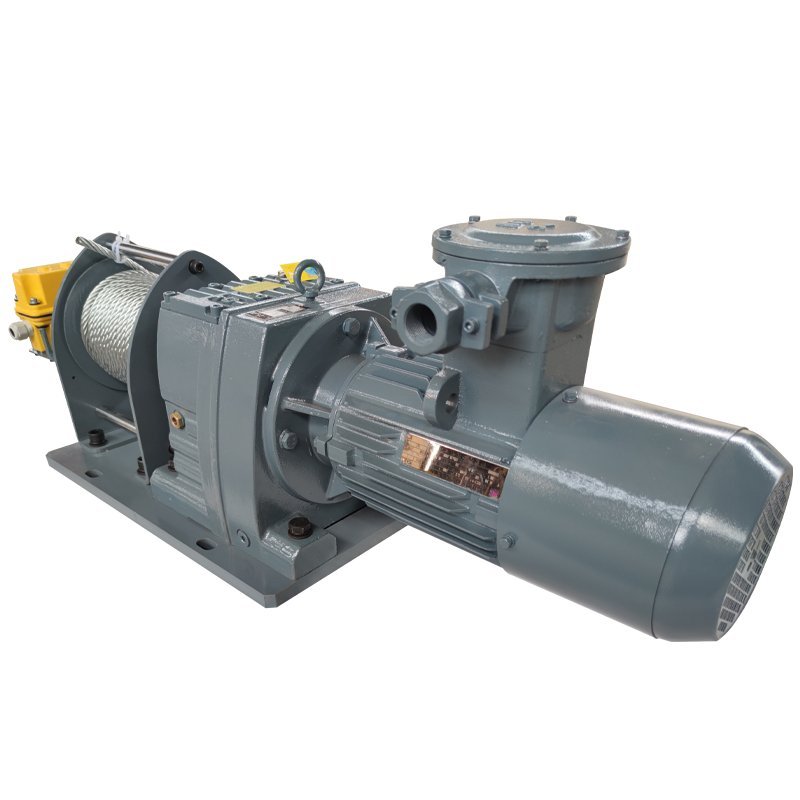

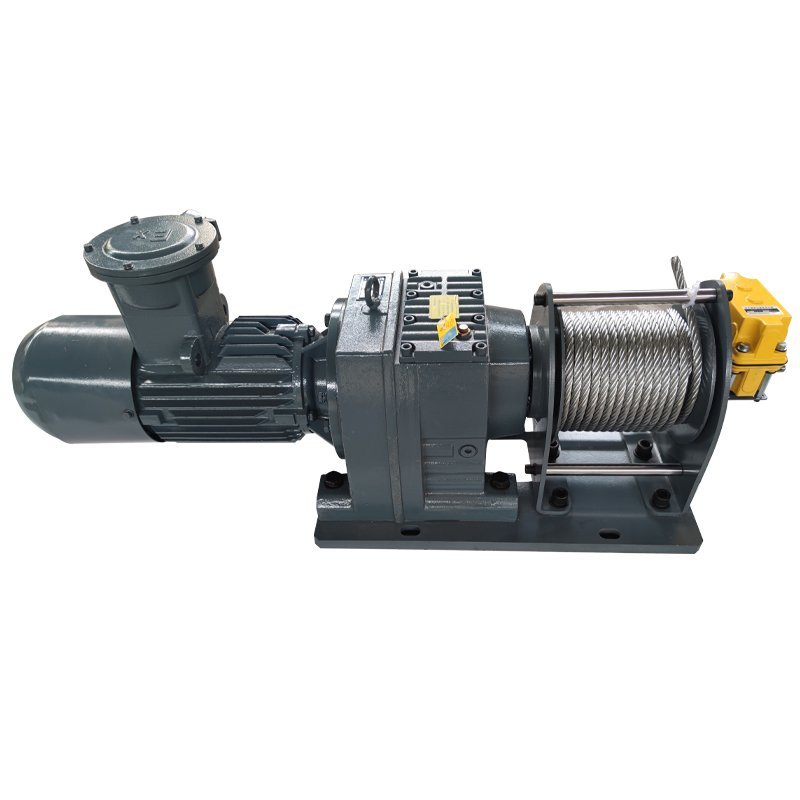

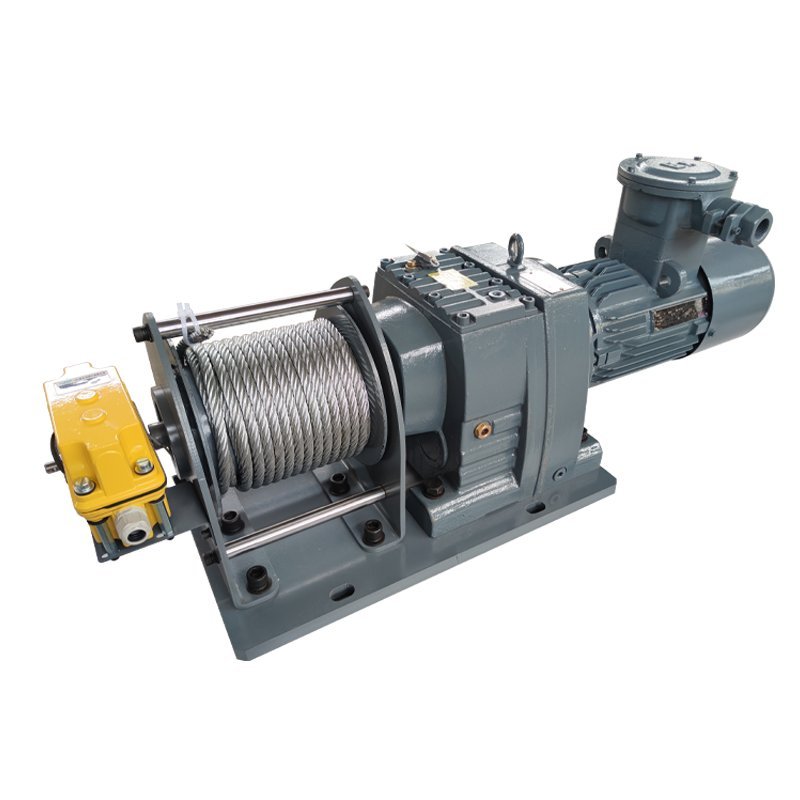

Industrial In-Line Winch | R Series Hard Gear Reducer | Explosion-Proof Option

Key Features & Benefits

1. The product is equipped with the R-series hardened gear reducer, which provides higher transmission efficiency and longer service life. This configuration helps in saving maintenance and replacement costs for customers, while also enhancing production efficiency and stability.
2. Utilizing an electromagnetic brake motor ensures precise braking, allowing the winch to stop quickly and accurately. This feature helps prevent unnecessary accidents and losses, thereby enhancing workplace safety.
3. Ultra-low noise design with operational noise levels below 70 decibels, reducing noise at the work site and improving the comfort of the working environment while enhancing employee efficiency.
4. Standard equipped with a four-point height limiter, allowing flexible setting of start and stop positions according to customer needs. This enhances production efficiency and flexibility while reducing operational complexity and error rates.

Technical Specifications

The specifications allow users to quickly understand the performance range and configuration features of the device.

Ideal Applications

Heavy-Duty Industrial Workshop Operations:
Suitable for heavy-duty tasks in machining and heavy industry workshops, including workpiece positioning, relocation, and equipment assembly traction. Equipped with an R series gearbox for efficient power transmission and an electromagnetic brake for precise stopping, ensuring stable and high-efficiency operation under high-frequency workshop conditions.

Mining / Underground Explosion-Proof Operations:
Designed for material lifting and equipment hauling in coal mines, metal mines, and tunnel construction. Configured with an explosion-proof motor to suit hazardous underground environments. Features overload protection and automatic shutdown to ensure operational safety.

Port / Dock Material Handling:
Ideal for heavy cargo loading/unloading and vessel mooring in deep-water ports and freight terminals. The compact structure fits limited dock installation space, while the four-point limit switch enables precise travel control. Multi-rope output supports high-volume material transfer.

Construction / Bridge Engineering:
Applicable to vertical lifting of building materials and precise positioning of components in high-rise construction and bridge projects. The electromagnetic braking system provides rapid stopping to prevent slipping. Explosion-proof versions are available for special site conditions, and the long service life design supports extended project operations.

Fully Customizable Solutions

This industrial straight-line winch is built on a modular, industrial-grade design, focusing on key requirements such as load capacity, efficiency, safety, and environmental adaptability. It supports full-dimensional customization to precisely match various traction and lifting applications, delivering a dedicated solution that is efficient, safe, and highly durable.

1. Load Capacity & Speed Ratio Customization
Rated pulling force / lifting capacity can be tailored according to specific requirements (ranging from 250 kg to 3200 kg). The speed ratio of the R series hardened gear reducer can be optimized simultaneously to adjust traction/lifting speed, balancing heavy-load performance with operational efficiency to suit different industrial workflows.

2. Power & Explosion-Proof Customization
Motor configurations are customizable. The standard version features an electromagnetic brake motor, while high-risk environments can be equipped with an explosion-proof motor (compatible with CT4 and similar ratings), making it suitable for mining, oil, and chemical industries. Motor voltage (220V / 380V) and power can also be customized to match various power supply conditions and load requirements.

3. Safety & Limit Control Customization
In addition to standard overload protection and automatic shutdown, the system can be upgraded with a four-point limit switch, allowing flexible start/stop position settings and precise travel control. Optional components such as encoders, slack rope switches, limit switches, and overload protection devices can be added to create a multi-layered safety system for enhanced operational security.

4. Noise & Transmission Customization
Beyond the standard low-noise design, advanced noise-reduction solutions can be customized for environments with strict noise requirements, such as precision workshops and laboratories. By optimizing the vibration-damping structure of the R series gearbox, operating noise is further reduced. The gearbox can also be upgraded to a higher-efficiency version to improve transmission performance and reduce energy consumption.

Our engineering team works directly with laboratory directors, system integrators, and rescue equipment specifiers to deliver fully validated solutions that meet strict performance and safety standards.

Why Choose Our Industrial Straight-Line Winch?

Engineered specifically for high-load, high-safety, and demanding industrial traction and lifting applications, this industrial straight-line winch is comprehensively optimized to address key challenges such as efficiency, safety, noise control, and environmental adaptability. Compared to conventional industrial winches, it delivers clear advantages in transmission efficiency, safety level, durability, and versatility across working conditions.

1. R Series Hardened Gear Reducer — Efficient, Durable, Cost-Saving

2. Electromagnetic Brake Motor — Precise & Reliable Braking

3. Ultra-Low Noise Design — More Comfortable Working Environment

4. Four-Point Height Limit Switch — Precise & Flexible Travel Control

5. Optional Explosion-Proof Configuration — Ready for All Scenarios

Frequently Asked Questions (FAQ)

1. What hazardous environments is the explosion-proof version suitable for? What is the explosion-proof rating?
The explosion-proof version is designed for hazardous environments such as coal mines, oil drilling platforms, and chemical plants where flammable or explosive gases may be present. It can be customized to meet CT4 and higher explosion-proof ratings, ensuring safe operation in high-risk conditions. For standard environments, a non-explosion-proof version is also available.

2. What are the advantages of the R series hardened gear reducer compared to standard reducers?
The R series hardened gear reducer offers higher transmission efficiency, superior wear resistance, and a longer service life. It can handle heavier loads while reducing maintenance and replacement costs. Additionally, it operates more smoothly with lower noise, making it ideal for high-frequency, continuous industrial operations.

3. Is the four-point height limit switch difficult to adjust? Can it accurately control lifting height?
The four-point height limit switch is easy to adjust. Start and stop positions can be freely set via adjustment knobs on the machine, enabling precise control of lifting or traction travel. It effectively prevents over-travel and top collisions, making it suitable for applications requiring accurate positioning.

4. How fast is the braking response of the electromagnetic brake motor? Can it ensure safety under heavy loads?
The electromagnetic brake motor features rapid response and precise braking performance. It can stop and lock immediately under heavy-load conditions, eliminating the risk of slipping. Combined with overload protection and automatic shutdown functions, it provides comprehensive safety assurance for heavy-duty operations.
