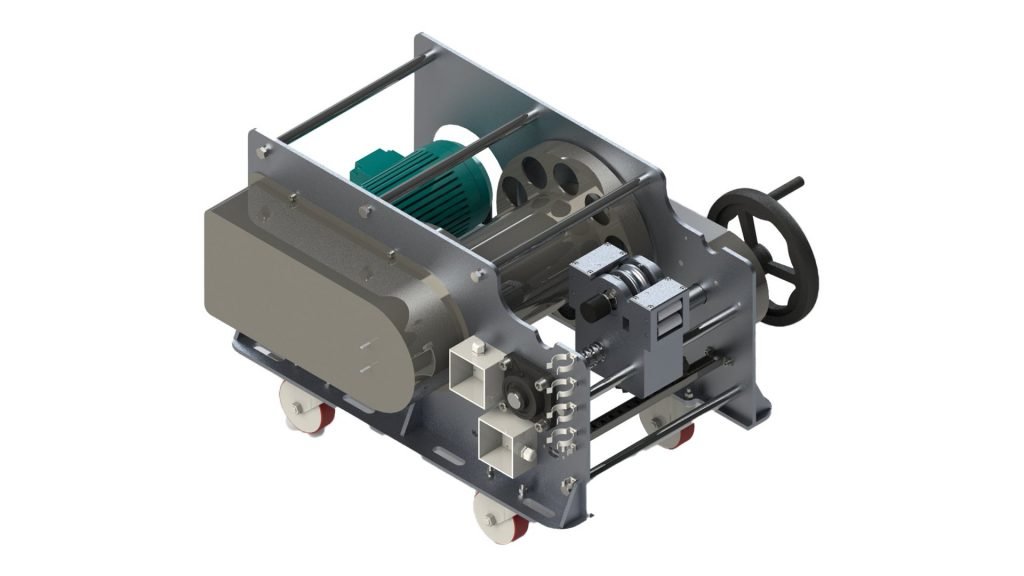

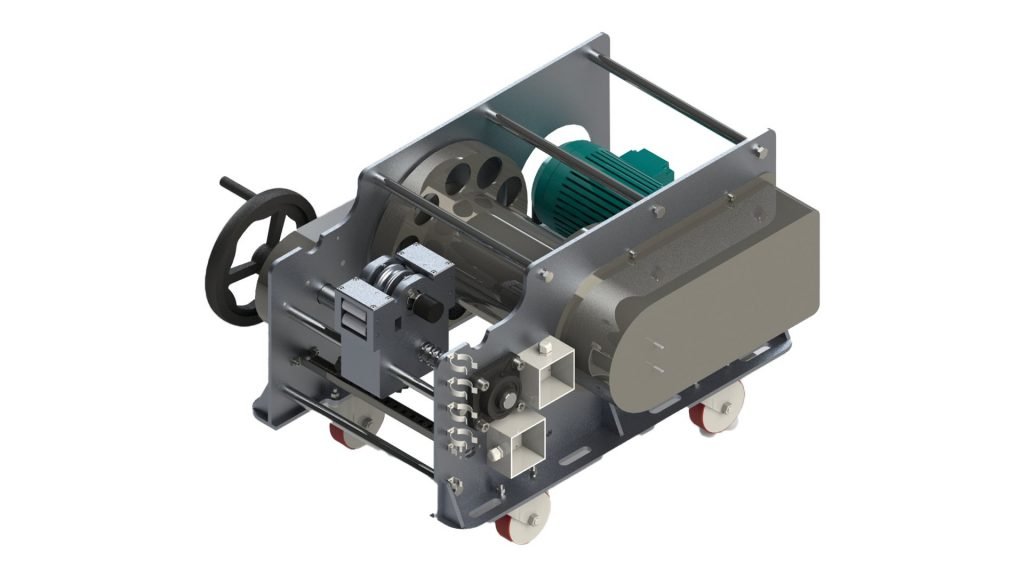

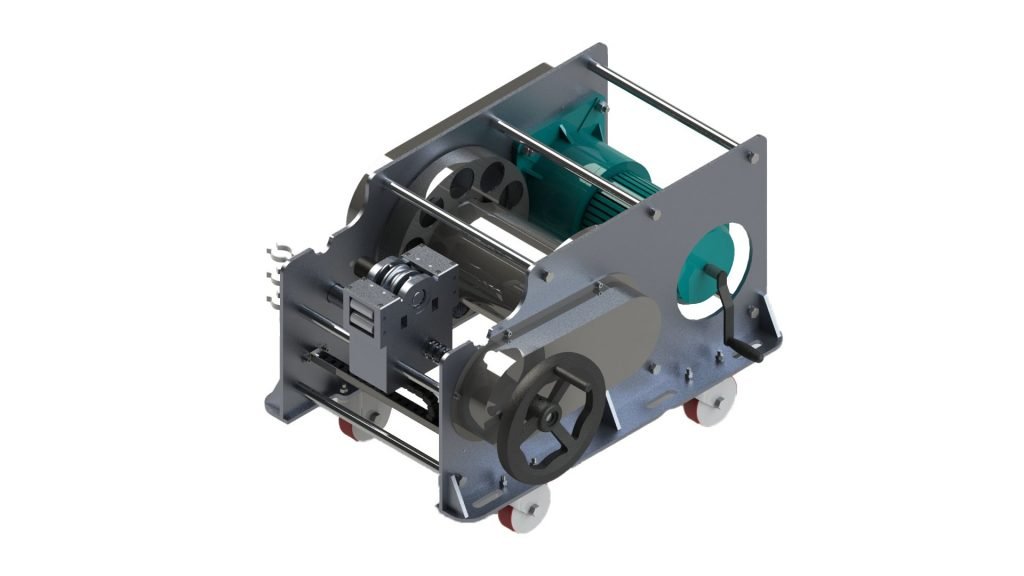

Industrial Logging Winch

Share

This product is primarily used for exploration drilling operations and can be flexibly configured for various applications.

Ultra-large reel capacity, meeting the needs for deeper logging requirements.
Standard reciprocating screw rope arrangement ensures orderly rope arrangement during multi-layer winding of the drum.
The overall structure adopts an aluminum alloy design, which is aesthetically pleasing and offers advantages such as lightweight and corrosion resistance.
Equipped with multi-core slip ring relays and absolute value encoders, it can be connected to PLC control systems.
It can display various operational data of the winch in real time, including rope payout length, payout speed, and wire rope tension value.

Model：150 KG Cable diameter：5.6mm Rope Length：450m Motor power：0.75kw Thick rope：5.6mm Work level：M4 Average rope speed：25m/min Model：150 KG A（Length）647mm B（Width）788mm C（Height）408mm The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
