Industrial Winch

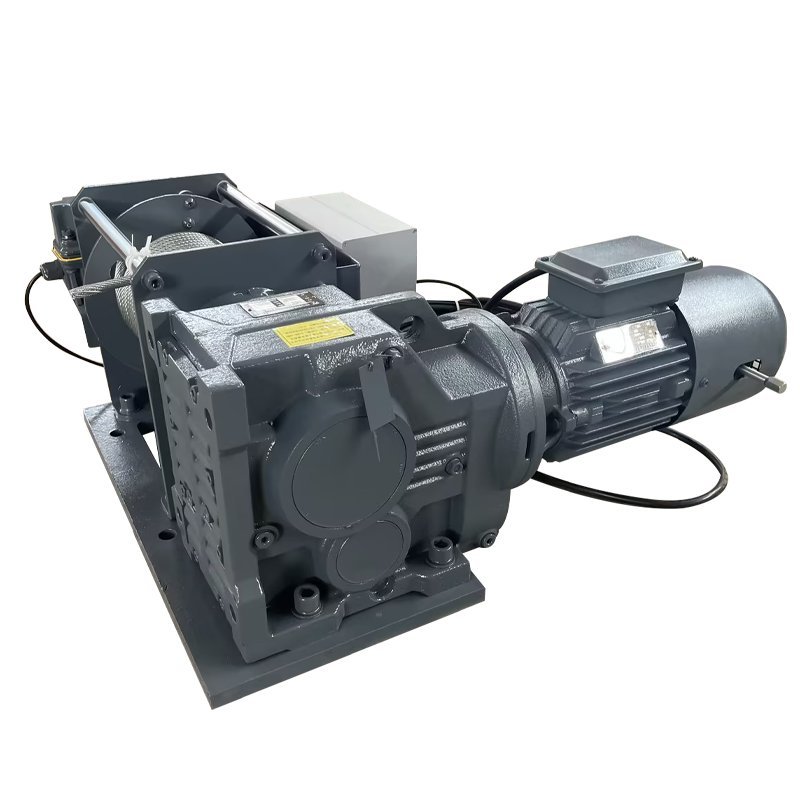

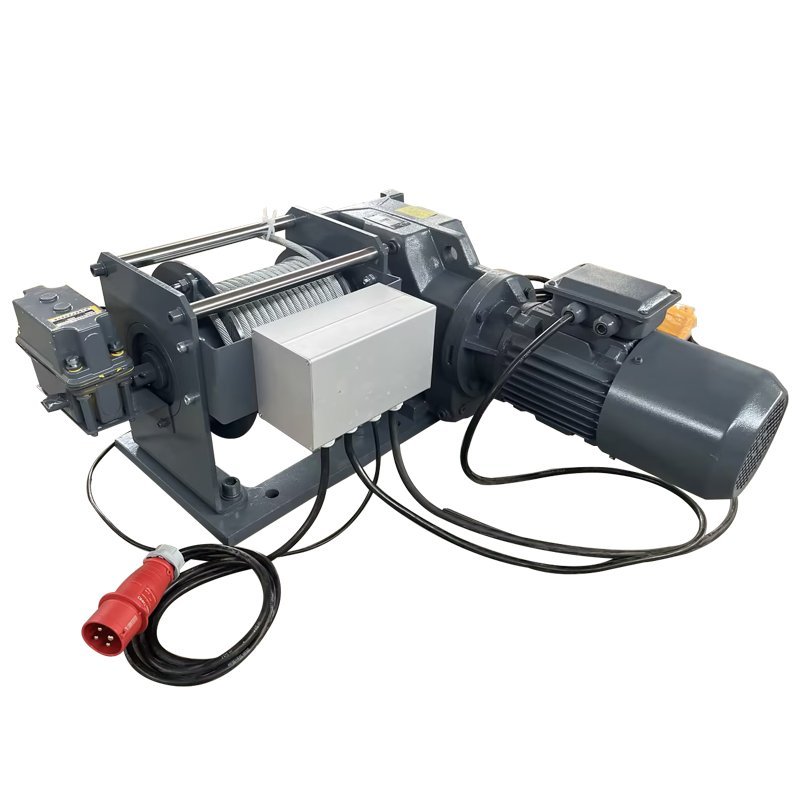

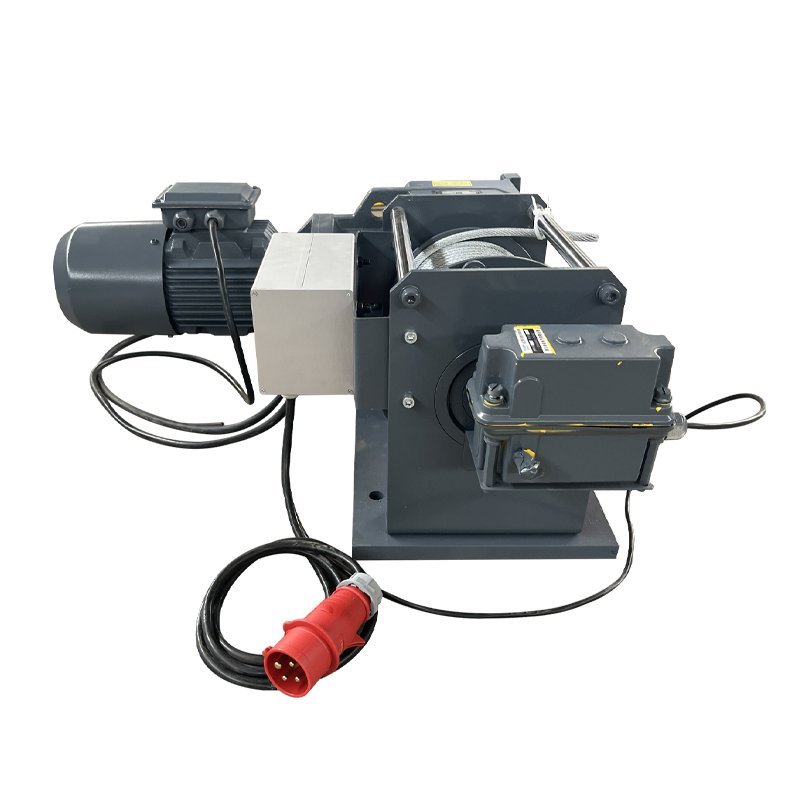

This industrial electric winch is a customizable device mainly used in lifting scenarios. It can be installed face to face on both sides, with a specification of 1.5 tons, and can be customized with a specification range from 0.3 tons to 10 tons. Users can customize parameters such as load, speed, control method, installation method, rope direction, material, etc. according to their needs to meet specific usage scenarios. In addition, the product also considers protective performance, durability, and safety, providing users with a safer and more reliable user experience.

  1. Equipped with a mechanical four-point height limiter to enhance safety and prevent accidental situations during operation.
  2. The use of an aluminum alloy distribution box enhances both the functionality and aesthetics of the product. It is maintenance-free, corrosion-resistant, and has a long service life.
  3. Equipped with an electromagnetic braking motor and K-series hardened gear reducer, this winch enhances operational efficiency and stability, improving the overall user experience.
Industrial Winch - 1
Model:1500KGMotor power:1.5KWOutput speed:4.84m/minMotor reducer Rated output Torque:1301N.m
Reduction gear ratio:135.28:1Reducer output speed:10rp/minLifting weight:1500 kgSelf-weight:150kg
Wire rope diameter:10mmTotal length of the wire rope:8mDrum rope capacity:6m

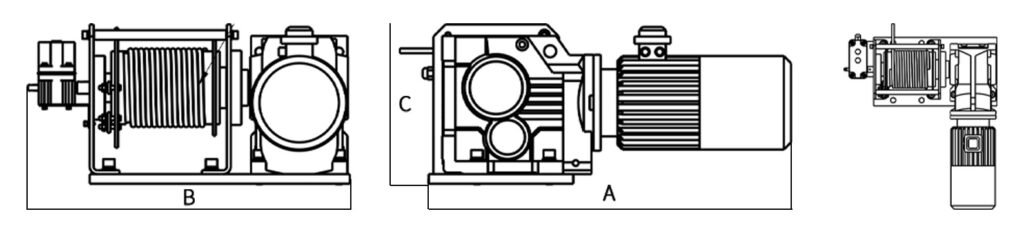

Model:1500 KGA(Length):752mmB(Width):668mmC(Height):332mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
