I. Project Background and Core Challenges

Project Overview

Customized umbilical cable winch system for a Dubai-based manufacturer of skyscraper window-cleaning robots. The client provides cleaning robot solutions for globally renowned skyscrapers, requiring two rooftop-mounted winches to deliver high-pressure water supply, 220V power, and real-time communication while synchronizing with the robot's aerial lifting operations. Installed atop high-rise buildings, both winches must operate in sync with robots ascending/descending hundreds of meters while withstanding Dubai's extreme outdoor conditions of high temperatures and strong winds.

Core Challenges

1️⃣ Dual Cable Synchronization Difficulty

Traditional winches lack synchronized control mechanisms. As cables and water hoses retract/deploy asynchronously, entanglement and abrasive damage frequently occur. During robot elevation, even slight speed discrepancies between the two independent winches can cause cable entanglement or snapping—posing significant safety hazards at hundreds of meters above ground.

2️⃣ Installation Space & Load Capacity Constraints

Conventional steel winches are heavy, placing substantial load on rooftop installations and complicating transportation. Installation on high-rise rooftops demands efficient use of premium space, where traditional equipment struggles to fit within confined areas.

3️⃣ Inflexible Speed Adjustment

Fixed deployment speeds cannot adapt to the robot's operational rhythm, compromising cleaning efficiency and equipment stability. Winches fail to respond in real-time when the robot's lifting speed changes.

4️⃣ Simplistic Cable Management

Long-distance operations often suffer from signal interference and power interruptions. Conventional winches feature rudimentary cable management, leading to tangled layers and snagged cables during multi-level deployment. This causes cable compression damage, disrupting normal robot operation.

5️⃣ Poor Environmental Adaptability

Equipment must endure prolonged exposure to high-altitude winds, temperature fluctuations, and weathering. Conventional devices lack corrosion resistance and high-temperature tolerance, rendering them unsuitable for long-term outdoor operation.

II. Core Technical Requirements

Following multiple technical discussions, the client specified the following requirements:

Synchronization Accuracy: Dual winches must achieve precise synchronized lifting/lowering, with deployment/retraction speeds dynamically synchronized to robotic movements without noticeable deviation.

Drive Control: Utilize servo motor drive + PLC programming control to ensure operational precision, enabling integration with robotic control systems.

Tension Capacity: Cable winch rated at 40kg pulling force to meet robot power supply and communication needs.

Speed Adjustment: Stepless adjustment from 0.1-0.4m/s to accommodate varying lifting speeds.

Lightweight Design: Equipment must be lightweight for manual rooftop handling, installation, and debugging, with self-weight under 50kg.

Environmental Adaptability: Corrosion-resistant and high-temperature tolerant for sustained outdoor operation.

Customization Capability: Cable length and drum specifications can be tailored to building height, with reserved expansion space for compatibility with various robot models.

III. KLD Customized Solutions

KLD provides bespoke solutions centered on “synchronized control, stable transmission, and lightweight adaptation” to achieve seamless integration with window-cleaning robots, addressing project conditions and client requirements.

System Composition

Core Solution Approach

Customized Upgrades

Tailor reel specifications and cable lengths to building height, optimize 150mm reel wiring space, reserve standard communication interfaces, and achieve integrated operation with robotic control systems.

IV. Core Technical Parameters

V. Design Highlights

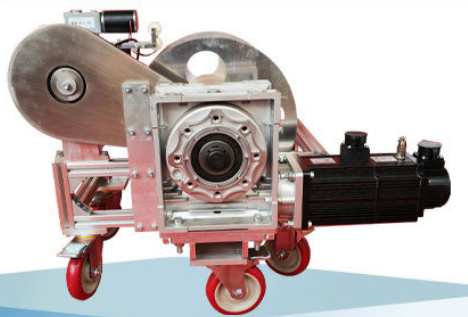

✅ Full Aluminum Alloy Lightweight Body

Constructed entirely from high-strength aluminum alloy, the unit weighs only 40kg, balancing strength with lightweight design. Corrosion-resistant and heat-tolerant, it is suitable for long-term outdoor operation on rooftops, significantly reducing installation load pressure.

✅ Precise Synchronized Control

Equipped with a 1.2kW servo motor paired with a 60:1 reduction ratio and PLC closed-loop control, the dual winches achieve high synchronization precision. They dynamically adjust to robotic movements in real-time, ensuring smooth operation.

✅ Anti-Tangling Cable Management

Standard reciprocating lead screw cable guides enforce multi-layer, orderly cable routing. This eliminates tangling and pulling issues in aerial pipelines at the source, guaranteeing uninterrupted power supply and communication.

✅ Easy Installation & Maintenance

Polyurethane swivel casters at the base facilitate positioning without heavy lifting equipment, enabling single-person setup and commissioning. Modular design simplifies replacement of wear parts, minimizing operational costs.

✅ Stepless Speed Adjustment

Cable release speed is steplessly adjustable from 0.1–0.4 m/s, precisely matching robot lifting rhythms to enhance cleaning efficiency and equipment stability.

✅ Customizable Adaptation

Cable length and reel specifications can be adjusted as needed to accommodate varying building heights and robot models. Standard communication interfaces are reserved for high versatility.

VI. Application Scenarios

1. Super-high-rise buildings: Umbilical cable deployment for exterior window-cleaning robots and curtain wall inspection robots

2. Aerial operations: Synchronized cable deployment for aerial work platforms, lift-type maintenance equipment, and water supply lines

3. Shipyards: Lightweight shore-to-ship connection cables and signal cable deployment operations

4. Industrial Settings: Industrial pipeline deployment scenarios requiring lightweight equipment, precise deployment accuracy, and synchronization.

VII. Project Value & Summary

Kailude's customized umbilical cable winch solution successfully addressed the core pain points of our Dubai client, achieving the key objectives of “synchronized precision, stable reliability, and convenient installation.”

Core Value Delivered to the Client

✔ Enhanced Safety

Synchronized control design completely eliminates cable entanglement and damage from pulling, reducing equipment failure rates and ensuring safety during operations at heights of hundreds of meters.

✔ Installation Convenience

Weighing only 40kg with polyurethane swivel casters, no large lifting equipment is required. A single operator can complete rooftop installation, significantly improving efficiency.

✔ Operational Reliability

Automatic cable retraction via reciprocating lead screw + DC auxiliary motor ensures smooth cable release during emergencies, enhancing system robustness.

✔ Extended Equipment Lifespan

Automatic, orderly cable management prevents compression wear caused by tangled layers, prolonging service life and reducing long-term maintenance costs.

✔ Enhanced Operational Efficiency

Stepless speed adjustment (0.1-0.4m/s) adapts in real-time to robot movements, enabling seamless coordination and boosting cleaning efficiency.

✔ Environmental Adaptability

Full aluminum alloy body + industrial-grade sealing design withstands high temperatures, strong winds, and corrosion for stable long-term outdoor operation.

Project Summary

This Dubai skyscraper window cleaning robot project went beyond supplying two winches. Under constraints of limited installation space, high synchronization precision, and clear lightweight requirements, we delivered:

An industrial-grade window cleaning robot winch solution featuring

Delivering an industrial-grade winch solution for window cleaning robots featuring:

40kg pulling force, dual-machine synchronization, automatic cable retraction, and stepless speed adjustment.

Post-delivery feedback confirmed stable system operation, meeting synchronization precision requirements while completely resolving previous cable management challenges. This project exemplifies Kailude's expertise in specialized winches, establishing a replicable professional solution for automated cleaning equipment in super high-rise buildings.

VIII. Frequently Asked Questions (FAQ)

Q1: Can cable length be customized based on building height?

A: Yes. Kailude customizes drum specifications, cable length, and retraction/extension speed parameters to suit various super-high-rise project needs. The 150mm drum diameter optimizes cable routing space, accommodating operations at different heights.

Q2: Can the equipment withstand harsh rooftop weather conditions?

A: Yes. The full aluminum alloy body with industrial-grade sealing design withstands high temperatures, strong winds, and corrosion, meeting Dubai's requirements for long-term stable outdoor operation.

Q3: Is routine maintenance complicated?

A: No. The modular structure requires only simple daily checks of cables, guide rollers, and other wear parts—no specialized technicians needed, keeping maintenance costs low. Polyurethane swivel casters enable easy mobility and convenient servicing.

Q4: Can it interface with window cleaning robots from other brands?

A: Yes. The control system includes standard communication interfaces. Compatibility protocols can be developed based on robot communication protocols, ensuring high adaptability. The servo-driven + PLC control architecture guarantees compatibility with systems from various brands.
