Large Industrial Winch | 300m Long Stroke 30m/min Speed EU Standard Mine Winch

Key Features & Benefits

1. High-performance motor the R-series industrial gear motors offer high efficiency and durability, capable of withstanding the intense conditions of mining environments.
2. Linear layout design this design not only saves space but also enhances the stability of the equipment, reduces vibration, and ensures safe operation under heavy loads.
3. Ultra-long stroke with quick retraction with a maximum stroke of 300 meters and a retraction speed of up to 30 meters per minute, this design meets the high-efficiency demands for material hoisting in mines, significantly enhancing operational efficiency.
4. Electromagnetic brake system the electromagnetic brake design can respond quickly in emergency situations, ensuring operational safety and reducing the likelihood of accidents.
5. Modular designIt facilitates maintenance and disassembly, reduces equipment downtime, enhances maintenance efficiency, and lowers subsequent maintenance costs.
6. High-quality benchmarking product quality is strictly aligned with European standards, ensuring competitiveness in the international market and meeting the demands of high-end clients.
7. Customized services we can provide customized winch solutions tailored to the specific needs of different usage scenarios.
8. Bulk supply capability we are confident in our ability to meet customers’ bulk order demands, ensuring stable supply capability to support their production schedules.

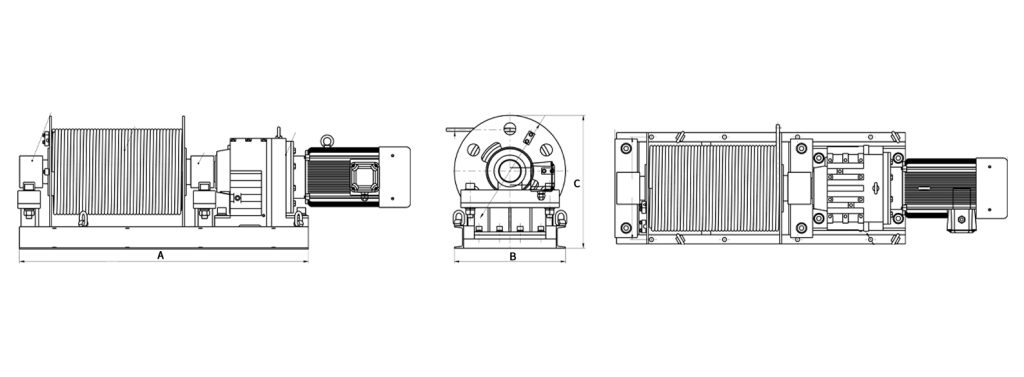

Technical Specifications

The specifications allow users to quickly understand the performance range and configuration features of the device.

Ideal Applications

Core Mining Operations:
Designed for underground lifting in metal and coal mines, long-distance ore/material hauling, and equipment lowering and hoisting. The 300-meter ultra-long travel is ideal for deep mine operations, while the 30 m/min high-speed hoisting matches the efficiency demands of mining workflows. The electromagnetic braking system ensures safe operation under complex underground conditions.

Tunnel & Underground Engineering:
Suitable for heavy material transport, equipment traction, and long-distance muck transfer in highway/railway tunnels and underground utility corridors. The straight-line structural layout offers high stability with low vibration, making it ideal for confined tunnel spaces. The modular design allows easy on-site maintenance without delaying project schedules.

Port & Dock Heavy-Duty Operations:
Engineered for long-distance traction of large cargo and heavy equipment handling in deep-water ports and freight terminals. Fast hoisting and lowering significantly improve cargo handling efficiency, while the electromagnetic braking system ensures safety during sudden or dynamic operating conditions. Built to European standards for continuous high-load port operations.

High-Rise Construction & Long-Distance Applications:
Perfect for vertical lifting of construction materials and long-distance traction of steel structures in super high-rise buildings and large bridge projects. The 300-meter ultra-long travel meets the demands of high-rise operations, while the straight-line layout saves installation space. A high-strength motor supports heavy-duty lifting requirements.

Fully Customizable Solutions

This large-scale industrial winch is developed based on a modular design and European-standard engineering, focusing on key requirements such as travel distance, load capacity, speed, installation, and environmental adaptability. It offers full-dimensional customization to precisely meet the specific demands of various heavy-duty applications. The main customization options are as follows:

1. Travel Distance & Hoisting Speed Customization
In addition to the standard 300 m ultra-long travel and 30 m/min high-speed operation, the drum rope capacity can be customized (50–400 m) to suit both short-distance heavy-load and ultra-long-distance traction needs. The transmission ratio of the R series motor can also be optimized to customize hoisting speeds (5–40 m/min), balancing efficiency and operational stability for different working conditions.

2. Power & Load Customization
Motor power and torque of the R series industrial geared motor can be tailored according to load requirements, covering light-, medium-, and heavy-duty applications. Enhanced wear resistance and high-temperature tolerance ensure durability under intensive operations. The motor can also be upgraded to a variable frequency (VFD) version, enabling stepless speed control for precise traction and lifting tasks.

3. Braking & Safety Customization
In addition to the standard electromagnetic braking system, braking response speed and locking force can be enhanced for extreme heavy-load or high-altitude operations. Optional safety components include mechanical limiters, overload protection, slack rope detection, and emergency stop buttons—creating a dual safety system combining electromagnetic braking with multiple mechanical protections to minimize operational risks.

4. Structure & Installation Customization
Beyond the standard straight-line layout, the machine structure can be optimized to fit specific installation spaces, offering compact or widened configurations for confined environments such as tunnels or equipment-dense workshops, as well as large-scale installation sites like ports and construction projects. Installation methods (horizontal, vertical, or base-mounted) can be customized, along with dedicated heavy-duty bases and mounting brackets to enhance stability and reduce vibration under high-load conditions.

Our engineering team works directly with laboratory directors, system integrators, and rescue equipment specifiers to deliver fully validated solutions that meet strict performance and safety standards.

Why Choose Our Large-Scale Industrial Winch?

Developed with high-intensity mining operations as the core focus and strictly aligned with European standards, this large-scale industrial winch is fully optimized to address key challenges in heavy-duty industrial work, including efficiency, safety, durability, and maintenance. Compared to conventional large winches, it offers clear advantages in operational efficiency, safety assurance, durability, and adaptability—making it the preferred solution for mining, tunneling, ports, and other heavy industrial environments. Key benefits include:

• 1. European-Standard Quality — Durable & Built for High-Intensity Operations

• 2. R Series Industrial Gear Motor — High Efficiency & Strong Load Capacity

• 3. 300 m Ultra-Long Travel + 30 m/min Fast Hoisting — Maximized Efficiency

• 4. Electromagnetic Braking System — Instant Safety Response

• 5. Straight-Line Layout — Space-Saving & Multi-Scenario Adaptability


Frequently Asked Questions (FAQ)

1. For the 300 m ultra-long travel, does the wire rope spool neatly during operation? Is there any risk of tangling?
The drum is designed with European-standard grooving and paired with a precise rope-guiding system. Even with a 300 m long rope travel, the wire rope is spooled neatly and orderly, completely preventing tangling, overlapping, or jamming. This ensures continuous and stable long-distance operation.

2. How does the high efficiency of the R series industrial geared motor manifest? What advantages does it have over conventional motors?
The R series industrial geared motor offers much higher transmission efficiency than standard motors, minimizing power loss and saving energy. It is made from high-strength, wear-resistant materials with excellent vibration and high-temperature resistance, capable of enduring high-intensity continuous operation in mining and similar environments. Its service life is 2–3 times that of ordinary motors, significantly reducing replacement costs.

3. What is the response time of the electromagnetic braking system? Can it quickly lock in the event of a power outage underground?
The electromagnetic brake responds within milliseconds. In emergency scenarios such as sudden power failure or equipment malfunction underground, it can instantly lock the drum, effectively preventing material or equipment from slipping. It fully meets the safety requirements for high-risk underground operations.

4. For the straight-line layout, what is the overall footprint? Can it fit in narrow tunnel spaces?
The straight-line layout features a compact linear design, reducing the footprint by over 30% compared to traditional winches. The machine dimensions can be customized to match the actual tunnel space, making it ideal for confined environments such as tunnels or underground shafts without compromising load capacity or operational performance.
