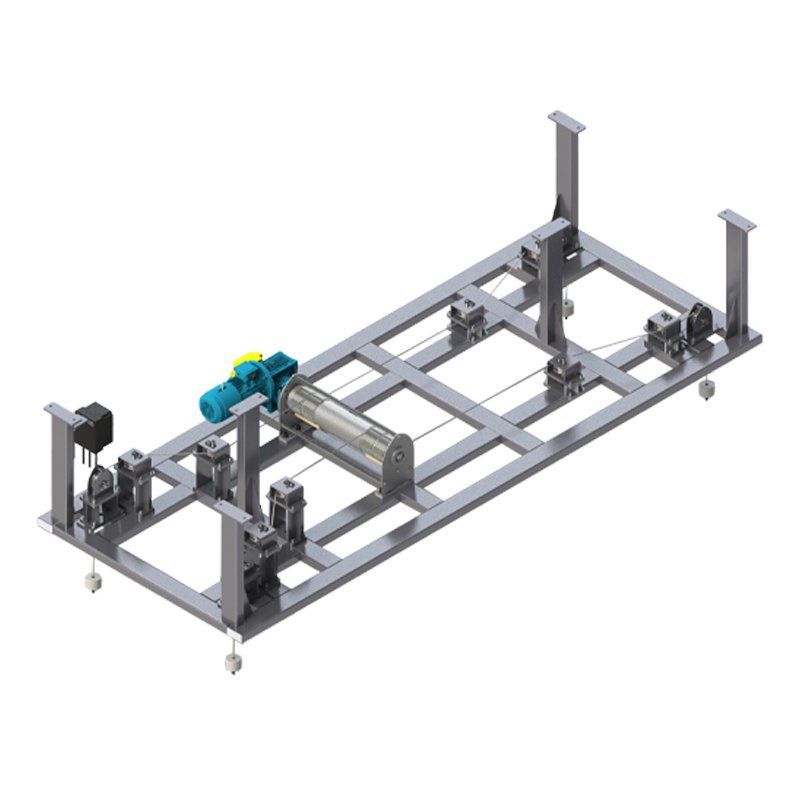

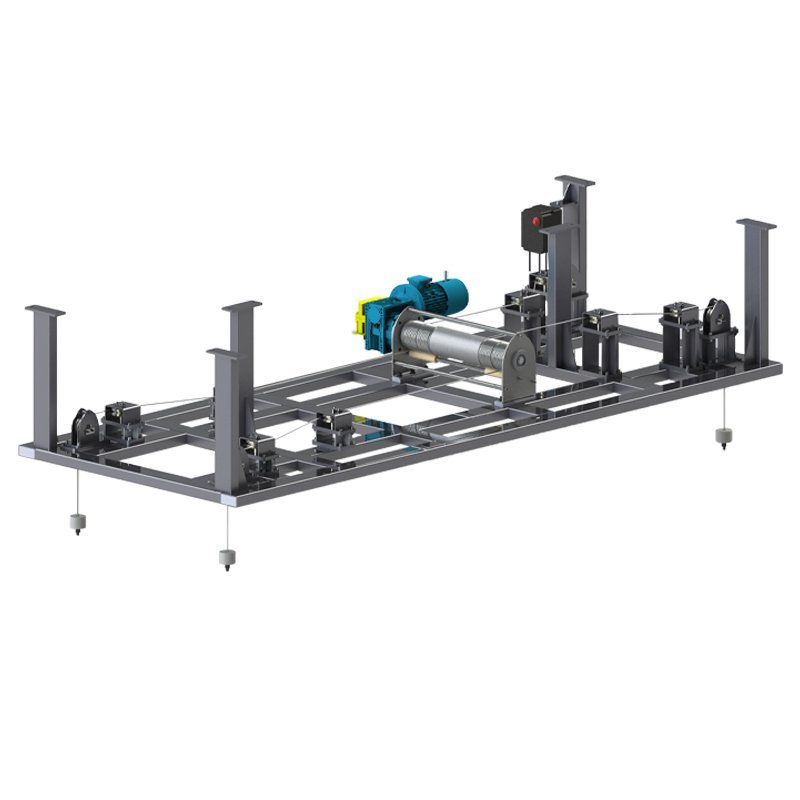

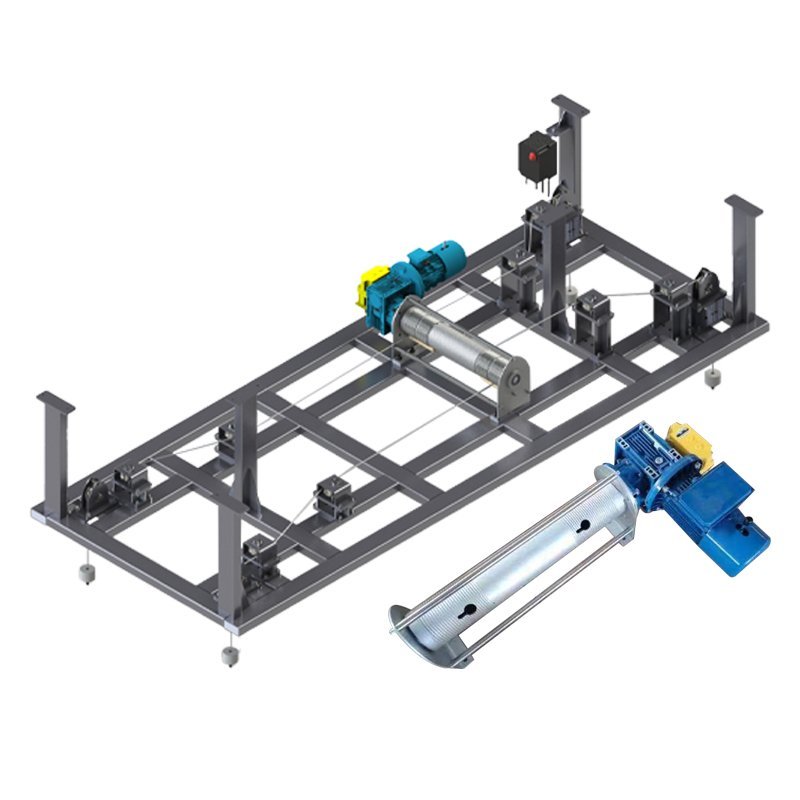

The four-rope synchronous lifting winch is powered by a single geared motor. By adjusting the rope direction through pulleys, it achieves four-rope synchronous lifting. The equipment operates smoothly with low noise, making it ideal for hoisting tables or large structural components.

Design advantages:

  1. Single geared motor drive: Provides stable power output to ensure a smooth and reliable lifting process.

  2. Four-rope synchronous design: All four ropes operate in perfect synchronization, ensuring balanced load distribution for enhanced stability and safety.

  3. Low-noise operation: Built with high-quality materials and precision manufacturing, effectively reducing noise and creating a more comfortable working environment.

Inquire Now contact us

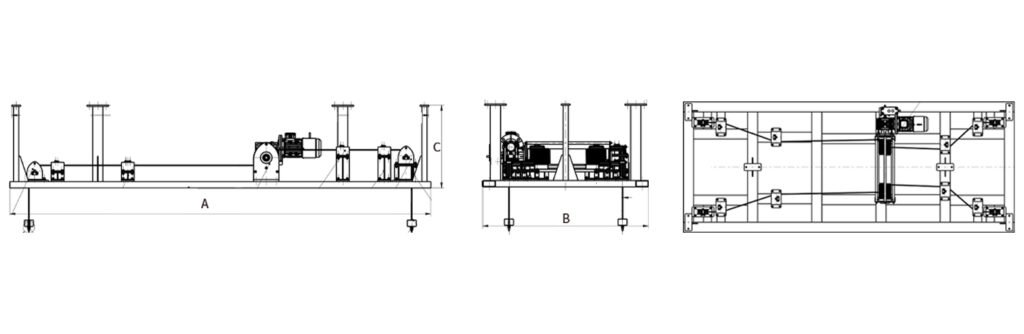

A two-dimensional drawing clearly presents the equipment’s layout and core structure.

Lifting winchesFour-rope synchronised low-noise electric lifting equipment for tabletop or large component lifting winches - 1

The parameters provide a quick understanding of the equipment’s performance range and configuration features.

Model：300 KGMotor power：1.5 KWRope out speed：5m/minLifting height：5m
Lifting speed：2m/min
Model：300 KGA（Length）：3300mmB（Width）：1300mmC（Height）：650mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
