Long-Stroke Portable Electric Winch Manufacturer

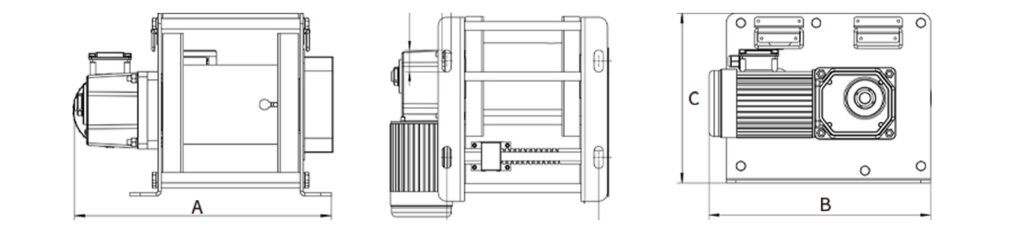

A two-dimensional drawing clearly presents the equipment’s layout and core structure.

Key Features & Advantages

Extended Long-Range Capability: True long rope electric winch performance with 300–400m travel – enables deep pipeline access and reliable long-distance traction when equipment gets stuck.
Ultra-Lightweight & Portable: Compact body with integrated carry handle makes this lightweight electric winch easy to transport and reposition on-site, boosting operational efficiency.
Superior Rope Management: Screw-type rope guider plus protective cover keeps the high-temperature-resistant Kevlar rope neatly arranged, preventing tangling, jamming, or damage during extended pulls.
Quiet & Efficient Drive: Right-angle silent motor provides steady power output with exceptionally low noise – a genuine quiet electric winch that enhances comfort and reduces disturbance in working areas.
Robust Component Protection: Top guard plate shields internal parts from external impacts, ensuring long-term durability in harsh conditions.
High Customizability: Load capacity, voltage (220-380V), speed, rope type, and other parameters can be tailored to exact project requirements.
Enhanced Safety & Reliability: Stable operation, protective features, and lightweight construction combine for confident performance in critical applications.

Technical Specifications

Parameter	Specification
Travel / Rope Capacity	300–400 meters
Rated Pulling Force	100kg (customizable up to 8000kg)
Rated Voltage	220V / 380V
Motor Type	Right-angle silent motor (high efficiency)
Rope Material	High-temperature-resistant Kevlar
Rope Guidance	Screw-type guider with protective cover
Design Features	Lightweight body with portable carry handle, top guard plate
Pulling Speed	Customizable (typically 8-15 m/min)
Noise Level	Ultra-low noise (≤65dB)
Protection Rating	IP54 standard (higher ratings customizable)
Operating Temperature	-10°C to +60°C (Kevlar rope suitable for higher temps)
Safety Devices	Overload protection, emergency stop, rope protection

Model：100KG	Motor power: 0.4 kW	Rated tension: 100 kg	Rope diameter: 4 mm	Drum speed: 12 rpm	Average rope speed: 7 m/min
Rope length: 400 m

Model：100KG

A（Length）：650mm

B（Width）：515mm

C（Height）：350mm

Applications

Pipeline Inspection & Maintenance (Primary): Custom-designed for Huibo Robotics – deploys cameras, sensors, or tools deep into 200mm pipelines for inspection, cleaning, and fault location.
Mining & Underground Operations: Long-distance traction and recovery in tunnels and wells where portability and quiet operation are essential.
Construction & Engineering: Horizontal pulling and equipment positioning on sites requiring extended reach and easy relocation.
Special & Rescue Equipment: Emergency extraction of stuck devices or personnel support – reliable portable electric winch performance when rapid response matters most.

Why Choose Our Long-Stroke Portable Electric Winch?

Unmatched Reach & Mobility: 300–400m capacity in a truly lightweight electric winch package – far more practical than bulky traditional systems.
Quiet, Reliable Performance: The advanced silent motor makes this a standout quiet electric winch that operates smoothly without disrupting work environments.
Built for Tough Jobs: Kevlar rope, protective guider, and guard plate ensure durability and safe long rope electric winch operation in challenging pipeline and rescue scenarios.
Fully Tailored Solution: Custom configurations let you optimize this portable electric winch for voltage, load, and specific project demands.

Need a reliable long-distance traction solution for pipeline work? Contact us today for customization options and pricing!
Global shipping and dedicated technical support included.
Discover more about our long-stroke portable electric winch series – reach out now.her design and configure the product’s protective performance, durability, safety, and other aspects.
