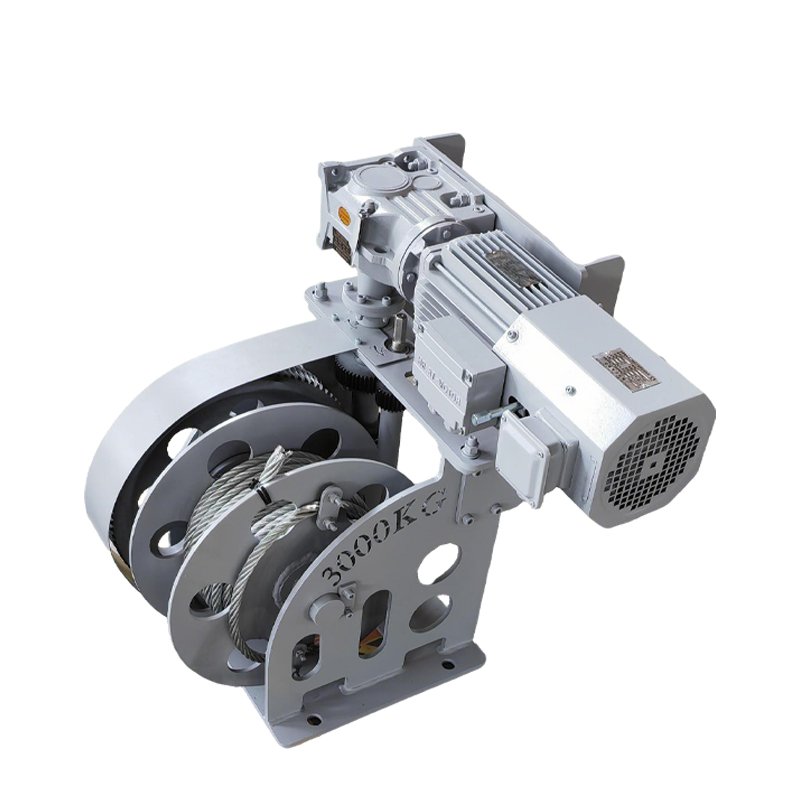

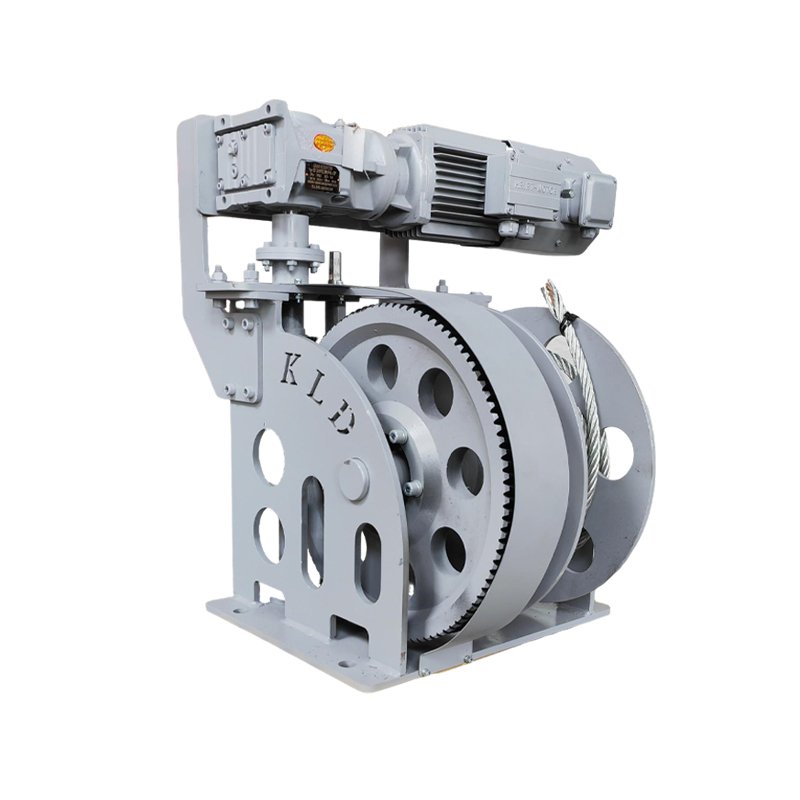

Manual‑electric Integrated Winch

This product is a multifunctional winch integrating both electric and manual operation, suitable for various industrial scenarios requiring stable traction and lifting. The electric drive utilizes a high-efficiency, quiet K-series reduction motor, while the transmission employs a worm gear structure, providing excellent mechanical self-locking performance. The electric module can be quickly detached, allowing a switch to dual-speed manual input mode, ensuring stable operation even during power outages or special working conditions.

  1. Dual-mode drive:Electric and manual modes, meeting the needs of various application environments.
  2. High-efficiency drive system:Equipped with a K-series reduction motor for efficient operation, low noise, and stable performance.
  3. Mechanical self-locking structure:The worm gear transmission features a self-locking function, ensuring safety and reliability during operation.
  4. Modular design:The reduction motor can be quickly detached, and dual-speed input is available in manual mode.
Model:3000kgLifting capacity :3000kgReduction ratio:100:1Output speed:261rp/min
Output torque:52N.mLifting height:2mWire rope diameter:14mmTotal wire rope length:12mm
Net weight:161kg

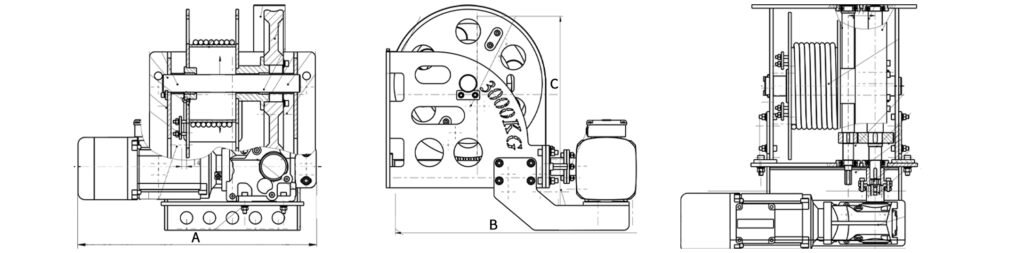

ModelA(Length)B(Width)C(Height)
3000kg675mm709mm637mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
