1. Product Overview

This marine hose reel is designed as a complete solution for high-pressure hydraulic oil transfer on board vessels and offshore installations. It comes pre-configured with:

• 300 ft (≈91 m) of hydraulic hose
• Pressure side hose: 3/4" (19.05 mm)
• Return side hose: 1" (25.4 mm)

The reel drum is protected with a marine-grade, zinc-rich epoxy coating with a dry film thickness of ≥ 200 μm, providing long-term corrosion resistance in saline, humid and UV-exposed environments. A 150 ft pig-tail spiral guard is included for additional hose protection against abrasion and accidental crushing.

The system integrates lock mechanism, stainless-steel fittings, forklift pockets and lifting lugs, so it can be easily moved by forklift or hoisted by crane to different decks or job sites.

2. Key Features & Customer Benefits

2.1 Efficient Manual Hose Handling

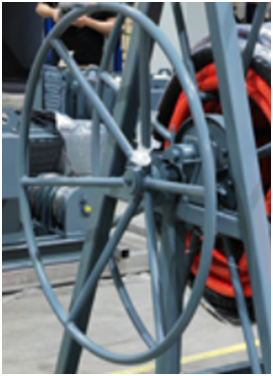

• 1:1 hand-crank design
  Smooth manual operation for quick hose payout and retrieval. Operators can safely wind or unwind 300 ft of hose with reduced effort, ideal where electric or hydraulic drive is not available or not allowed.

• Stable winding, reduced hose damage
  The rigid drum and optimized flange design help guide the hose evenly, minimizing kinks, flattening and premature wear.

2.2 Safe Ratchet Brake Control

• Single-direction ratchet brake
  A built-in ratchet braking device allows the reel to be locked in any position. Operators can stop hose movement instantly to secure the line during operation, inspection or connection.
• Enhanced safety on deck
  Prevents uncontrolled hose run-out and back-driving of the crank, greatly reducing risk to personnel in rough sea conditions or when the hose is pressurized.

2.3 Rotary Swivel for Continuous Oil Flow

• High-pressure rotary swivel system
  An internal high-pressure rotary joint connects the fixed piping to the rotating hose drum. This enables continuous oil transfer while the reel rotates, avoiding hose twist and torque build-up.
• No hose tangling, no flow interruption
  The hose can remain connected under pressure while being gently adjusted or rewound, improving workflow and reducing coupling wear.

2.4 Marine-Grade Anti-Corrosion Protection

• Epoxy zinc-rich coating ≥ 200 μm
  The drum and structural parts are coated with a marine-grade epoxy zinc-rich paint system, ensuring excellent rust protection in salt-mist, rain and UV environments.
• Stainless steel (SS) fittings
  The reel is equipped with SS hardware and accessories to improve corrosion resistance, extending service life and reducing maintenance costs in offshore applications.

2.5 Robust Structure & Easy Handling

• Integrated compact frame
  A space-saving, integrated structure ensures easy installation on deck, platforms, skids or inside equipment rooms.
• Forklift pockets & lifting lugs
  Built-in forklift slots and lifting eyes make the unit easy to move, re-position and load onto vessels or trailers without additional frames.
• Compatible with 3/4" quick couplings
  The system is designed to work with 3/4" quick couplers, allowing fast connection to hydraulic power units, cylinders or other circuits.

3. Typical Applications

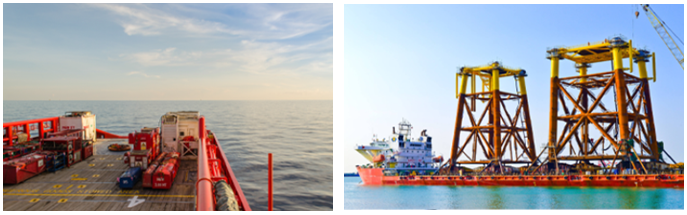

This manual high-pressure marine hose reel is suitable for:

• Hydraulic power supply for deck winches, cranes and lifting equipment
• Mobile or temporary hydraulic power units (HPUs) on vessels and barges
• Shipyard and offshore maintenance – flushing, commissioning, testing of hydraulic systems
• Oil transfer in port, dockside and offshore service operations
• Other industrial sites requiring safe, mobile high-pressure hydraulic hose management

4. Technical Reference (Example Configuration: Model 91M)

• Model: 91M (reference model, customizable)
• Hose capacity: 300 ft (≈ 91 m)
• Medium: Hydraulic oil ISO VG 46 (e.g. Tellus-class oils)
• Pressure side inner diameter: 19.05 mm (3/4")
• Return side inner diameter: 25.4 mm (1")
• Coating: Marine-grade epoxy zinc-rich, DFT ≥ 200 μm
• Included hose protection: 150 ft pig-tail spiral guard
• Locking system: Single-direction ratchet brake
• Structure: Integrated compact steel frame with forklift pockets & lifting lugs
• Connections: Compatible with 3/4" quick-connect couplings
• Operating environment: Marine / offshore / industrial

Note: Working pressure, flow rate, hose type, connection standard and frame dimensions can all be customized according to your project requirements.

5. Customization Options

As an engineering-driven manufacturer, KLD can tailor this marine hose reel to your exact working conditions:

• Hose length & inner diameter (pressure & return lines)
• Working pressure & test pressure rating
• Hose type (standard hydraulic, low-temperature, fire-resistant, etc.)
• End connections (quick couplings, flanges, threaded fittings, regional standards)
• Frame size & mounting interfaces (deck bolting pattern, skid mounting, rail mounting)
• Additional protection (full/partial guards, covers, hose guides, reels with enclosures)
• Future upgrade paths (reserve structures for adding electric or hydraulic drive later)

If you share your system pressure, required flow, oil type, ambient temperature and installation space, our engineers can quickly propose a matching configuration and 2D/3D layout for your approval.

6. Why Work with KLD Winch?

KLD (Beijing Tianheng Kairui Lifting Machinery Co., Ltd.) is a global, full-scenario industrial winch and reel solution provider with its own factory and engineering team in China.

• Engineering-driven customization
  We design hose reels and winches that match your real working conditions—whether it is a small maintenance project or a large offshore operation.
• ISO-supported quality management
  Production is supported by ISO-certified processes, ensuring consistent quality, traceability and compliance with global standards.
• Full-project support
  From early concept, selection and layout, to production, testing and shipment, our engineers and sales team work closely with you to keep your project on schedule.
• Responsive pre-sale & after-sale service
  We offer fast technical communication, drawing support and after-sales assistance to ensure smooth installation and long-term, reliable operation.

7. Request a Quote or Engineering Proposal

To receive a detailed quotation and technical proposal for this manual high-pressure marine hose reel, please provide the following information:

1. Application scenario (vessel type, offshore platform, shipyard, dock, etc.)
2. Medium details (hydraulic oil grade, viscosity, any special requirements)
3. Required hose length (pressure & return) and inner diameter
4. System working pressure & maximum pressure
5. Required flow rate (if available)
6. Installation environment & space (deck layout, available footprint, mounting style)
7. Connection standard (quick couplings, flange standards, special requirements)
8. Any special standards or certificates required (DNV, ABS, CCS, etc., if applicable)

Once we receive your project parameters, KLD will:

• Recommend a suitable hose reel model and configuration
• Provide dimension drawings and technical data for your engineering review
• Offer a competitive quotation and delivery time based on your project schedule
