Marine electric integrated winchEuropean deck with electromagnetic brakeMute and efficient industrial winch

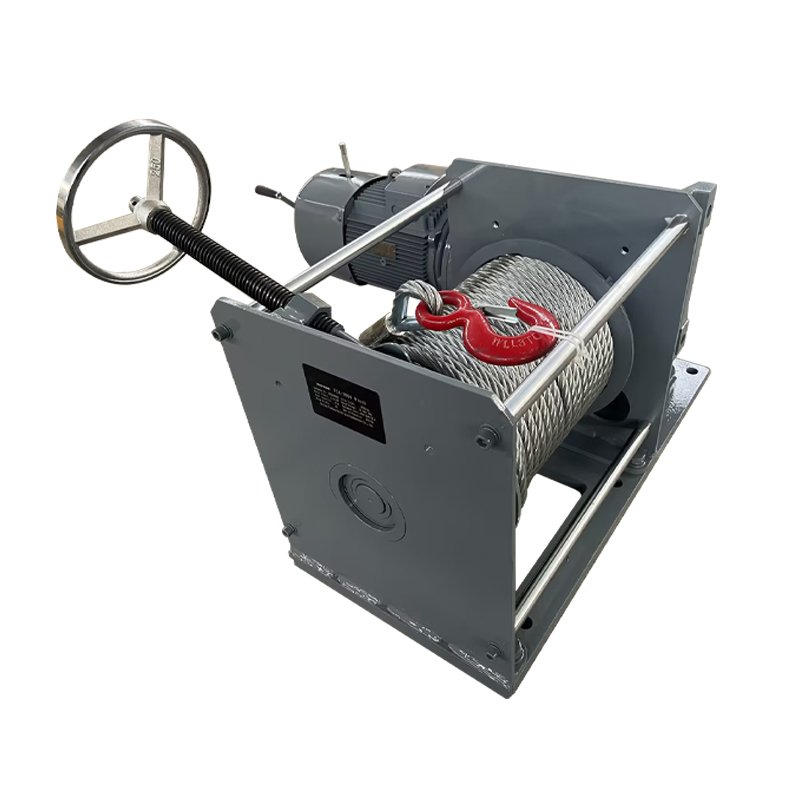

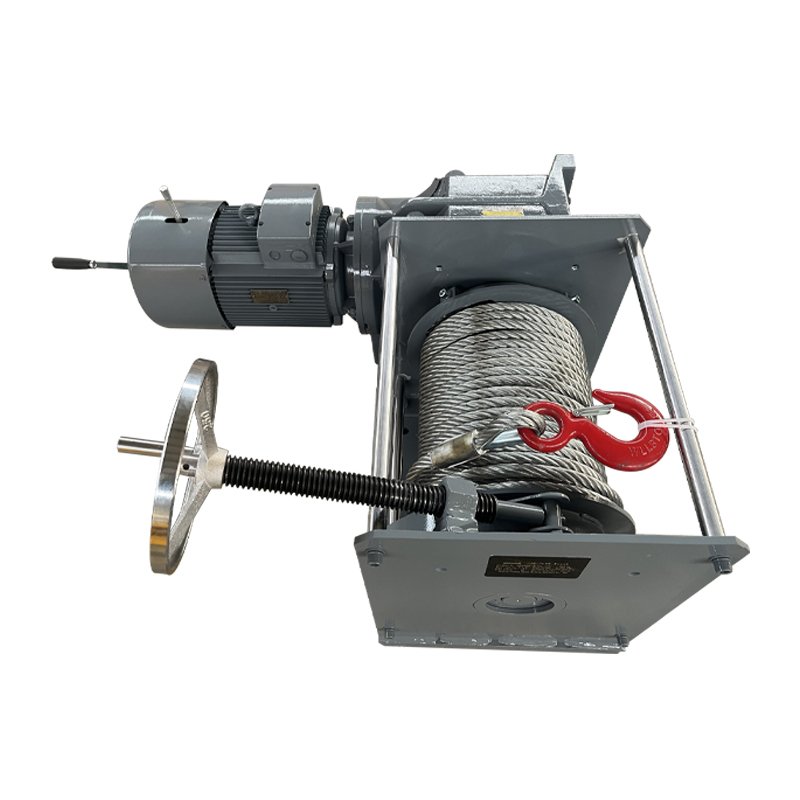

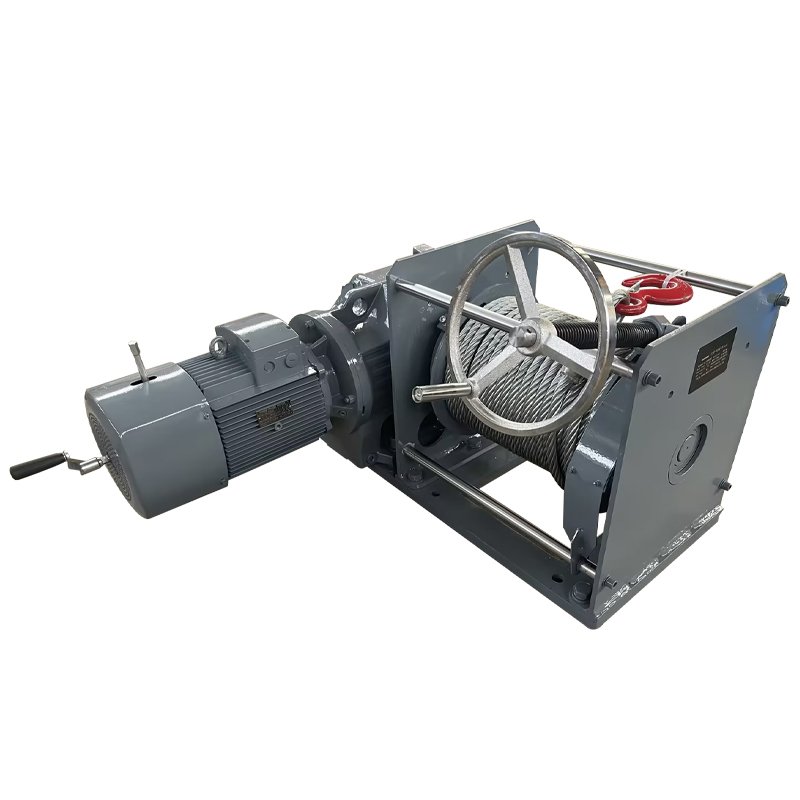

This marine electric winch is equipped with both a manual brake and an electromagnetic motor brake, providing dual braking systems for enhanced safety. It features a hard-tooth surface gearbox and a European-style direct-connect gearbox design, ensuring quiet and efficient performance.

  1. Adjustable motor shaft: The motor's rear shaft can be manually cranked for precise control over lifting and lowering speeds. This feature offers convenience and flexibility for various operational needs.
  2. Dual braking systems: The winch includes independent manual and electromagnetic motor brakes, ensuring robust safety during use.
  3. Durable hard-tooth gearbox: The hard-tooth surface gearbox is highly durable, with a long service life that reduces maintenance costs.
  4. European-style gearbox design: The direct-connect European-style gearbox design is aesthetically pleasing, space-saving, and enhances the overall performance of the product.
Marine electric integrated winchEuropean deck with electromagnetic brakeMute and efficient industrial winch - 1
Model:3200 KGMotor power:5.5 KWRope out speed:11m/minMotor reducer Rated output torque:4273N.m
Reduction gear ratio:123.93:1Reducer Output Speed:12rp/minLifting weight:3200 kgWinch constant load:410kg
Rope Diameter:18mmReel capacity:18mTotal length of wire rope:20m
Model:3200 KGA(Length):1217mmB(Width):973mmC(Height):769mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
