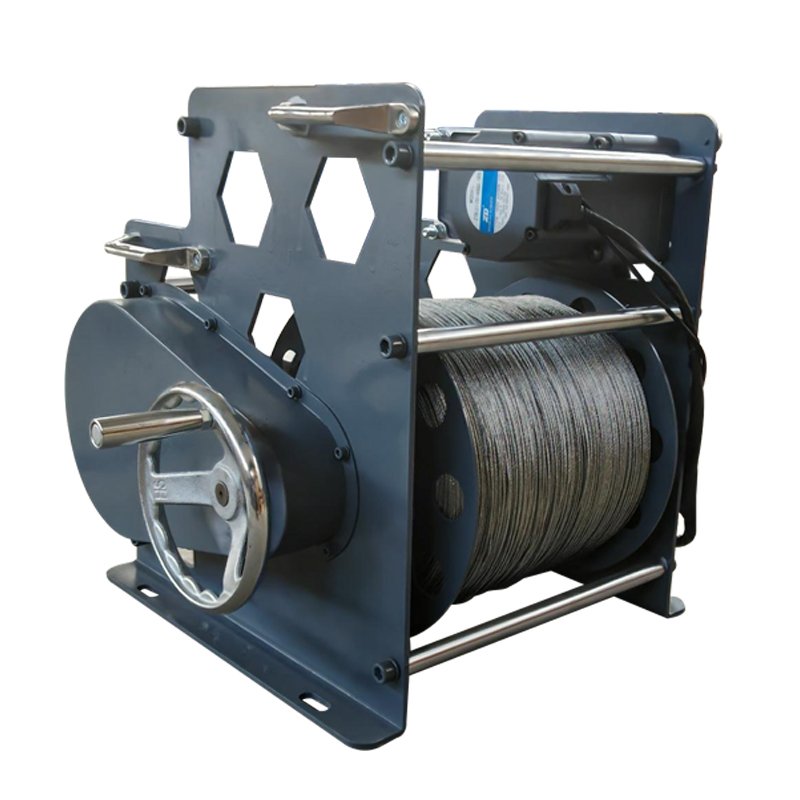

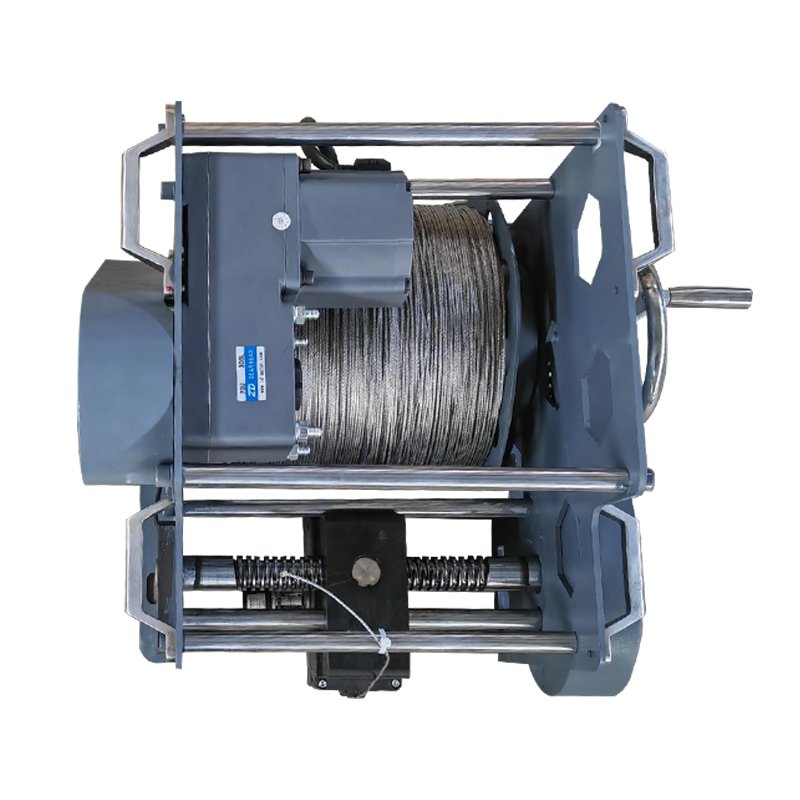

PJL 60kg Parallel Traction Winch is specially designed for pipeline inspection. The complete system consists of two winches installed at both ends of the pipeline—one responsible for rope retrieval and the other for rope release—enabling synchronized operation. The winch is equipped with a gravity-free release function and a torque limiter to effectively protect the motor and wire rope under overload conditions. Manual release is also supported, making it more flexible when used in conjunction with the main traction machine. The control box integrates power and rope payout display, allowing real-time monitoring of operating status.

Design advantages:

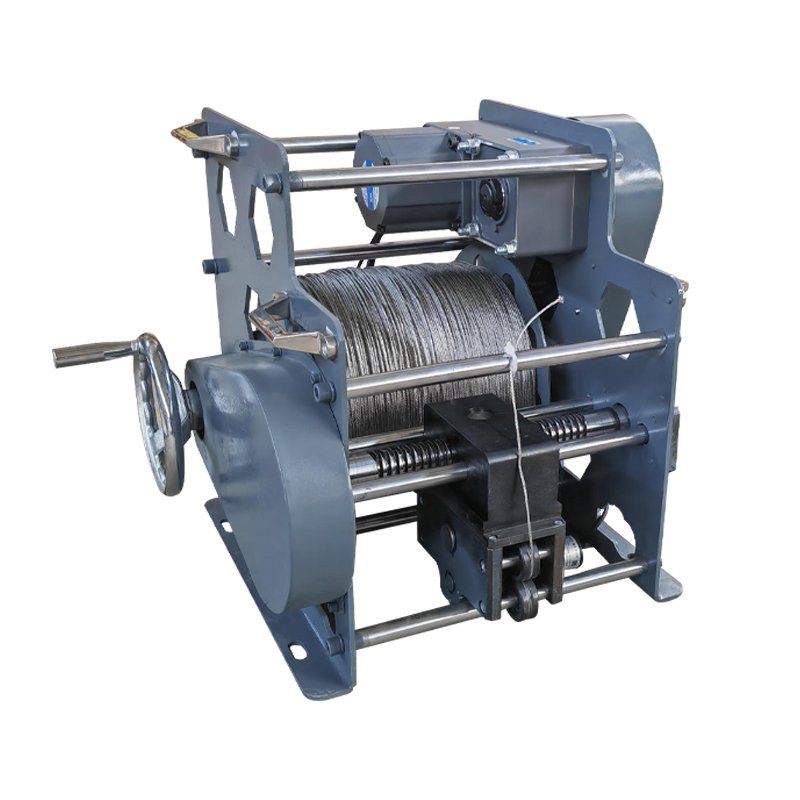

1. Equipped with a reciprocating screw automatic rope arranger, with a maximum lifting height of 2000 meters, ensuring fast rope retrieval/release and neat rope arrangement, suitable for long-distance traction operations.

2. Fitted with a clutch function, allowing manual rope release in a non-powered state for flexible operation under various working conditions.

3. Driven by a DC geared motor with a 48V battery, ensuring stable and reliable operation.

4. Lightweight and portable design, supporting rapid deployment, especially suitable for field use.

5. Built-in meter counter encoder with power display and torque limiter, enhancing safety for both equipment and personnel.

6. Compact and lightweight, easy to carry and deploy, significantly improving operational efficiency.
