HomeProductsRed winch ceiling with remote control winch, follow cable all-in-one machine, can be customized

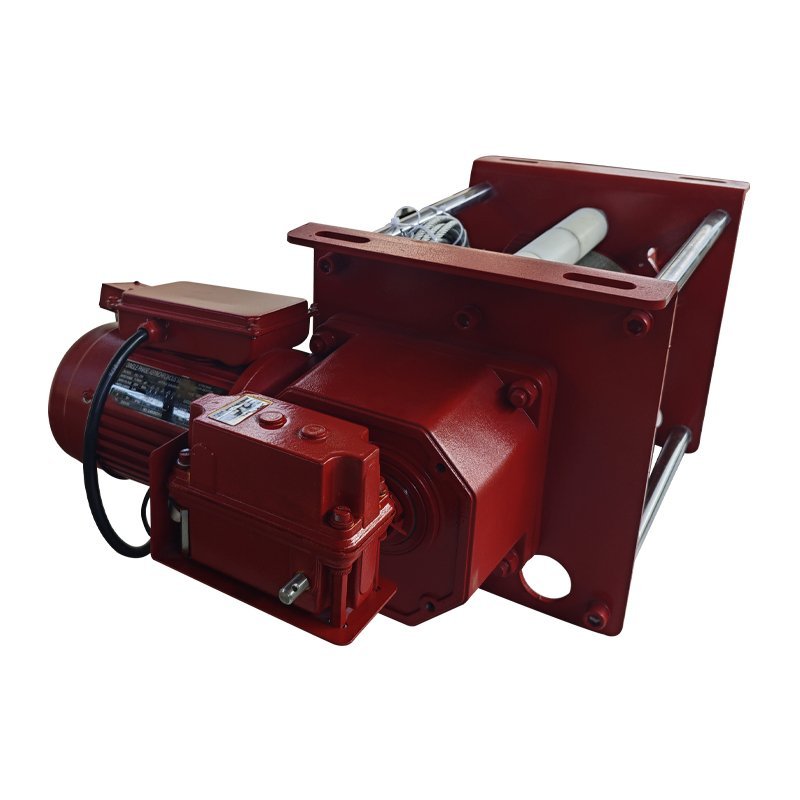

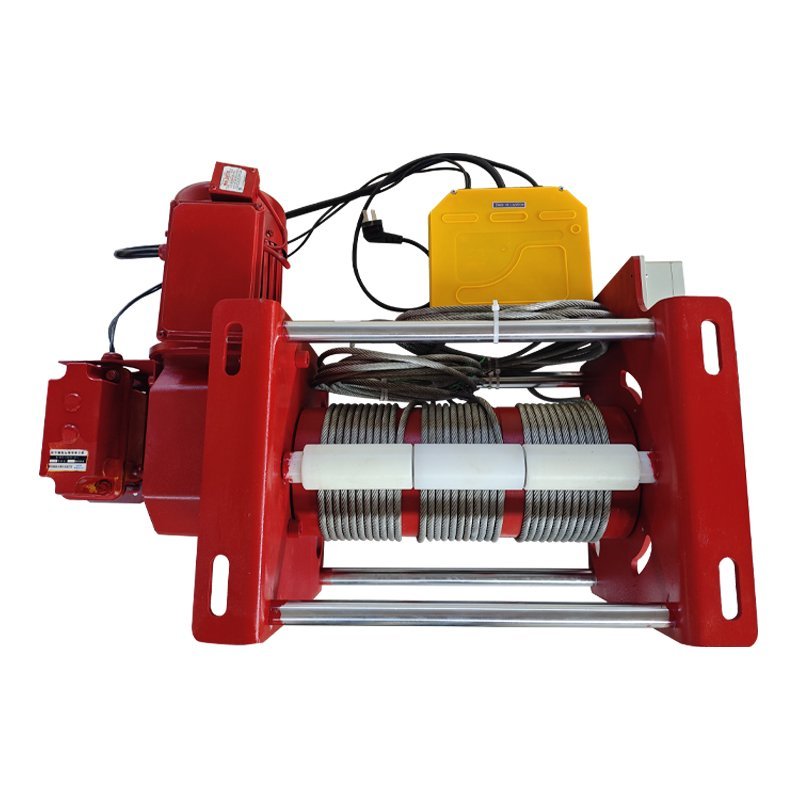

Red winch ceiling with remote control winch, follow cable all-in-one machine, can be customized

This is portable cable integrated machine for 400 kg artistic pendant light, which uses suspended steel wire rope cables to achieve simultaneous power supply during the lifting process.

  1. Using suspended steel wire rope cables to achieve simultaneous power supply during the lifting process, which is convenient and practical.
  2. The drum is equipped with a rope groove and a steel wire rope pressure roller to ensure no jumping, making it safer and more reliable, and improving work efficiency.
  3. Equipped with a turbine type mechanical limiter, it can set the position at four points to achieve precise position control function.
  4. Adopting galvanized anti rotation steel wire rope, it is beautiful, safe, exquisite and durable.
  5. Customizable to three-rope synchronous or four-rope synchronous hoist types, offering flexibility in customization to suit different scene requirements.
Red winch ceiling with remote control winch, follow cable all-in-one machine, can be customized - 1
Model: 400 KGMotor power: 0.75KWRated tensile strength 400 kg:Rope diameter: 8mmRope capacity: 4mRoll speed: 8.8rpm
Average rope speed: 4.2m/min

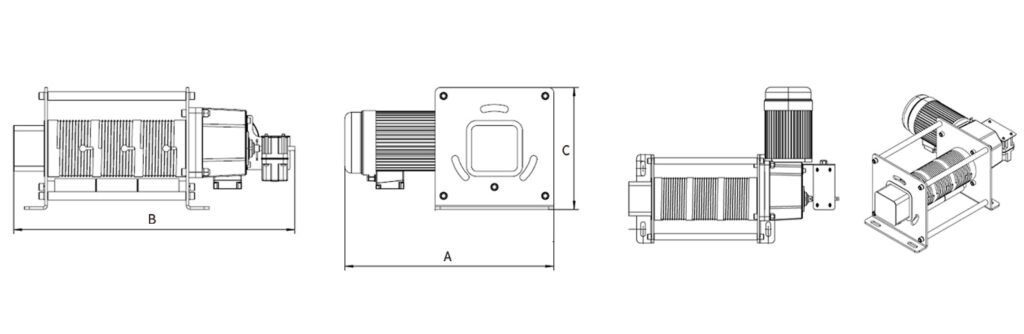

Model: 400 KGA(Length):617mmB(Width): 830mmC(Height):360mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
