Servo Electric Industrial Winch: Fixed Fairlead, Automatic Traverse & PLC Control — Solving Pipe Passage Friction and Automation Integration Challenges

Case Study

A manufacturer in the intelligent automation sector required a winch for a traction application where the wire rope had to pass through a narrow pipe to reach the internal working area. Conventional winches presented three persistent issues: the rope exit point shifted laterally during operation, causing friction against the pipe wall; the rope frequently overlapped and jammed on the drum; and the unit could not integrate reliably with the existing PLC-controlled automation system. These issues led to premature rope wear, unplanned downtime, and inconsistent process control.

KLD designed and supplied a servo electric industrial winch incorporating a fixed fairlead, reciprocating screw traverse, and PLC control. The system eliminated friction during pipe passage, maintained consistent rope layering throughout extended travel distances, and enabled seamless integration with the customer's automation architecture.

1. Industry Background & Core Pain Points

In intelligent manufacturing, equipment integration, and research applications, the winch is increasingly specified as a precision actuator within automated systems, rather than a simple pulling device. Conventional winch designs present inherent limitations across three critical areas:

📌 Friction During Pipe or Confined Passage Applications

As the drum rotates, the wire rope shifts laterally along the drum axis—a mechanical characteristic of conventional winch design. When the rope must pass through a pipe, guide tube, or narrow channel, this lateral movement causes direct contact between the rope and the fixed structure, resulting in uneven abrasion, shortened rope service life, and, in severe cases, jamming.

📌 Rope Overlap and Jamming

Conventional winches rely on passive tension-based spooling. Under variable loads, frequent start-stop cycles, or extended travel distances, this approach consistently leads to uneven rope layering, overlapping, and jamming—requiring manual intervention and causing unplanned downtime.

📌 Insufficient Control Precision for Automation Integration

Standard winches lack the speed and tension regulation accuracy required for precise position control, stable speed profiling, and seamless communication with PLC, MES, or higher-level automation systems.

✔ A programmable winch system with fixed fairlead and automatic traverse is required to address these issues at the source.

2. Key Customer Technical Requirements

For applications involving pipe passage, confined spaces, automation integration, or custom installations, customers typically specify:

1️⃣ No friction during pipe passage — The wire rope must pass through pipes or confined channels without contact with surrounding structures

2️⃣ Reliable automatic spooling — Consistent rope layering regardless of load variation or travel distance; no overlapping or jamming

3️⃣ High control precision — Programmable PLC control with accurate speed, tension, and stroke regulation

4️⃣ Installation flexibility — Compact dimensions with customizable mounting orientation and rope exit direction

3. KLD Customized Solution

KLD addresses these pain points with a servo electric winch integrating four core design features, each matched to a specific engineering requirement:

Fixed Fairlead — A center-mounted guide roller constrains the rope exit point to a fixed axis. Regardless of how the rope moves laterally on the drum, the rope leaving the winch always follows the same path. This eliminates friction when the rope passes through pipes or confined channels.

Reciprocating Screw Traverse — A mechanically synchronized forced-spooling system with traverse pitch precisely matched to the drum groove profile. Unlike passive tension-based systems, this ensures consistent rope layering regardless of load variation, speed changes, or extended travel distances.

Servo Brake Motor + Planetary Gearbox — Provides precise speed and torque regulation with smooth starts and stops, and rapid brake response. Servo technology delivers superior low-speed stability, dynamic response, and torque control accuracy compared to conventional VFD-driven systems.

PLC Control with Touchscreen — Programmable control of speed profiles, torque limits, and stroke parameters. Supports communication with PLC, MES, and higher-level automation systems, enabling seamless integration into intelligent manufacturing and research platforms.

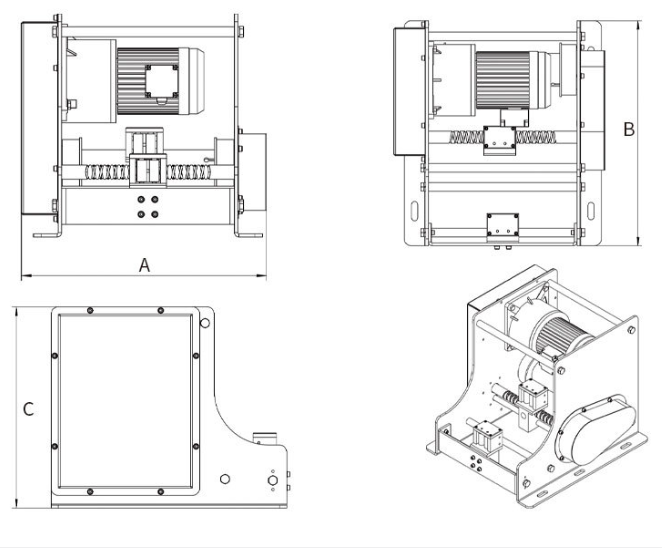

4. Technical Specifications

5. Design Highlights

✔ Fixed Fairlead — Engineered for Pipe Passage Applications

Wire rope naturally shifts laterally as the drum rotates. The fixed fairlead constrains the rope exit point to a fixed axis using a center-mounted guide roller. When the rope must pass through a pipe or confined channel, this design eliminates contact between rope and structure—removing friction-induced wear.

✔ Reciprocating Screw Traverse — Eliminates Overlapping and Jamming

A mechanically synchronized forced-spooling system with traverse pitch matched to the drum groove profile. Unlike passive tension-based systems, this ensures consistent rope layering under all operating conditions—variable loads, frequent start-stop cycles, and extended travel distances.

✔ Servo Brake Motor + Planetary Gearbox — Precision Control

Servo technology delivers accurate speed and torque regulation with smooth starts and stops, and rapid brake response. Low-speed stability and dynamic performance are significantly superior to conventional VFD-driven systems.

✔ PLC Control with Touchscreen — Automation-Ready

Programmable speed profiles, torque limits, and stroke parameters. Communication capabilities enable seamless integration with PLC, MES, and higher-level automation systems.

✔ Fully Customizable — Adapts to Complex Installations

Compact design with full customization for mounting orientation, rope exit direction, materials, and control interface. Custom configurations are supported according to CAD or PDF drawings.

6. Application Fields

Pipe and Conduit Passage — Rope must pass through narrow pipes or channels → Fixed fairlead eliminates friction

Intelligent Manufacturing Traction — Confined-space pulling within automated production lines → Servo + PLC enables precise control

Research & Laboratory Platforms — Programmable load testing with accurate positioning → High-precision speed and tension regulation

Equipment Integration — Winch installed as subsystem within larger machinery → Fully customizable design matches installation constraints

Long-Distance Traction — Extended travel distances requiring reliable spooling → Reciprocating screw ensures consistent rope layering

7. Project Value

Implementation of this winch system delivers measurable engineering outcomes:

Friction eliminated — Constant rope exit axis ensures no contact between rope and pipe/conduit structures; rope service life extended by 2–3x

Overlap and jamming eliminated — Mechanically forced spooling enables continuous operation without manual re-spooling interventions

Automation-ready control — PLC programmability with precise speed and torque regulation enables seamless integration with higher-level systems

Complex installations accommodated — Custom mounting, rope exit direction, and dimensions solve site-specific constraints

Total cost reduced — Extended component life, reduced maintenance frequency, and improved operational efficiency
