Servo electric winch manufacturers supply constant tension programming control aluminium alloy lightweight industrial winch

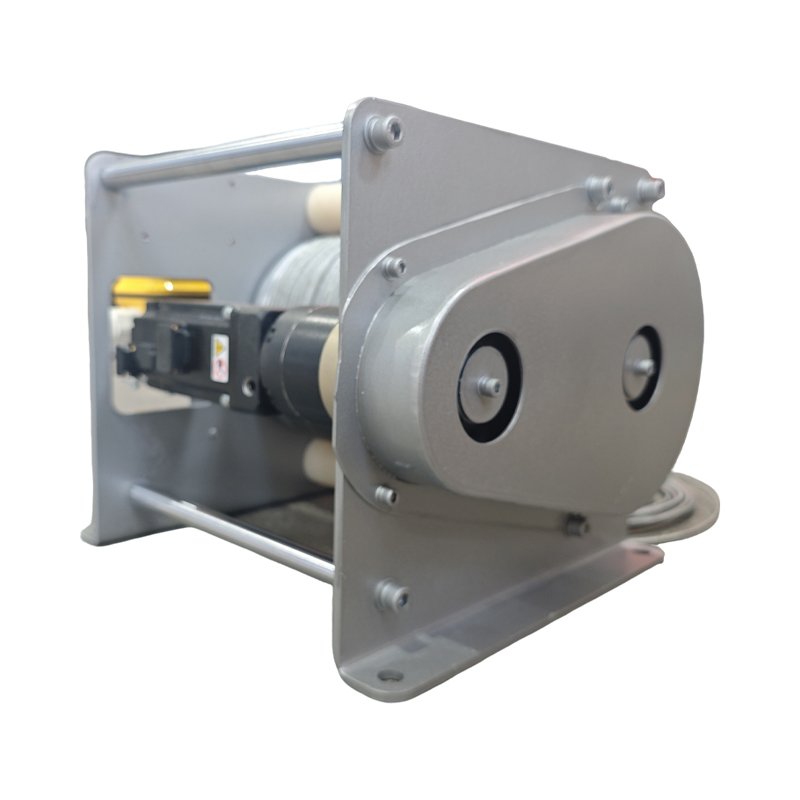

Servo electric winch is a kind of winch driven by servo motor, which can realize constant pulling force programming control. The whole machine adopts all-aluminum body with lightweight of only 40KG, equipped with direct cross shaft gearbox, featuring quietness and high efficiency. The photoelectric slip ring with special aviation connector ensures the safety and reliability of the product.

  1. Adopt servo motor drive: to achieve constant tension programming control, more accurate operation.
  2. Lightweight design with all-aluminum body: easy to carry and install.
  3. Equipped with direct cross shaft speed reducer: quiet and efficient, low noise and high efficiency during use.
  4. Optical slip ring with special aviation connector: ensure the safety and reliability of the product.
Servo electric winch manufacturers supply constant tension programming control aluminium alloy lightweight industrial winch - 1
Model:150KGMotor power:0.4KWRated tension:150KGRope Diameter:9mmReel speed:11.83 rpmAverage rope speed:5.65m/min
length of rope:10mOwn weight:40kg

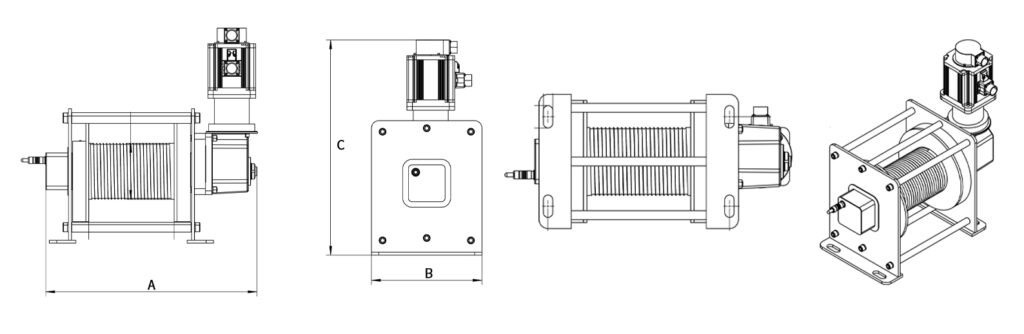

Model:150KGA(Length)574mmB(Width)300mmC(Height)584mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
