Small pneumatic lifting traction winch 50kg/150kg/300kg/500kg/1000kg can be customised

The pneumatic winch is a type of winch powered by compressed air, suitable for explosion-proof marine use or specialized applications.

  1. Compressed Air Power:Uses compressed air delivered through air pipes to drive the pneumatic motor, enabling lifting, lowering, and other winch functions.
  2. Compact and Lightweight:Features a small size, light weight, simple operation, and high safety and reliability. It has strong anti-corrosion properties to effectively protect internal components from corrosion.
  3. Wide Application: Widely used in mining, ports, ships, aerospace, and other fields. It is ideal for lifting, lowering, levelling, and transferring operations, making it an efficient, energy-saving, and safe type of winch.

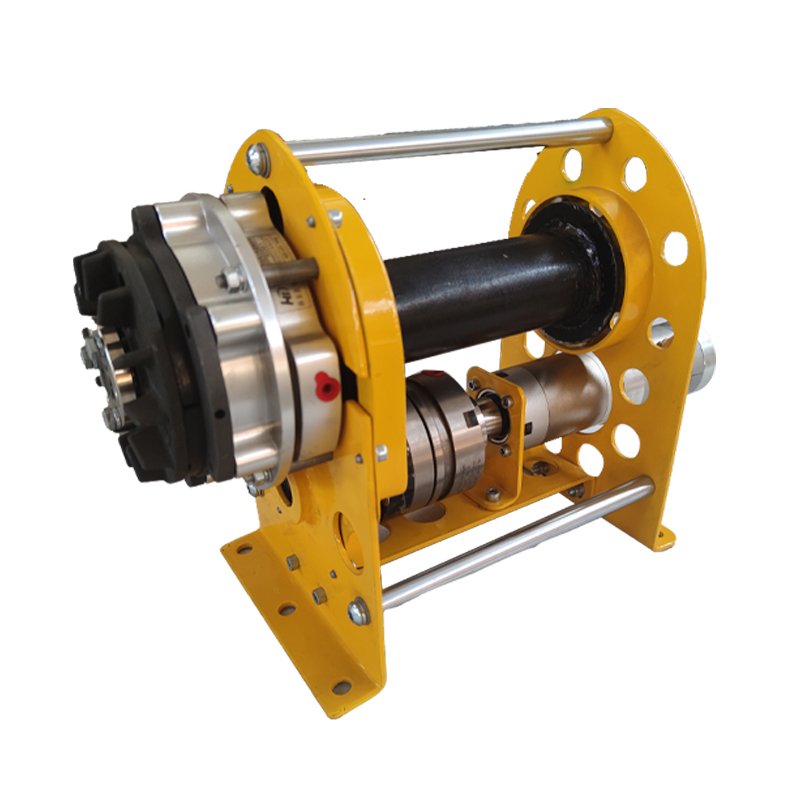

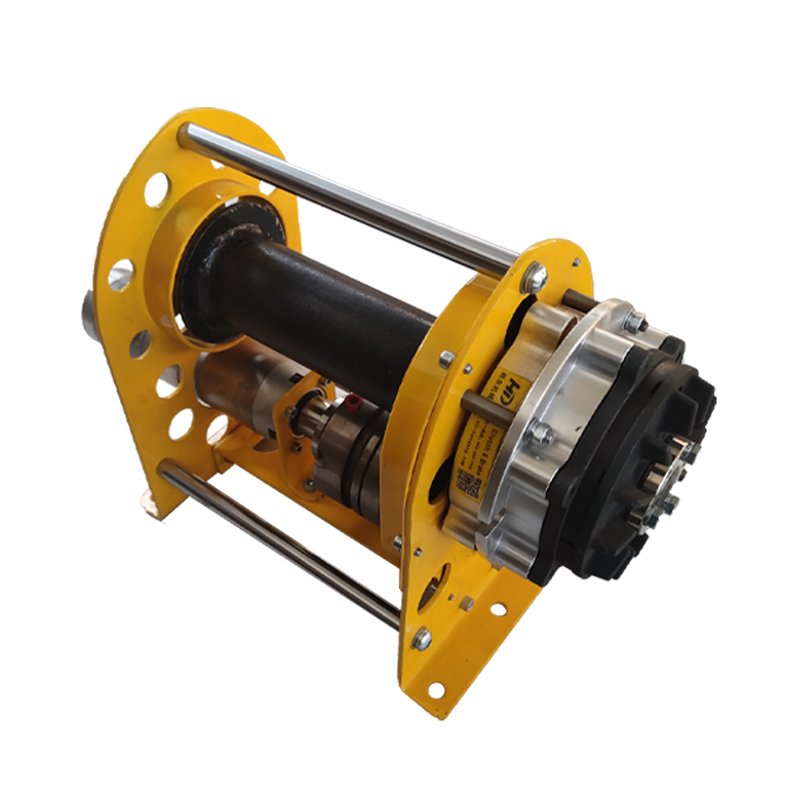

Small pneumatic lifting traction winch 50kg/150kg/300kg/500kg/1000kg can be customised - 1
Model:200 KGMotor power:0.4KWRated intake pressure:0.8MpaAir motor Maximum power Output torque:95N.m
Maximum power speed of the air motor:40rp/minLifting weight:100kgRope Diameter:4mmRope speed of the winch: 3m/min
Self-weight:25kgReel capacity:25m
Model:200 KGA(Length):437mmB(Width):180mmC(Height):285mm

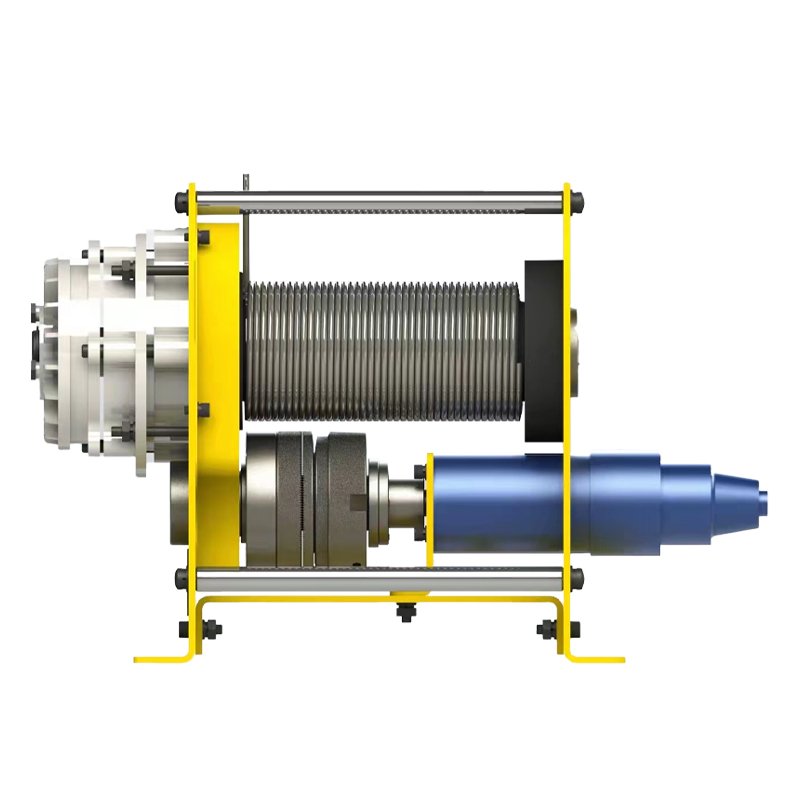

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
