Stage Flying Winch 450 kg | High-Speed Aerial Wire Winch for Theater & Live Events
Professional Flying Winch for Theater, Live Events and Stage Automation
The KLD Stage Flying Winch is a compact, high-speed, safety-engineered winch system designed specifically for theatrical aerial effects, performer flying, scenic movement and dynamic stage automation. With a robust mechanical structure, redundant safety features and precise motion control, this winch is an essential component for modern performance venues—from small theaters to large touring productions.
Designed for reliability, smooth operation and artistic flexibility, the system enables directors and rigging designers to create stunning aerial sequences with confidence.
1. Key Features & Safety Advantages
✔ Fail-Safe Gravity-Load Protection + Emergency Manual Release
The winch is equipped with a safety mechanism that prevents unintended load release under all conditions, including power loss.
An emergency manual switch provides backup operation during extreme situations—ensuring performer and equipment safety.
✔ Electromagnetic Brake System
A high-performance electromagnetic brake provides:
- Long-term holding capability under static load
- Zero drift and zero slip during performances
- Immediate stopping power for high-speed aerial cues
This ensures safe vertical movement even at high speeds.
✔ Mechanical Upper & Lower Limiters
Configurable mechanical limit switches allow precise preset of upper and lower travel boundaries, preventing:
- Over-travel
- Line slack or shock loading
- Accidental impact with rigging structures
Reliable for repetitive automated cues.

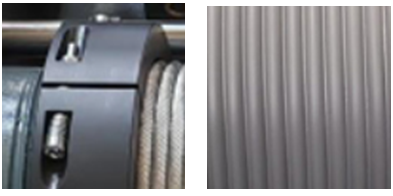

✔ Grooved Drum + Steel Rope Retainer Clamp
The grooved drum ensures neat, stable rope winding, while the retention clamp:
- Prevents rope jumping
- Eliminates cross-layer entanglement
- Keeps rope direction strictly aligned
Essential for flying performer systems or precise prop movement.
✔ Dual-Mode Operation: Wired + Wireless Control
Operators can switch between wired and wireless control depending on show conditions.
- Wireless mode enables flexible remote operation
- Wired mode ensures stable, interference-free control for critical cues
Supports integration with stage automation consoles and DMX-based systems.
2. Customization & Power Compatibility
The flying winch can be fully customized based on:
- Desired lifting speed
- Rope length
- Control strategy (manual, automated, DMX, PLC, cue lists)
- Mounting orientation
- Integration with existing stage machinery
Compatible with single-phase or three-phase AC power systems.
Single-phase 220V can be converted to three-phase using a frequency inverter—ideal for theaters with limited power supply options.
3. Technical Specifications (Reference Model – 450 kg)
| Item | Specification |
|---|---|
| Rated Load | 450 kg |
| Wire Rope Diameter | 8 mm |
| Motor Power | 11 kW |
| Rated Voltage | Single-phase 220V (convertible to 3-phase) |
| Average Rope Speed | 97 m/min (high-speed performance) |
| Rope Length | 38 m |
| Control Modes | Wired + Wireless |
| Safety Systems | Electromagnetic brake, mechanical limiters, rope retention clamp |
All configurations can be customized for performer flying, scenery movement or special aerial effects.
4. Typical Applications
✔ Performer Flying / Aerial Acrobatics
Smooth, fast and precise vertical movements for actors, dancers or acrobatic performers.
✔ Moving Scenic Elements
Raising and lowering props, curtains, scenic drops or dynamic set pieces.
✔ Automated Stage Effects
Integration with stage automation systems for programmed cues and synchronized movements.
✔ Touring Productions
Compact design suitable for transport and rapid setup in varying venues.

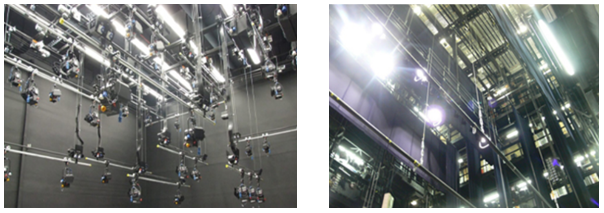

✔ Theaters, Concert Halls, Theme Parks
Reliable and safe for fixed installations requiring daily operation.
5. Why Choose KLD for Stage Winches
KLD (Beijing Tianheng Kairui Lifting Machinery Co., Ltd.) is a global provider of full-scenario winch solutions, with extensive experience in:
- Stage rigging & automation
- Industrial lifting systems
- Marine, energy and engineering sectors
Our Core Strengths
Engineering-Driven Customization
Custom solutions based on scene requirements, speed profiles, safety levels and integration needs.
ISO-Certified Quality Control
Industrial-grade reliability for mission-critical stage applications.
Rapid Design & Manufacturing
Short lead times and precise engineering support to keep your installation or tour on schedule.
Responsive Technical Support
Professional pre-sales consultation + after-sales remote assistance.
We ensure your stage automation system operates safely, smoothly and creatively.
6. Request a Technical Proposal or Quotation
Share your project details to receive:
- Engineering drawings (2D/3D)
- Suggested configuration and load analysis
- Integration plan with your stage automation system
- Delivery schedule and quotation
Please provide:
- Type of venue (theater, arena, touring, theme park)
- Load weight & movement speed requirements
- Rope length / travel distance
- Power availability
- Control integration needs (manual, wireless, DMX, PLC, show control)
- Safety certifications needed (EN17206, CE, etc.–if applicable)
Our engineering team will develop a tailored solution for your production.
