Stainless Steel Equipment-matching Winch

This product is a single-column industrial hoist used for lifting operations. It features a frame made of 316 stainless steel, which is corrosion-resistant and rust-proof, making it suitable for auxiliary detection equipment used in marine research.

  1. Utilizing an ultra-quiet industrial gear motor, capable of continuous operation over extended periods, providing stable and reliable performance.
  2. Supports synchronized operation of multiple units, enabling full payout and retrieve capabilities to enhance work efficiency.
  3. Equipped with stainless steel wire rope and a length counter, allowing real-time monitoring of payout distance to enhance operational precision.
  4. The motor can be configured to operate with either single-phase 220V or three-phase 380V power supply options, catering to different customer requirements and offering a more personalized choice.
Stainless Steel Equipment-matching Winch - 1
Model :500KGMotor power:1.5KW(1500rpm)Rated tension:500KGRope diameter:10mmDrum speed:22.3 rpmAverage rope speed:12.5m/min
Rope length:50m

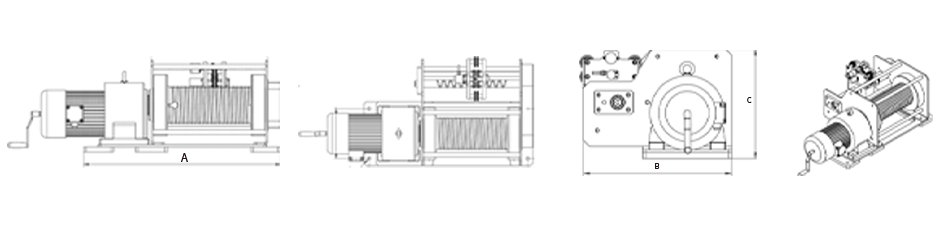

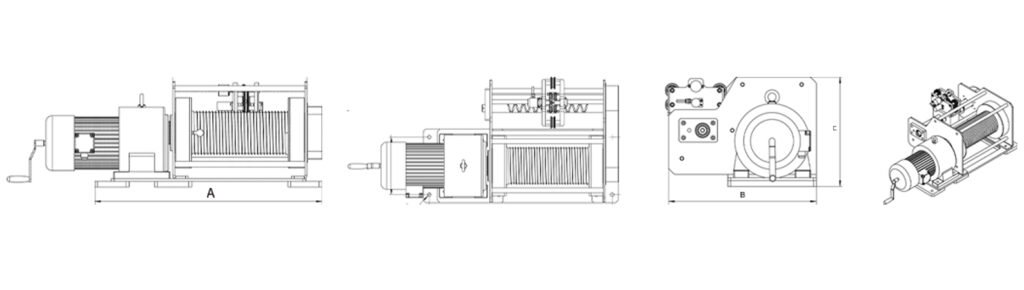

Model:500KGA(Length)798mmB(Width)500mmC(Height)465mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
