This dual-rope synchronous winch features advanced design and technology, equipped with a zoned automatic rope arranger for orderly rope arrangement. It offers both wired handle and wireless remote-control options for convenient operation. Additionally, it can be hand-cranked, providing a dual-mode function (manual and electric) for a user-friendly experience.

  1. Dual-rope synchronous winch: Ensures more stable and even rope winding, improving work efficiency.
  2. Zoned automatic rope arranger: Organizes ropes in an orderly manner, reducing the risk of rope tangling.
  3. Dual control modes: Wired handle and wireless remote-control options offer flexible and convenient operation, suitable for various work scenarios.
  4. Hand-cranked operation: Allows usage even without a power source.
  5. Side handles: Facilitates easy carrying and transportation.

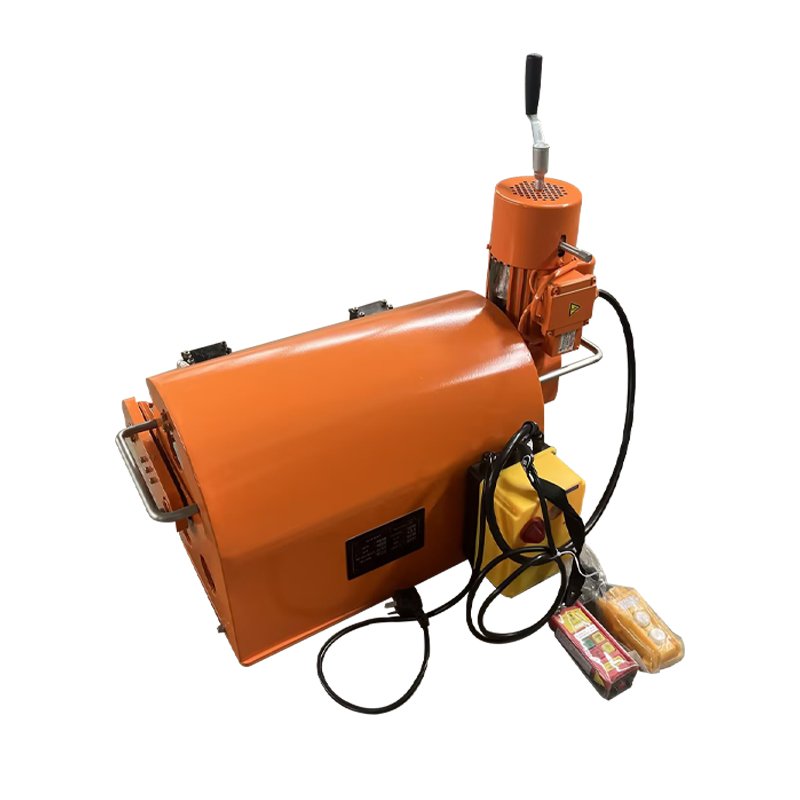

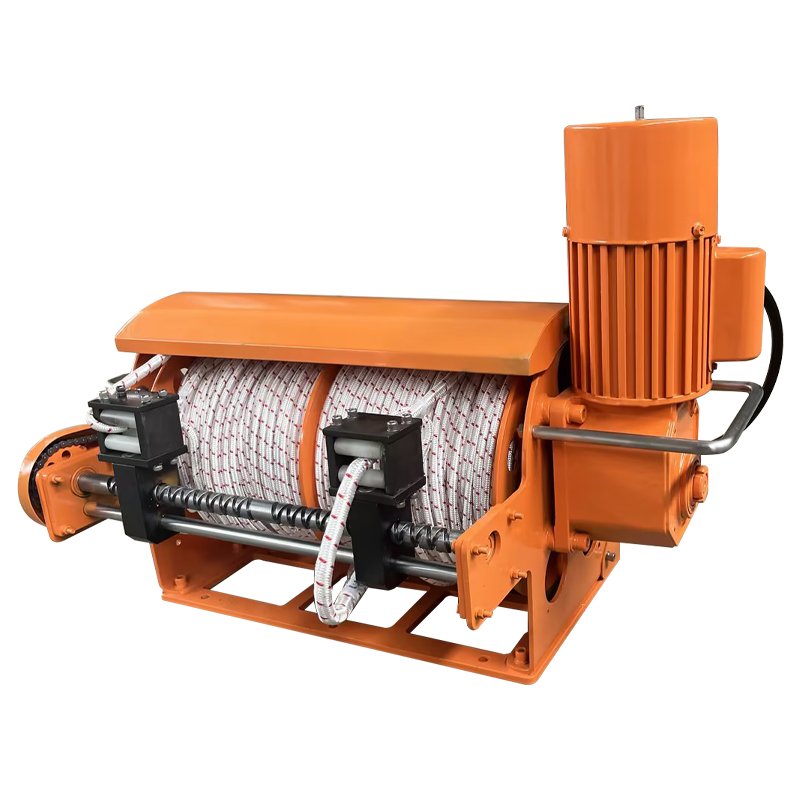

Synthetic Rope Electric WinchDouble Rope SynchronisedRemote Remote ControlManually Controllable Traction Electric Winch - 1
Model:50 KGMotor power:0.2 KWRope out speed:6-11m/minMotor reducer Rated output torque:90N.m
Reduction gear ratio:100:1Reducer Output Speed:15rp/minLifting weight:50 kgSelf-weight:55kg
Reel Diameter:121mmDiameter of Dyneema rope:8mmRope capacity per reel section:100m
Model:50 KGA(Length):649mmB(Width):280mmC(Height):541mm

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
