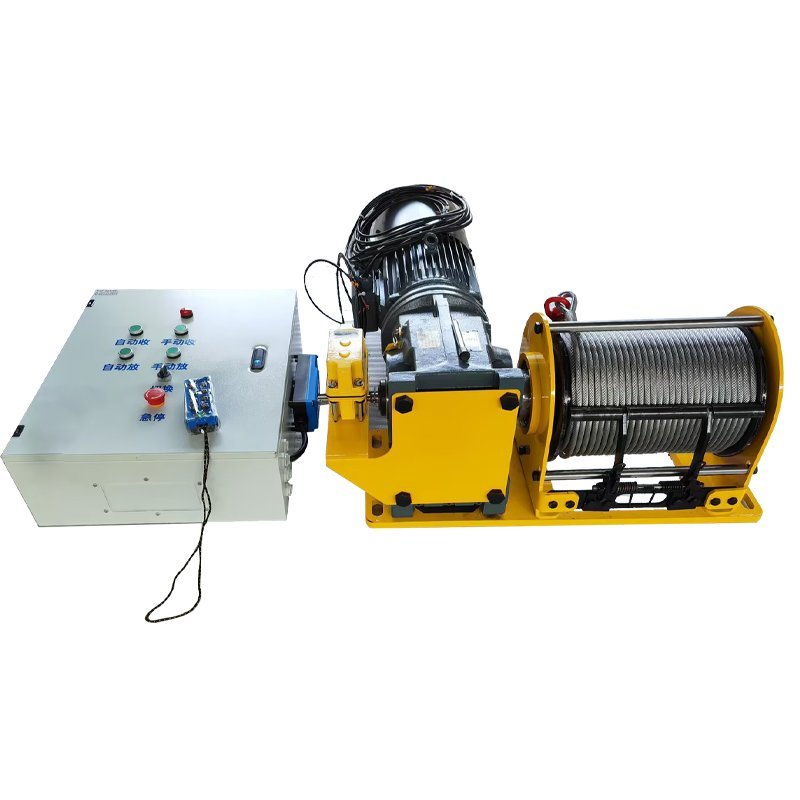

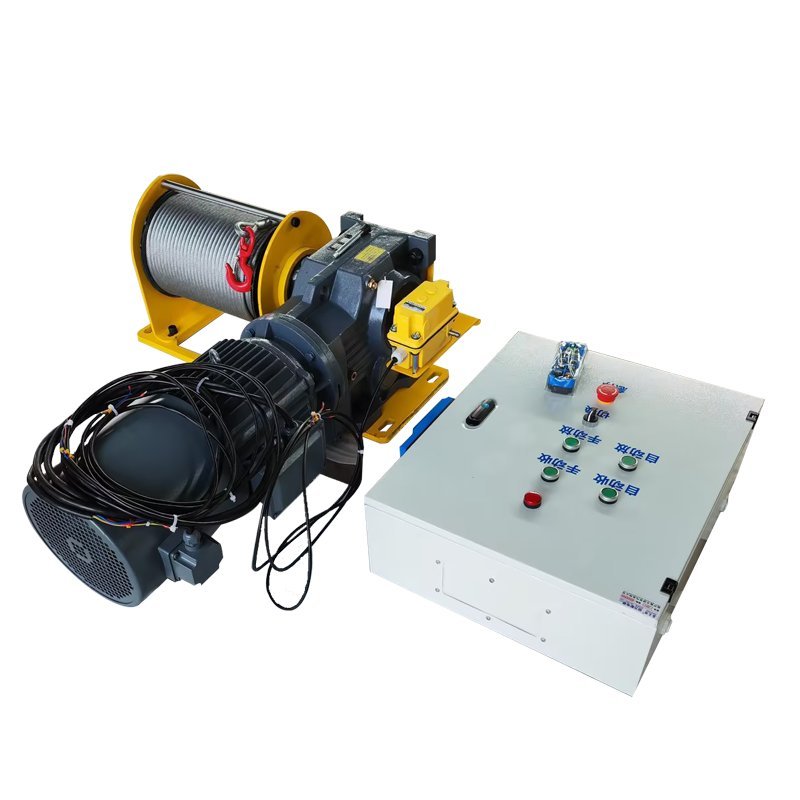

This traction winch is specifically designed for horizontal pulling in new energy vehicle (NEV) testing stations. In the event of a fire, it can swiftly tow the vehicle outside the fireproof gate, effectively reducing potential risks. Built with an industrial-grade gearbox, the winch operates quietly and efficiently, delivering stable performance with low failure rates, ensuring long-term reliable operation.
Design advantages:
Efficient & safe : Quickly pulls vehicles out of danger during fire emergencies, ensuring the safety of both personnel and assets.
Quiet & durable : Industrial gearbox design ensures low-noise, high-efficiency operation with long service life.
Low failure rate : Premium materials and precise engineering guarantee stable performance, minimizing downtime and maintenance.
Rope protection : Grooved drum prevents wire rope wear or breakage, extending service life.
Flexible options : Available with domestic or joint-venture brand motors to meet different quality and budget requirements.
Precision control : Standard four-point height limiter with optional absolute encoder for servo control, providing higher accuracy and operational safety.

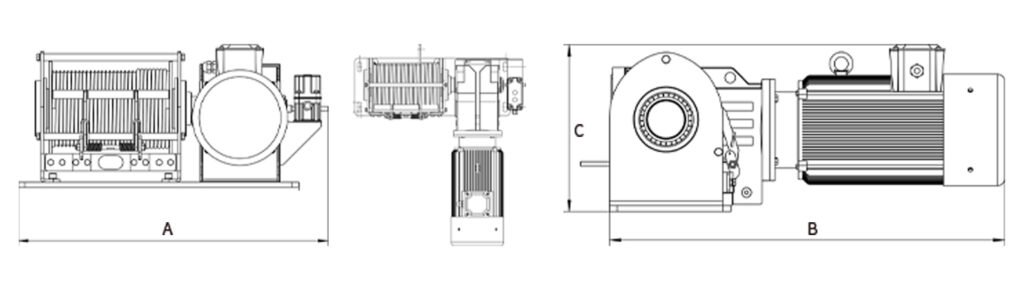

A two-dimensional drawing clearly presents the equipment’s layout and core structure.
This heavy-duty industrial traction winch is specially engineered for horizontal pulling applications, particularly in new energy vehicle (NEV) testing stations. In fire emergencies, it enables rapid towing of vehicles beyond the fireproof gate, significantly reducing risks to personnel and assets. Featuring an industrial-grade gearbox for quiet, efficient operation and exceptionally low failure rates, this electric traction winch delivers reliable long-term performance. With grooved drum rope protection and optional absolute encoder for servo control, it ensures precision, safety, and durability across demanding environments.
Key Features & Advantages
Emergency Rapid Towing: Designed for fast, powerful horizontal pulling – swiftly moves vehicles out of danger zones during NEV testing station fires, prioritizing safety and risk mitigation.
Quiet & Highly Durable: Industrial gearbox delivers low-noise operation, high efficiency, and extended service life for continuous heavy-duty use.
Low Failure Rate: Built with premium materials and precision engineering for stable, reliable performance with minimal downtime and maintenance needs.
Advanced Rope Protection: Grooved drum design prevents wire rope wear, jumping, or breakage, significantly extending rope lifespan and operational safety.
Flexible Motor Options: Choice of domestic or joint-venture brand motors to suit various quality levels and budget requirements.
Precision Control System: Standard four-point height limiter, with optional absolute encoder enabling servo control winch functionality for superior accuracy, positioning, and enhanced operational safety.
Robust & Versatile: Compact structure suitable for harsh environments; optional configurations available (e.g., waterproof traction winch variants for dusty or wet conditions).
Technical Specifications
Parameter
Specification
Load Capacity
100kg - 10000kg
Rated Voltage
220V / 380V (customizable)
Drive System
Industrial-Grade Gearbox + Electric Motor
Drum Type
Grooved Drum with Rope Protection
Pulling Speed
5-20 m/min (adjustable based on load)
Control System
Standard four-point height limiter; optional absolute encoder for servo control
The parameters provide a quick understanding of the equipment’s performance range and configuration features.
Model：1000KG
Motor power：5.5KW
Rated tension：1000KG
Cable diameter：10mm
Drum rotation speed：30rpm
Average rope speed：22.52m/min
Rope length：20m
Rope capacity：40m
Model：1000KG
A（Length）895mm
B（Width）977mm
C（Height）415mm
Applications
NEV Testing Stations (Primary): Fire emergency vehicle recovery – rapid horizontal towing to safety zones, ensuring compliance with fire safety protocols.
Mining & Underground Operations: Horizontal material hauling, equipment recovery, and personnel evacuation in confined spaces.
Construction & Engineering: Site material pulling, temporary structure positioning, and heavy equipment relocation with precise control.
Special & Rescue Equipment: Emergency vehicle/equipment extraction in disaster scenarios, firefighting support, and high-risk recovery operations – reliable performance when safety is critical.
Why Choose Our Industrial Traction Winch?
Unmatched Emergency Safety: Purpose-built for NEV fire scenarios – faster, safer vehicle evacuation compared to standard winches.
Proven Reliability: Industrial-grade construction with low failure rates ensures years of trouble-free operation and reduced maintenance costs.
Superior Precision & Flexibility: Optional servo control winch upgrade via absolute encoder provides high-accuracy positioning not found in conventional pulling winches.
Cost-Effective Customization: Multiple motor brands and configuration options let you balance performance, durability, and budget perfectly.
Get a quote or discuss custom requirements today! Global shipping available with 24/7 technical support. Discover more about our electric traction winch solutions for fire safety and heavy-duty pulling – contact us now.
