Turbine-Type Industrial Winch

This is a turbo industrial hoist that uses an all aluminum reduction motor to make its weight lighter. Equipped with a mechanical height limiter, it can be adjusted to stop at any position. The overall treatment adopts the galvanizing process, which has the characteristics of anti-corrosion and cleanliness. It has a carrying capacity of 320 kilograms, and of course, other specifications can be customized according to customer needs, such as 500 kilograms, 1 ton, 2 tons, 3 tons, 5 tons, 10 tons, etc. It can be customized in terms of load capacity, rope length, rope speed, and usage. The power supply can be single-phase or three-phase, which meets the power supply standards of various countries.

  1. The all-aluminum gear motor makes the machine lighter in weight, making it easier to carry and operate.
  2. The mechanical height limiter allows flexible adjustment of the stop position, enhancing ease of use.
  3. The galvanizing process provides corrosion resistance and a clean finish, extending the product's service life.
  4. The steel wire rope is equipped with a swivel hook, which helps prevent tangling and improves operational efficiency.
Model:320kgRated pulling force:350kgWire rope diameter:6mmMotor power:1.5kw
Lifting stroke:30mDrum speed:23.67rpmAverage rope speed:7.5m/min
ModelA(Length)B(Width)C(Height)
320kg677mm355mm665mm

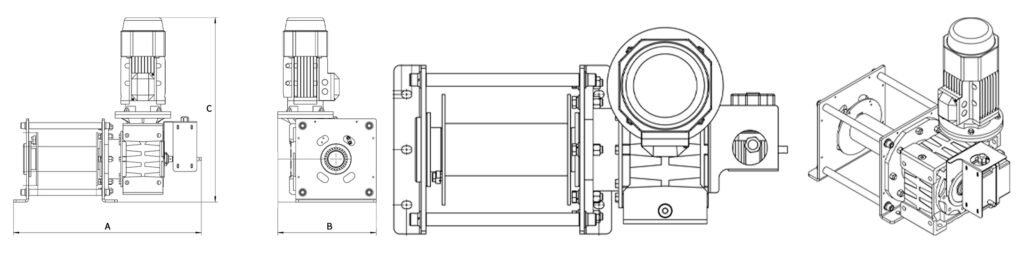

The above shows only the case design drawings and parameter lists, customers can customize the product according to their specific needs in terms of load, speed, rope length, control mode, rope out direction, material and so on. Customers can communicate with our engineers based on their specific usage scenarios, and further design and configure the product’s protective performance, durability, safety, and other aspects.
