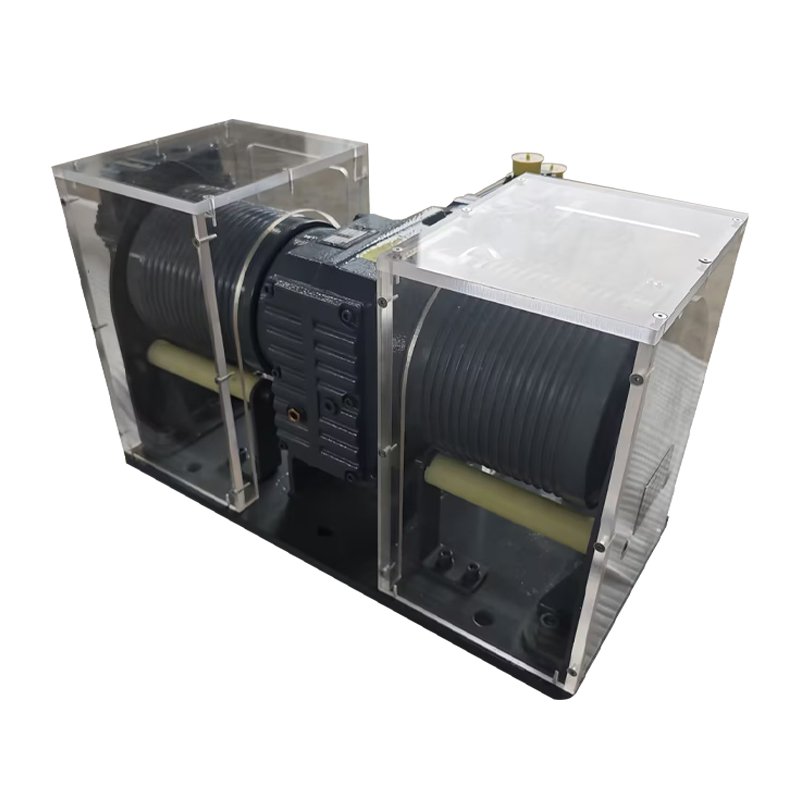

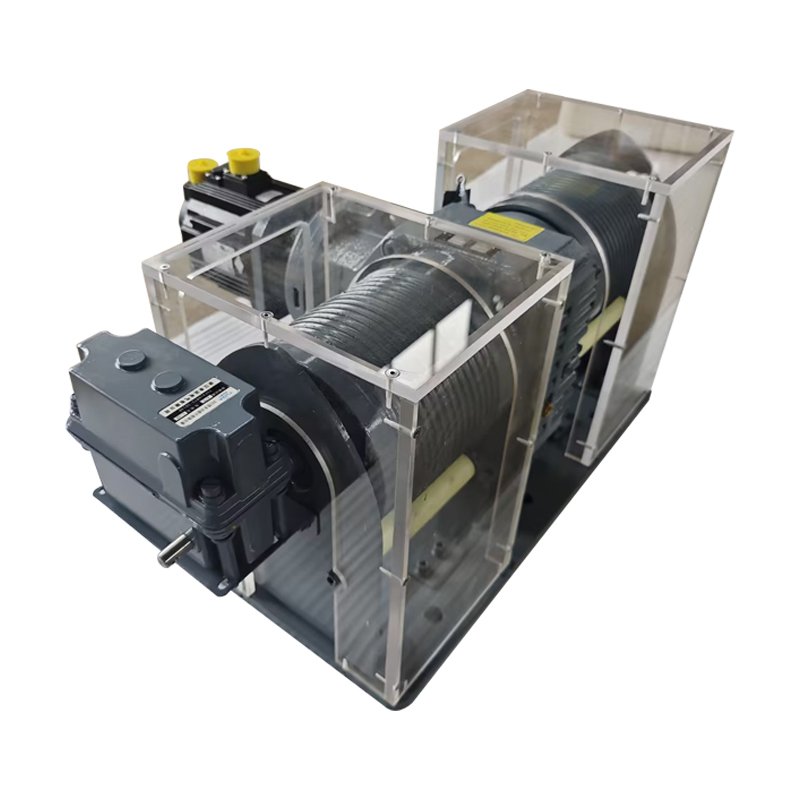

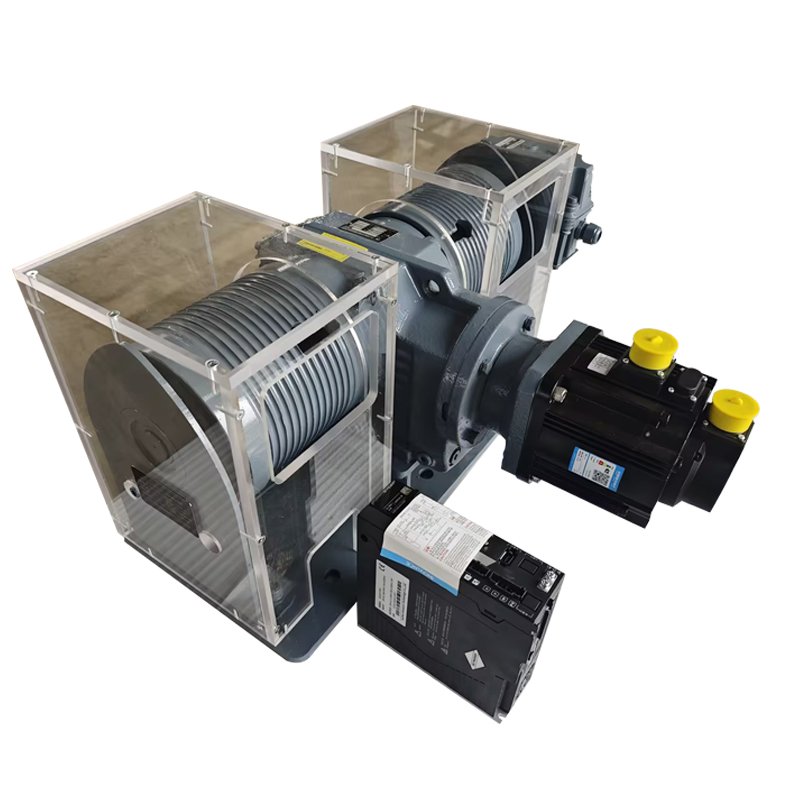

This dual-drum servo winch is specially designed for workshop equipment applications. It is equipped with a servo brake motor and PLC control system, enabling precise positioning and flexible operation. The device features an acrylic transparent protective cover, allowing continuous observation of its operating status. It is suitable for various traction and lifting scenarios and supports customization of rated load, rope length, and rope speed. Users can also specify additional requirements for protection, durability, and safety according to actual working conditions, achieving a configuration that better meets their needs.

Design advantages:

1. Equipped with a programmable servo brake motor, providing constant torque output with freely adjustable speed within the range, ensuring precise positioning.

2. Fitted with a K-series hardened gear reducer, ensuring quiet and efficient operation, enhancing work efficiency.

3. Dual-side grooved drums support dual-rope synchronous winding and unwinding, ensuring safer operation.

4. Equipped with wire rope press rollers to effectively prevent rope derailment and extend wire rope service life.

5. Mechanical height limiter supports four-position settings, allowing operators flexible control over stopping positions.

6. Drum fitted with an acrylic protective cover to prevent foreign object interference, further extending equipment lifespan.
