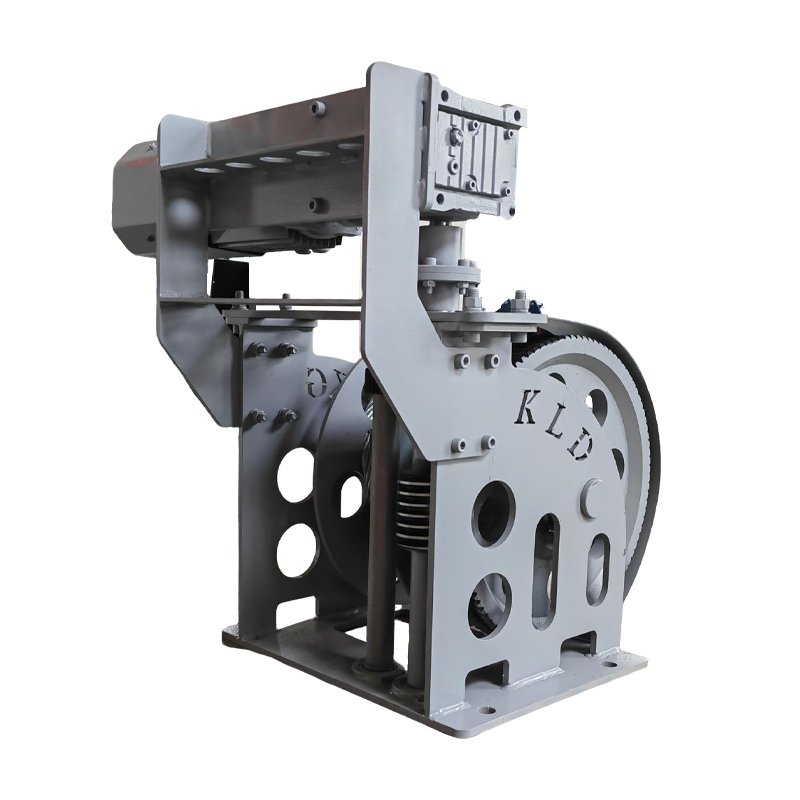

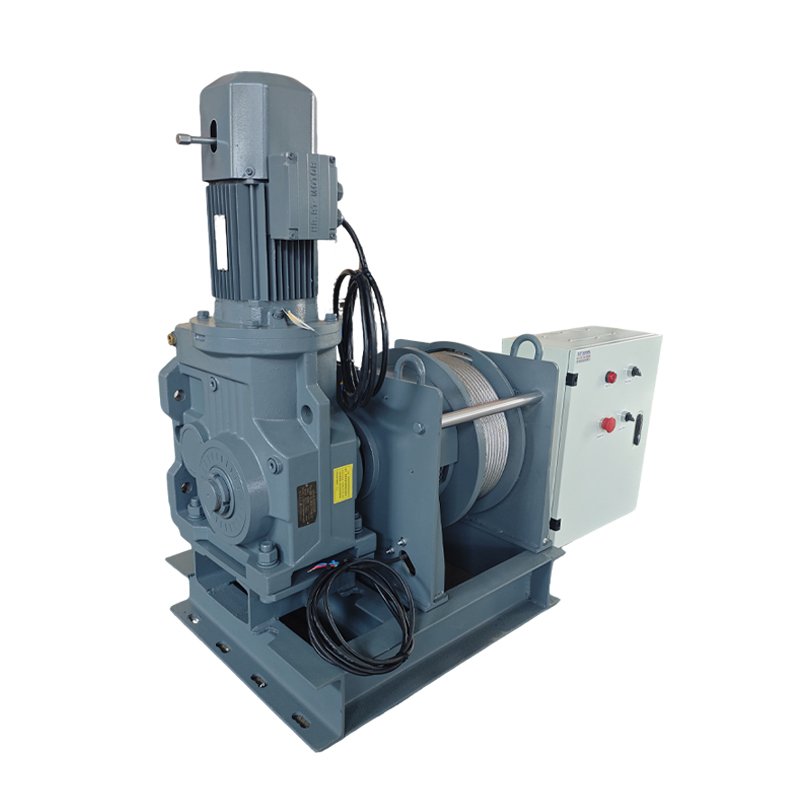

Direct Drive Test Winch with Load Cell

Engineered for heavy lifting and load-testing duties from 200 to 300 kN (≈ 20–30 tons). Direct-drive worm gear reducer with a variable-frequency motor and brake provides low-speed, adjustable operation, while the load cell supports precise load monitoring. 7.5 kW drive, rope capacities up to 65 m. Parameters are configured around your project.

Quick Specs

Lifting capacity: 200 / 300 kN (≈ 20 / 30 t)
Rope speed: 1.5 / 1 m/min (adjustable)
Motor: 7.5 kW VFD motor with brake
Rope: Ø24 / Ø28 mm
Control: VFD cabinet + adjustable-speed remote

Application Scenarios and Applicable Boundaries

- Heavy lifting & positioning — controlled lifting of heavy equipment and structures (20–30 ton class) at creep speed for precise placement.
- Load testing & structural verification — ultra-low-speed pulling (1–1.5 m/min) with load cell feedback supports controlled load application for test rigs and structural verification.
- Renewable-energy projects — lifting and installation duties at wind, solar and energy-storage sites, where speed adjustability and precise load monitoring support safe erection work.
- Heavy traction & hauling — slow, high-force pulling of heavy loads over short distances with full-speed control from the remote.

Boundary: Loads, rope configurations and duty cycles are engineered per project. The winch is not intended for personnel lifting. Confirm the application, rope arrangement and environment before ordering.

Features Benefits

1.Low-speed, low-noise drive — The direct-drive worm gear reducer provides high reduction (up to 1046:1) in a compact train, supporting smooth, quiet operation at creep speed with reduced energy demand at rated duty.
2.Low-speed, low-noise drive — The direct-drive worm gear reducer provides high reduction (up to 1046:1) in a compact train, supporting smooth, quiet operation at creep speed with reduced energy demand at rated duty.
3.Low-speed, low-noise drive — The direct-drive worm gear reducer provides high reduction (up to 1046:1) in a compact train, supporting smooth, quiet operation at creep speed with reduced energy demand at rated duty.
4.Precise load monitoring — The load cell provides real-time load feedback, supporting precise control of applied force during lifting and load-test sequences.

Complete Technical Specifications

Direct Drive Industrial Winch 200-300KN VFD with Load Cell | KLD - 1

Model	Motor power	Rope payout speed	Motor reducer Rated output Torque	Reduction gear ratio	Reducer output speed	Lifting weight	Self-weight	Wire rope diameter	Drum rope capacity
200KN	7.5KW	1.5m/min	2429N.m	561:1	2.6rp/min	200KN	2300kg	24mm	65m
300KN	7.5KW	1m/min	45670N.m	1046:1	1.4rp/min	300KN	3100kg	28mm	36m

Model	A（Length）	B（Width）	C（Height）
200KN	1600mm	1900mm	816mm
300KN	1650mm	2100mm	900mm

Size Installation and System Interface

The winch is supplied on a thick steel base plate with 6–9 pre-drilled Ø39 mm mounting holes for floor fixing. Overall dimensions, rope exit direction, pulley and hook arrangement are confirmed on the general arrangement drawing after configuration approval.

Available interfaces include: VFD control cabinet, adjustable-speed remote, load cell signal output, brake control, limit switch contacts (optional) and PLC communication (optional). Electrical interfaces are defined in the final wiring diagram.

Control Safety and Protection

- Normal control: VFD cabinet with adjustable-speed remote; rope speed adjustable from the operating position.
- Load monitoring: load cell provides real-time load feedback to the operator and control system.
- Stopping & holding: motor brake provides braking on stop and holding when powered down; stop positions defined in the control scheme.
- Protection: limit switch contacts available as an option; over-load behavior confirmed in the control scheme per project.
- Environment: confirm enclosure rating, temperature range and site conditions before ordering.

Standard vs optional items are confirmed on the control scheme for each order.

Customization Options and Engineering Process

Configured around your operating conditions — Share the required lifting load, rope travel and diameter, operating speed, duty cycle, power supply, installation envelope and environment. KLD will review the application and provide a proposed configuration, technical drawing and quotation for approval.
Requirements → Concept → Drawing & Quotation → Approval → Production & Test → Delivery

Standards Testing and Quality

The company operates an ISO 9001 quality management system. CE conformity documents (LVD, EMC) are available for applicable configurations on request.

Factory testing follows the approved technical specification for each configured unit and may include: no-load run, rated-load operation, brake function, speed-adjustment and load-cell verification. Available documentation may include dimensional drawings, electrical diagrams, inspection records and functional test results, depending on project scope.

Engineering Cases

Challenge: A renewable-energy project required heavy lifting of equipment (20–30 ton class) with precise placement at low speed and real-time load monitoring during installation.
Solution: A direct-drive industrial winch (200/300 kN class) with VFD motor and brake, worm gear reducer, load cell and adjustable-speed remote, configured to the project rope arrangement.
Outcome: The winch passed the customer's functional acceptance procedure for the planned lifting duties.

Technical Data Download

Downloads:
- Product Datasheet (PDF)
- General Arrangement Drawing (PDF)
- Installation & Operation Manual (PDF)
- Request CAD / Electrical Drawing

Delivery Packaging and Lifecycle Support

Most winches are custom-made products; lead time is confirmed after technical approval and order review. Project support can include configuration review, drawing approval, factory testing, export packaging, remote commissioning support and recommended spare parts. On-site measurement and installation support are available for applicable projects.
