Friction Winch 1500kg VFD Speed Control Dual Drum Groove | KLD

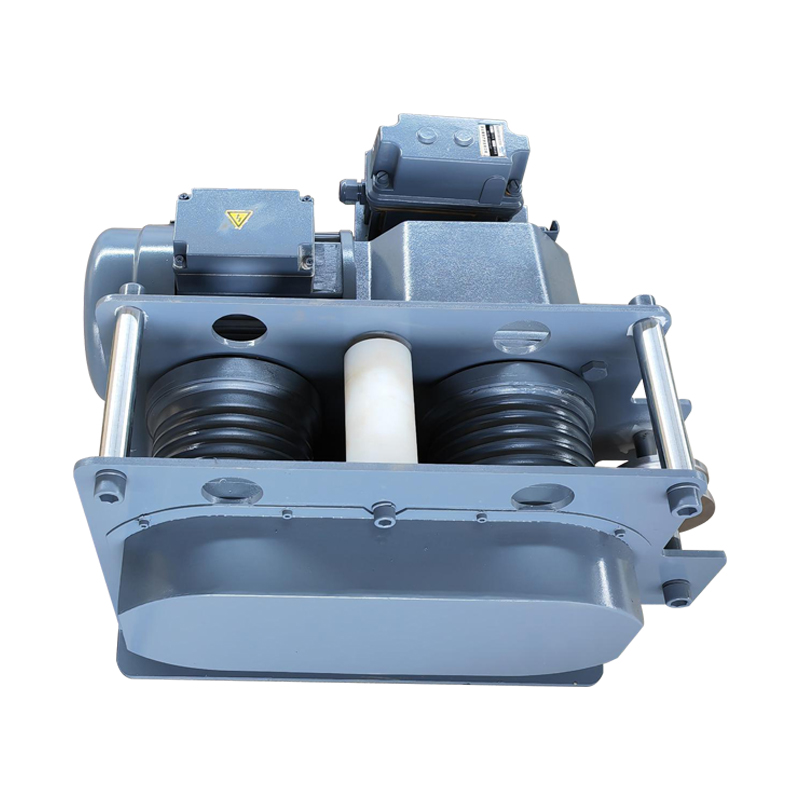

A friction winch for reciprocating haulage applications, fitted with a VFD motor and an electromagnetic brake for precise travel and accurate positioning. Variable-speed control delivers smooth start and stop, while the dual-drum rope groove design and mechanical limit switch support reliable friction-type running with adjustable stopping positions.

Quick Specs

Rated pull: 1500 kg          |  Motor: 1.5 kW (VFD)
Wire rope dia.: Ø12 mm       |  Drum speed: 9 rpm
Average rope speed: 4.58 m/min |  Speed control: VFD, 0–5 m/min range
Brake: electromagnetic       |  Limit: mechanical limit switch

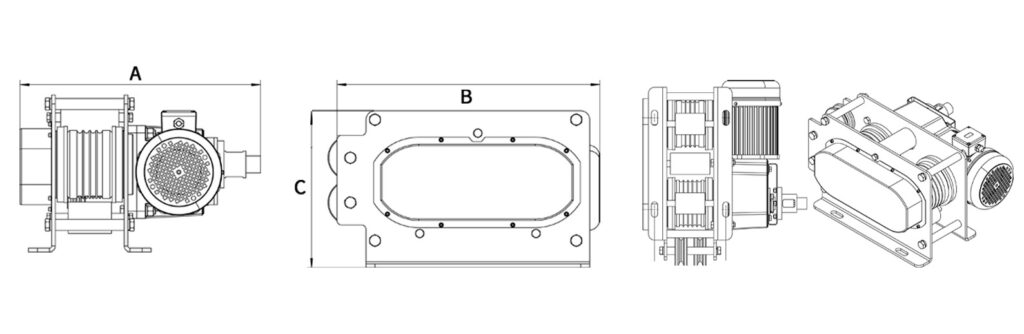

Dimensions (L×W×H): 551 × 523 × 380 mm

Application Scenarios and Applicable Boundaries

- Reciprocating haulage — traction duties requiring repeated forward and reverse travel.
- Positioned stopping — mechanical limit switch sets the stop position per site requirements to help avoid over-travel and collision.
- Variable-speed processes — VFD control adjusts rope speed to suit each stage of the operation.
- Rail or trolley travel — suitable for guided transfer and trolley haulage layouts.

Boundary: Rated pull, duty and rope specification must be confirmed against the actual application and the case drawing. Standard configurations are not intended for personnel lifting.

Features Benefits

Smooth travel — VFD speed control provides smooth running with soft start and soft stop.
Designed for friction duty — the dual-drum rope groove design provides ample drive for friction-type running and helps prevent rope slipping.
Better accuracy — multiple rope grooves improve accuracy and precision and help reduce rope wear.
Adjustable stopping — the mechanical limit switch sets the stop position according to site requirements to help avoid over-travel and collision, improving safety and efficiency.

Complete Technical Specifications

Size Installation and System Interface

Outline dimensions (case): 551 × 523 × 380 mm (L × W × H).
Mounting: base frame fixing; mounting method and rope exit direction configurable.
Interface: VFD motor supply; mechanical limit switch for adjustable stop position; options include encoder with main-shaft limit switch, limit switch, slack-rope switch, pendant remote control.
Reference the case drawing in the attachment for the site layout.

Control Safety and Protection

- VFD speed control for smooth travel with soft start and soft stop.
- Electromagnetic brake for holding and positioning.
- Mechanical limit switch with adjustable stop position to help prevent over-travel and collision.
- Dual-drum rope groove design to reduce rope slipping in friction operation.
- Optional safety & control items: encoder with main-shaft limit switch, limit switch, slack-rope switch, manual emergency crank, pendant remote control, pulley.
- Personnel lifting is excluded from standard configurations.

Customization Options and Engineering Process

Configured around your operating conditions — Share the required line pull, rope travel and diameter, operating speed, duty cycle, power supply, installation envelope and environment. KLD will review the application and provide a proposed configuration, technical drawing and quotation for approval. Free 3D design models are provided for different scenarios.
Requirements → Concept → Drawing & Quotation → Approval → Production & Test → Delivery

Standards Testing and Quality

The company operates an ISO 9001 quality management system. CE conformity documents (LVD, EMC) are available for applicable configurations on request.

Factory testing follows the approved technical specification for each configured unit and may include: no-load run, rated-load operation, brake function, independent-motor control verification, limit and encoder function checks. Available documentation may include dimensional drawings, electrical diagrams, inspection records and functional test results, depending on project scope.

Engineering Cases

friction winch for reciprocating haulage (case: 1500 kg rated pull, 1.5 kW VFD motor, wire rope Ø12 mm, drum speed 9 rpm, average rope speed 4.58 m/min, electromagnetic brake, mechanical limit switch, 551 × 523 × 380 mm). Customer details are anonymized per confidentiality requirements.

Technical Data Download

Downloads:
- Product Datasheet (PDF)
- General Arrangement Drawing (PDF)
- Installation & Operation Manual (PDF)
- Request CAD / Electrical Drawing

Delivery Packaging and Lifecycle Support

Most winches are custom-made products; lead time is confirmed after technical approval and order review. Project support can include configuration review, drawing approval, factory testing, export packaging, remote commissioning support and recommended spare parts. On-site measurement and installation support are available for applicable projects.
