Marine Shore Power Cable Winch Double Drum K-Series Motor | KLD

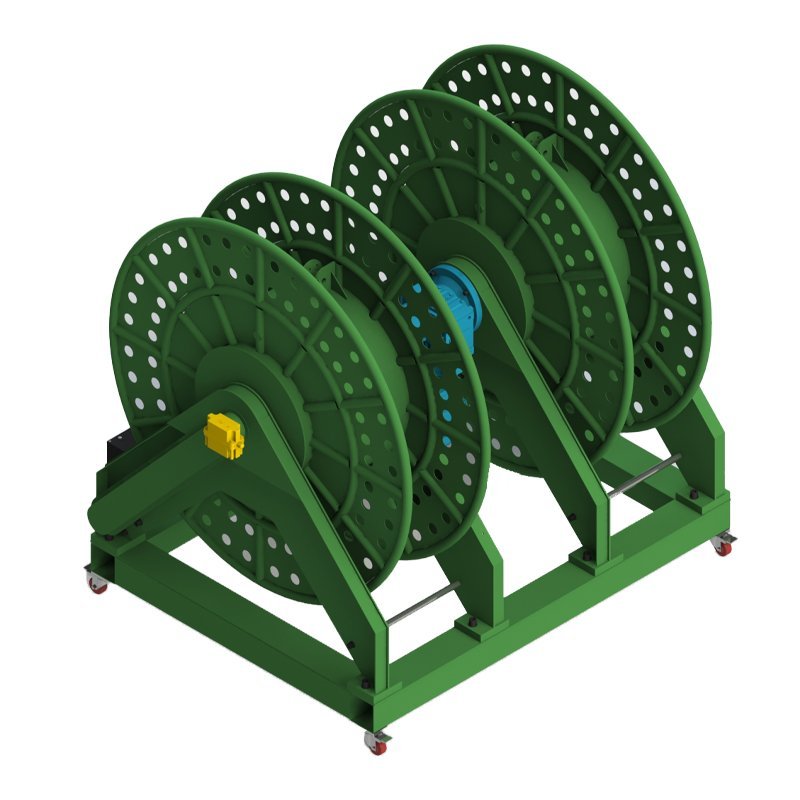

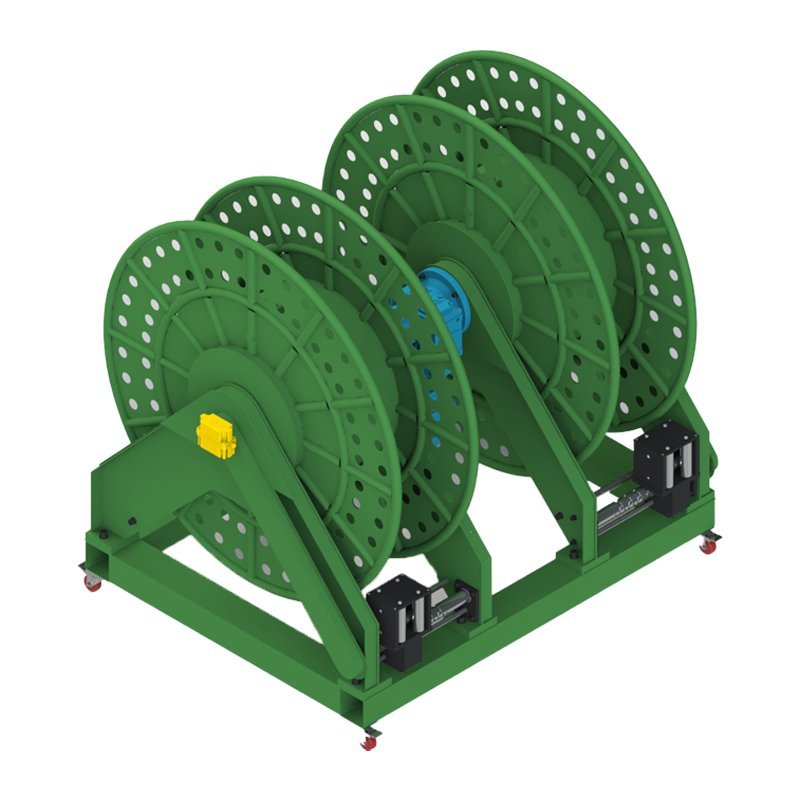

A specialized device for the storage and management of ship-to-shore power cables. The double-drum marine winch is driven by a K-series geared motor for smooth, efficient running; a high-power alloy slip ring supports equipment stability; a reciprocating lead-screw level wind spools the cable in order; and a mobile caster base allows flexible deployment across sites.

Quick Specs

Case cable dia.: Ø52 mm | Drum capacity: 120 m
Lifting weight (case): 125 kg
Motor: 0.55 kW | Reducer ratio: 154.02:1 | Output: 5.7 r/min
Rope speed: 24.5 m/min
Machine weight: 1260 kg
Dimensions (L×W×H): 2078 × 1600 × 2064 mm

Application Scenarios and Applicable Boundaries

- Ship-to-shore power supply — storage and management of shore power cables at berths, shipyards and repair docks.
- Cable deployment & recovery — controlled payout and retrieval of heavy Ø52 mm power cables (case).
- Shipbuilding & repair industry — cable handling where orderly spooling and mobility are required.
- Site flexibility — caster base allows the winch to be moved and deployed across different berths.

Boundary: The standard configuration is not intended for personnel lifting. Confirm cable diameter, length, load and site environment before ordering.

Features Benefits

Smooth, efficient running — the K-series geared motor runs smoothly and efficiently, stably storing ship-to-shore power cables and supporting cable safety and reliability.
Equipment stability — the high-power alloy slip ring supports safe and stable equipment operation, helping avoid damage or failure caused by cable pulling.
Equipment stability — the high-power alloy slip ring supports safe and stable equipment operation, helping avoid damage or failure caused by cable pulling.

Complete Technical Specifications

Size Installation and System Interface

Outline dimensions (case): 2078 × 1600 × 2064 mm (L × W × H).
Installation: heavy-duty base frame on caster wheels with brakes; fixed installation configurable on request.
Interface: K-series geared motor; high-power alloy slip ring for power pass-through; reciprocating lead-screw level wind; cable inlet per site requirement.

Control Safety and Protection

- K-series geared motor — smooth, efficient and stable running for shore power cable handling.
- High-power alloy slip ring — supports stable power transfer and helps avoid cable-pull damage.
- Reciprocating lead-screw level wind — orderly spooling prevents cable tangle.
- Optional safety & control packages — per use site: limit switch, encoder with main-shaft limit switch, pull-cord switch, lightning arrester, leakage breaker, manual emergency clutch, pendant remote control, control module with VFD; class certificates (LRS/BV/ABS/DNV GL) available (see Module 9).
- Personnel lifting is excluded from standard configurations.

Customization Options and Engineering Process

Configured around your operating conditions — Share the required line pull, rope travel, operating speed, duty cycle, power supply, installation envelope and environment. KLD will review the application and provide a proposed configuration, technical drawing and quotation for approval. Free design schematics are provided for different scenarios.

Requirements → Concept → Drawing & Quotation → Approval → Production & Test → Delivery

Standards Testing and Quality

The company operates an ISO 9001 quality management system. CE conformity documents (LVD, EMC) are available for applicable configurations on request. Classification certificates (e.g. LRS / BV / ABS / DNV GL) can be arranged as an optional item for marine applications.

Factory testing follows the approved technical specification for each configured unit and may include: no-load run, rated-load operation, brake function, limiter function and control verification. Available documentation may include dimensional drawings, electrical diagrams, inspection records and functional test results, depending on project scope.

Engineering Cases

Reference: double-drum marine shore power cable winch for ship-to-shore cable storage and management (case: Ø52 mm cable × 120 m, 0.55 kW, mobile caster deployment). Customer details are anonymized per confidentiality requirements.

Technical Data Download

Downloads:
- Product Datasheet (PDF)
- General Arrangement Drawing (PDF)
- Installation & Operation Manual (PDF)
- Request CAD / Electrical Drawing

Delivery Packaging and Lifecycle Support

Most winches are custom-made products; lead time is confirmed after technical approval and order review. Project support can include configuration review, drawing approval, factory testing, export packaging, remote commissioning support and recommended spare parts. On-site measurement and installation support are available for applicable projects.
